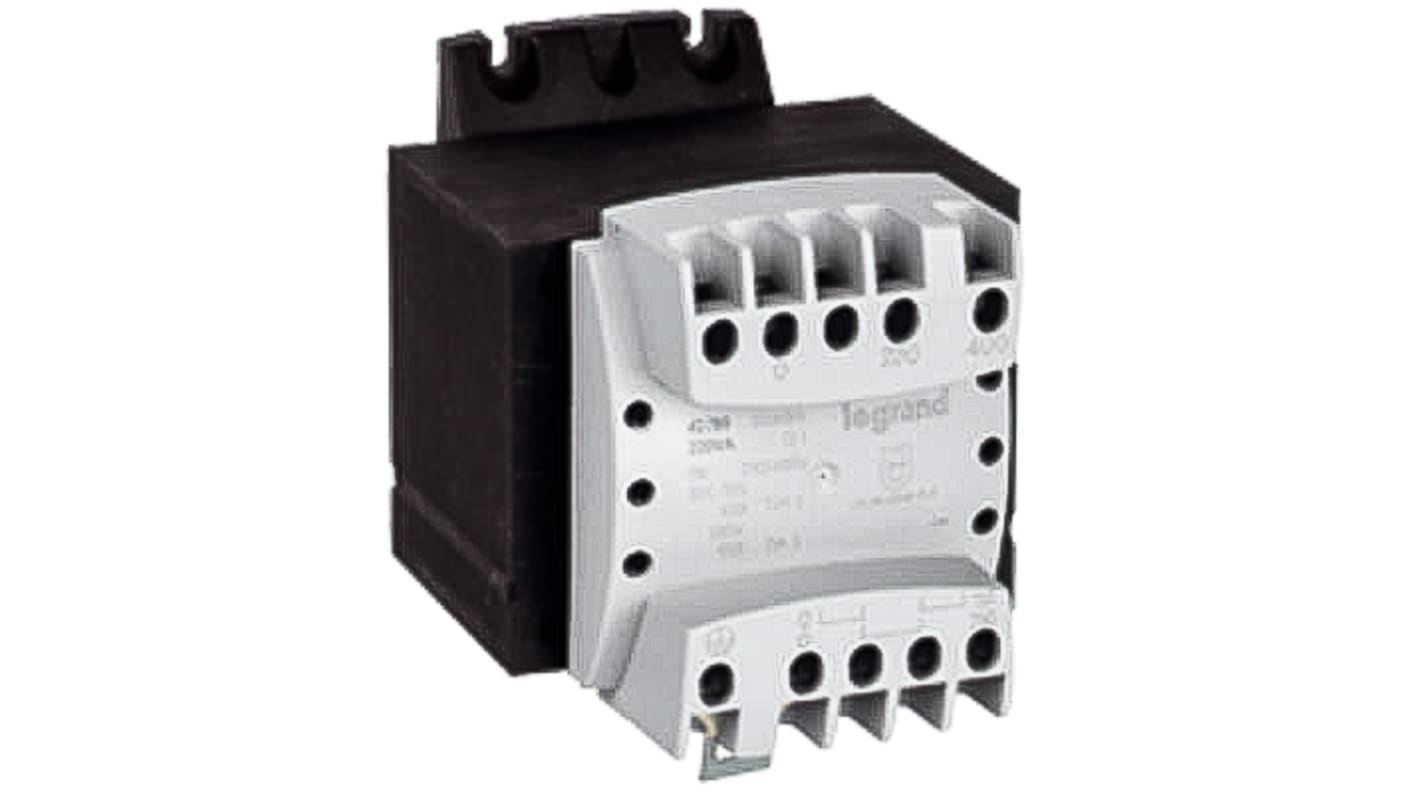

Legrand 63VA DIN Rail Transformer, 230 → 400V Primary, 115 → 230V Secondary
- RS Stock No.:
- 422-9659
- Mfr. Part No.:
- 0 427 86
- Brand:
- Legrand
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£86.25
(exc. VAT)
£103.50
(inc. VAT)
- RS Stock No.:
- 422-9659
- Mfr. Part No.:
- 0 427 86
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Primary Voltage Rating | 230 → 400V | |
| Secondary Voltage Rating | 115 → 230V | |
| Power Rating | 63VA | |
| Mounting Type | Panel | |
| Number of Outputs | 1 | |
| Length | 98mm | |
| Width | 84mm | |
| Depth | 77mm | |
| Dimensions | 98 x 84 x 77mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Temperature | +50°C | |
| Weight | 1.3kg | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Primary Voltage Rating 230 → 400V | ||
Secondary Voltage Rating 115 → 230V | ||
Power Rating 63VA | ||
Mounting Type Panel | ||
Number of Outputs 1 | ||
Length 98mm | ||
Width 84mm | ||
Depth 77mm | ||
Dimensions 98 x 84 x 77mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature +50°C | ||
Weight 1.3kg | ||
- COO (Country of Origin):
- FR
Control Panel Primary 230/400Vac (40 to 220VA)
Compact, open type control panel transformer
Fully shrouded screw terminals with permanent marking
Detailed product specification permanently marked on front of unit
VA ratings compatible with available protection devices
Dual standard primary winding 230 / 400Vac
Laminated
Note
Mounting clips are not supplied with these products. Transformers up to 160 VA can be clipped to DIN rail using accessory 0044 16, RS stock number 423-2201 or 620-3592 for higher values or directly fixed using screws through the easily accessible fixing points.
Standards
IEC/EN 61 558
