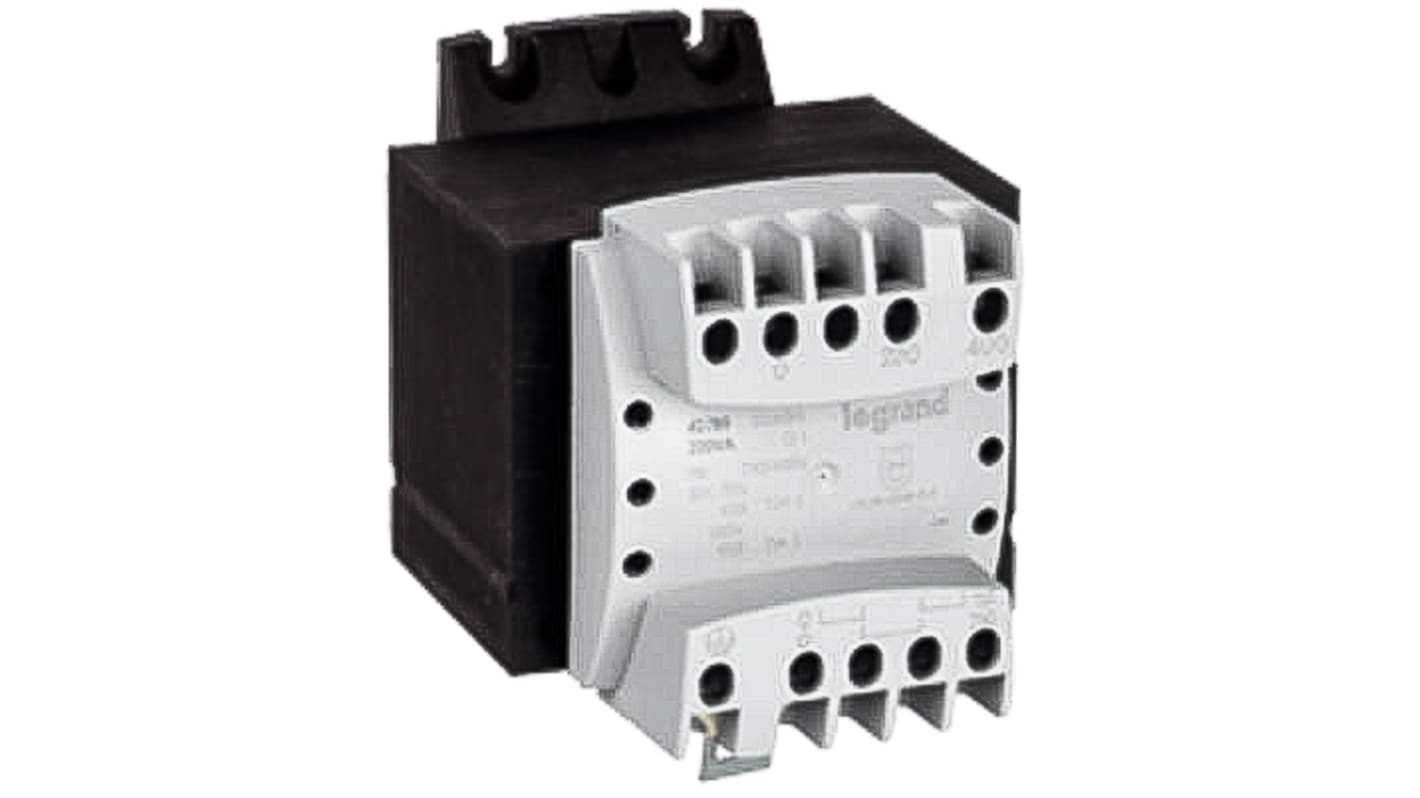

Legrand 40VA DIN Rail Transformer, 230 → 400V Primary, 115 → 230V Secondary

RS Stock No.:: 422-9643
Mfr. Part No.:: 0 427 85
Brand:: Legrand

Legrand 40VA DIN Rail Transformer, 230 → 400V Primary, 115 → 230V Secondary

Unavailable

RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

Legrand 40 VA DIN Rail Transformer, 400 V, 230 V Primary, 230 V, 115 V Secondary, IEC/BS EN 61558-2-4

RS Stock No.: 383-318

Each

£41.81

(exc. VAT)

£50.17

(inc. VAT)

RS Stock No.:: 422-9643
Mfr. Part No.:: 0 427 85
Brand:: Legrand

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Legrand
	Primary Voltage Rating	230 → 400V
	Secondary Voltage Rating	115 → 230V
	Power Rating	40VA
	Mounting Type	DIN Rail, Panel
	Number of Outputs	1
	Length	98mm
	Width	84mm
	Depth	70mm
	Dimensions	98 x 84 x 70mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Maximum Temperature	+50°C
	Weight	1kg

	Select all
	Brand Legrand
	Primary Voltage Rating 230 → 400V
	Secondary Voltage Rating 115 → 230V
	Power Rating 40VA
	Mounting Type DIN Rail, Panel
	Number of Outputs 1
	Length 98mm
	Width 84mm
	Depth 70mm
	Dimensions 98 x 84 x 70mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Maximum Temperature +50°C
	Weight 1kg

Single Phase Equipment Transformers Data Sheet

COO (Country of Origin):: FR

Control Panel Primary 230/400Vac (40 to 220VA)

Compact, open type control panel transformer

Fully shrouded screw terminals with permanent marking

Detailed product specification permanently marked on front of unit

VA ratings compatible with available protection devices

Dual standard primary winding 230 / 400Vac

Laminated

Note

Mounting clips are not supplied with these products. Transformers up to 160 VA can be clipped to DIN rail using accessory 0044 16, RS stock number 423-2201 or 620-3592 for higher values or directly fixed using screws through the easily accessible fixing points.

Standards

IEC/EN 61 558
