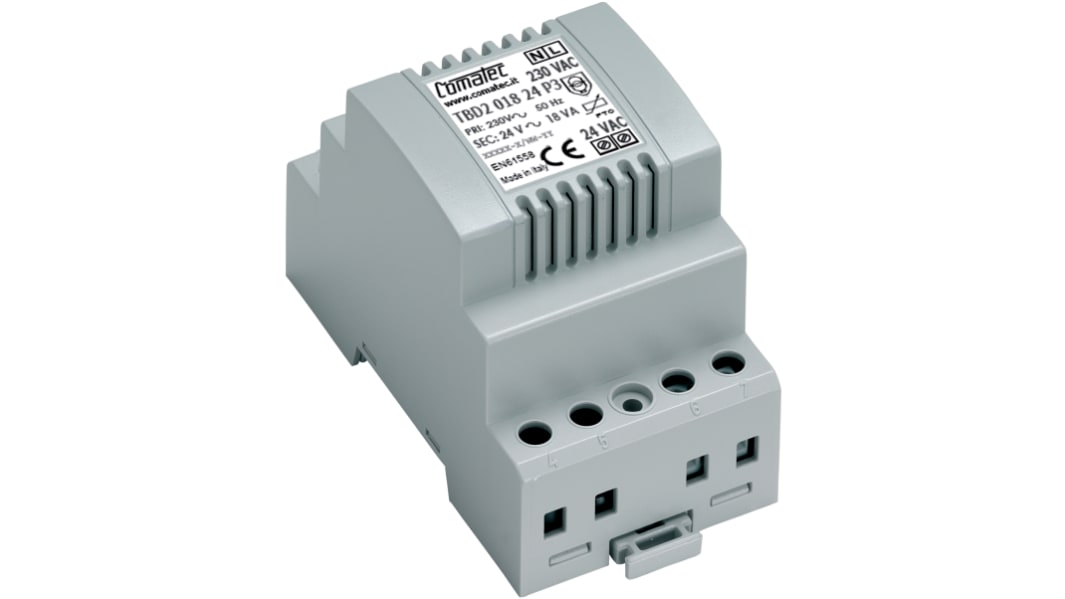

Comatec 18 VA DIN Rail Transformer, 230 V ac Primary, 24 V ac Secondary, EN61000-3-2, EN61558-1, EN55024, EN55032(cl.B),
- RS Stock No.:
- 240-9670
- Distrelec Article No.:
- 156-00-923
- Mfr. Part No.:
- TBD2 018 24 P3
- Brand:
- Comatec
Subtotal (1 unit)*
£17.72
(exc. VAT)
£21.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 66 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.72 |
*price indicative
- RS Stock No.:
- 240-9670
- Distrelec Article No.:
- 156-00-923
- Mfr. Part No.:
- TBD2 018 24 P3
- Brand:
- Comatec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Comatec | |
| Product Type | DIN Rail Transformer | |
| Primary Voltage | 230 V ac | |
| Secondary Voltage | 24 V ac | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Power | 18VA | |
| Width | 52.5mm | |
| Depth | 93.0mm | |
| Minimum Operating Temperature | -10°C | |
| Weight | 460g | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EN61000-3-2, EN61558-1, EN55024, EN55032(cl.B), EN61000-3-3, EN50581 | |
| Select all | ||
|---|---|---|
Brand Comatec | ||
Product Type DIN Rail Transformer | ||
Primary Voltage 230 V ac | ||
Secondary Voltage 24 V ac | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Power 18VA | ||
Width 52.5mm | ||
Depth 93.0mm | ||
Minimum Operating Temperature -10°C | ||
Weight 460g | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EN61000-3-2, EN61558-1, EN55024, EN55032(cl.B), EN61000-3-3, EN50581 | ||
- COO (Country of Origin):
- IT
The Comatec Din rail Transformer have been designed for installation in home and industry automation. They can even be installed in electric panels as well as in applications where an isolation class II, extremely compact dimensions and a long-term reliability are required.
Input-230 Vrms
Output-24 Vrms 18 VA
Frequency-50-60 Hz
Efficiency is 78.00%
