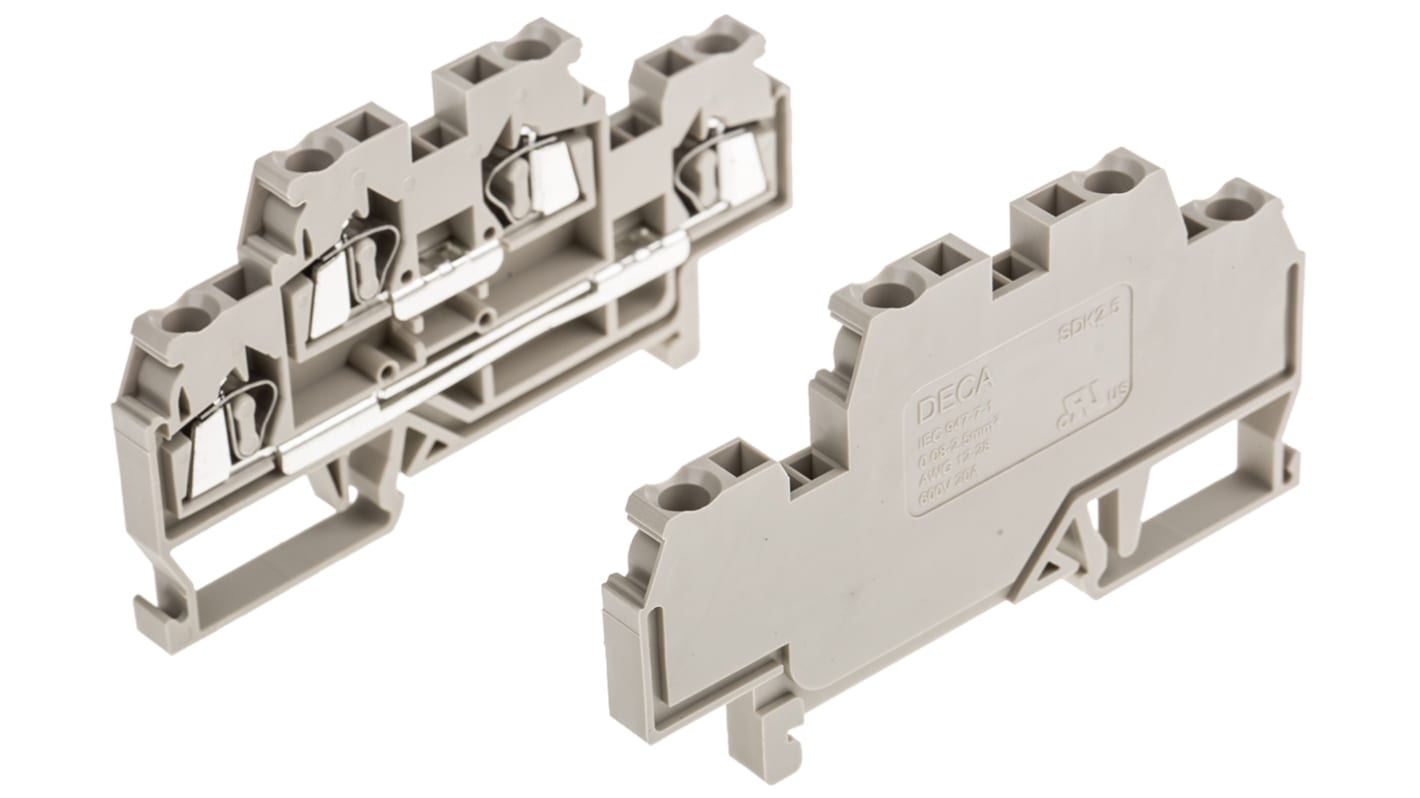

RS PRO Beige Double Level Terminal Block, 2.5mm², Double-Level, Spring Clamp Termination
- RS Stock No.:
- 913-1241
- Brand:
- RS PRO
245 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.466
(exc. VAT)
£1.759
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 25 | £1.466 | £7.33 |
| 30 - 55 | £1.396 | £6.98 |
| 60 + | £1.34 | £6.70 |
| *price indicative | ||
- RS Stock No.:
- 913-1241
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Spring Double Level Terminal Blocks
Features and Benefits
• 2.5mm² double level terminal blocks
• Double level wiring design negates the need for rail extension
• Marking/identification by marking tags possible at both levels
• Interconnection/shorting possible at both levels
• Suitable for a broad range of cross-connection and types of wires
• Wires can be connected without any special preparation
• Excellent vibration resistance
• High reliability and maintenance free
• Very low contact resistance
• Easy mounting and dismounting from the DIN rail
• Reduced installation costs and wiring speed
• Double level wiring design negates the need for rail extension
• Marking/identification by marking tags possible at both levels
• Interconnection/shorting possible at both levels
• Suitable for a broad range of cross-connection and types of wires
• Wires can be connected without any special preparation
• Excellent vibration resistance
• High reliability and maintenance free
• Very low contact resistance
• Easy mounting and dismounting from the DIN rail
• Reduced installation costs and wiring speed
Specifications
Attribute | Value |
|---|---|
| Colour | Beige |
| Number of Levels | Double |
| American Wire Gauge | 28 → 12AWG |
| Termination Method | Spring Clamp |
| Cable CSA | 2.5mm² |
| Current Rating | 20 (CSA) A, 20 (UL) A, 24 (IEC) A |
| Voltage Rating | 800 V |
