Phoenix Contact 3040054 STTB 2.5/ 2P Series Grey, 2.5mm², Double-Level, Spring Clamp Termination
- RS Stock No.:
- 803-7583
- Mfr. Part No.:
- 3040054
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£97.75
(exc. VAT)
£117.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
- Plus 999,999,650 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.955 | £97.75 |
*price indicative
- RS Stock No.:
- 803-7583
- Mfr. Part No.:
- 3040054
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Double | |
| Voltage Rating | 500 V | |
| Series | STTB 2.5/ 2P | |
| American Wire Gauge | 28 → 12AWG | |
| Termination Method | Spring Clamp | |
| Cable CSA | 2.5mm² | |
| Current Rating | 22A | |
| Model Number | STTB 2,5/2P | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Double | ||
Voltage Rating 500 V | ||
Series STTB 2.5/ 2P | ||
American Wire Gauge 28 → 12AWG | ||
Termination Method Spring Clamp | ||
Cable CSA 2.5mm² | ||
Current Rating 22A | ||
Model Number STTB 2,5/2P | ||
- COO (Country of Origin):
- PL

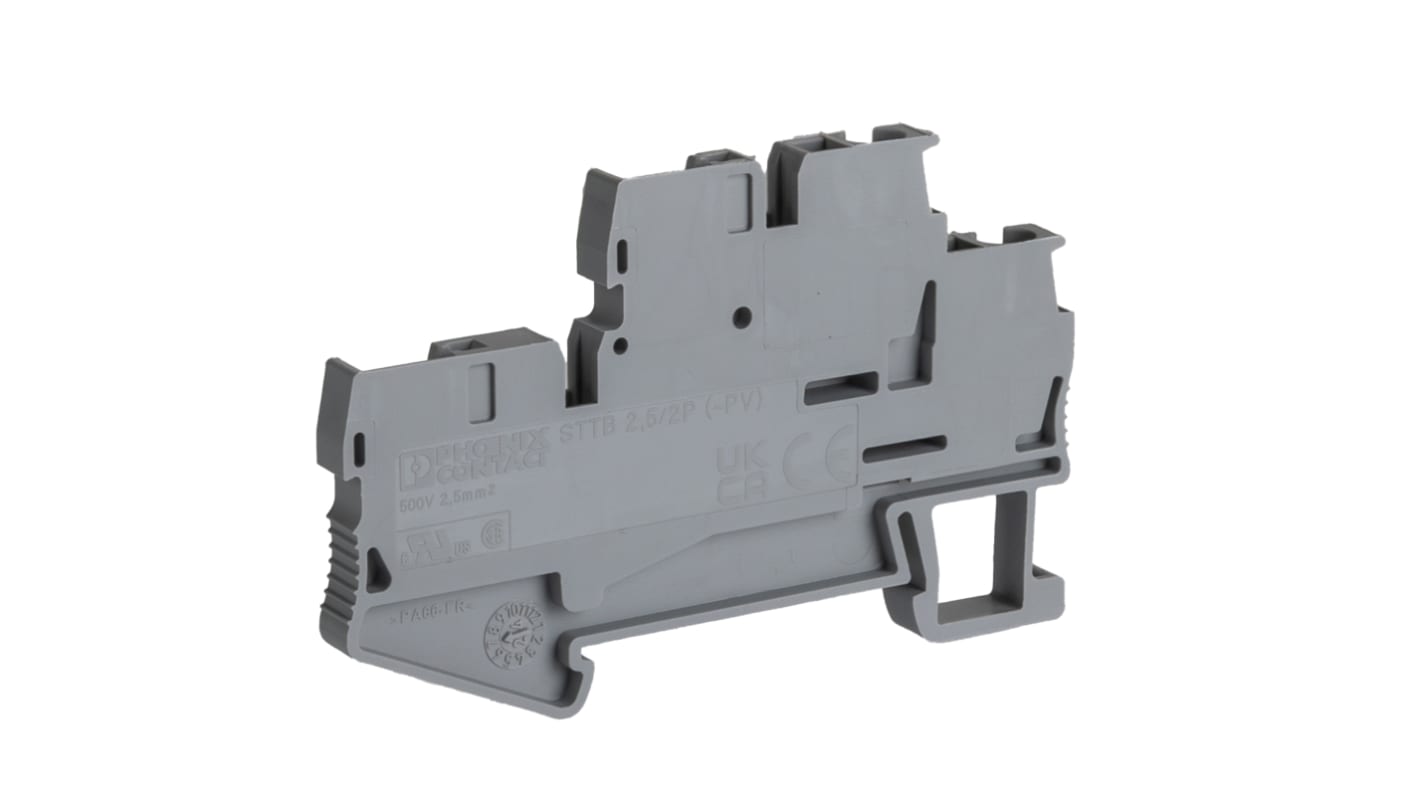

Phoenix Contact STTB 2.5/ 2P Series Feed-Through Terminal Block, 22A - 3040054
This feed-through terminal block is designed for reliable electrical connections across various applications. Its spring cage termination method facilitates potential routing across two levels, optimising space management in control panels and electrical systems.
Features & Benefits
• Supports a nominal current rating of 22A for demanding applications
• Rated for voltages up to 500V, ensuring robust performance
• Spring cage connection provides straightforward wiring and maintenance
• Double-level terminals enable compact and versatile installation
• Grey colour aids in easy identification within electrical assemblies
• Rated for voltages up to 500V, ensuring robust performance
• Spring cage connection provides straightforward wiring and maintenance
• Double-level terminals enable compact and versatile installation
• Grey colour aids in easy identification within electrical assemblies
Applications
• Employed in railway applications for reliable performance
• Used in automation systems requiring consistent connectivity
• Used in automation systems requiring consistent connectivity
What type of conductors can be used with it?
Both rigid and flexible conductors ranging from 0.08mm² to 4mm² can be accommodated, depending on application requirements.
Is it compatible with different rail types?
Yes, it can be mounted on NS 35/7.5 and NS 35/15 rails, offering versatility for various installations.
What environmental conditions can it withstand?
The terminal block operates within a temperature range of -60 to +110°C and is designed to endure various humidity levels.
Are there specific standards it meets?
Yes, it complies with CSA standards, making it applicable for various industrial uses.
