Entrelec 1SNK710010R0000 ZK10 Series Grey, 10mm², Single-Level, Spring Clamp Termination
- RS Stock No.:
- 879-0855
- Mfr. Part No.:
- 1SNK710010R0000
- Brand:
- Entrelec

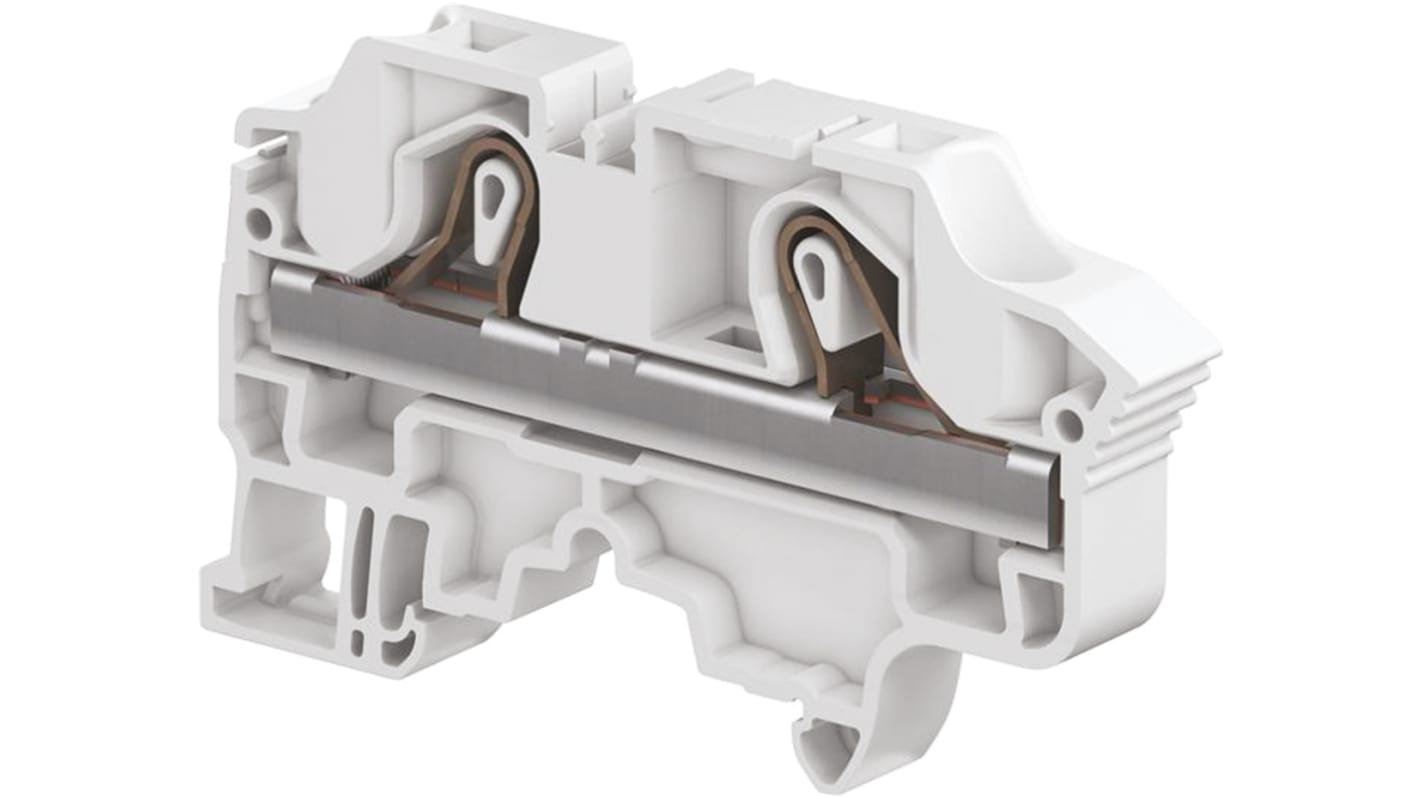

Image representative of range
Subtotal (1 pack of 5 units)*
£8.66
(exc. VAT)
£10.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 165 unit(s) ready to ship
- Plus 40 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.732 | £8.66 |
*price indicative
- RS Stock No.:
- 879-0855
- Mfr. Part No.:
- 1SNK710010R0000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Grey | |
| Number of Levels | Single | |
| Series | ZK10 | |
| Voltage Rating | 1 kV | |
| Termination Method | Spring Clamp | |
| Cable CSA | 10mm² | |
| Current Rating | 57A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +110°C | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Grey | ||
Number of Levels Single | ||
Series ZK10 | ||
Voltage Rating 1 kV | ||
Termination Method Spring Clamp | ||
Cable CSA 10mm² | ||
Current Rating 57A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +110°C | ||
RoHS Status: Exempt
ZK10 PI-Spring Feed-Through Terminal Blocks
ZK10 PI-Spring feed-through Terminal Blocks combine high performance with compact dimensions. The terminals are also the best for marking, with an up-front flat marker zone. This feature lets you mark up to eight digits or increase the font size.
Features and Benefits
• Push-in and spring mode terminals
• 10 mm² (6 AWG)
• Easy DIN Rail mounting
• 10 mm² (6 AWG)
• Easy DIN Rail mounting
SNK Series PI-Spring Terminal Blocks
PI-Spring technology provides a Smart Connection and the benefits of 2 technologies in 1 connection:
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
