WAGO 2210-1301 TOPJOB S, 2210 Series Grey, 10mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 240-7753
- Mfr. Part No.:
- 2210-1301
- Brand:
- WAGO
Subtotal (1 pack of 25 units)*
£77.275
(exc. VAT)
£92.725
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 75 unit(s) shipping from 06 November 2025
- Plus 999,999,875 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 + | £3.091 | £77.28 |
*price indicative
- RS Stock No.:
- 240-7753
- Mfr. Part No.:
- 2210-1301
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Colour | Grey | |
Number of Levels | Single | |
Series | TOPJOB S, 2210 | |
American Wire Gauge | 20 → 6AWG | |
Termination Method | Push-In Cage Clamp | |
Cable CSA | 10mm² | |
Fused | No | |
Current Rating | 57A | |
Hazardous Area Certification | ATEX, IECEx | |
Select all | ||
---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels Single | ||
Series TOPJOB S, 2210 | ||
American Wire Gauge 20 → 6AWG | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 10mm² | ||
Fused No | ||
Current Rating 57A | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- DE

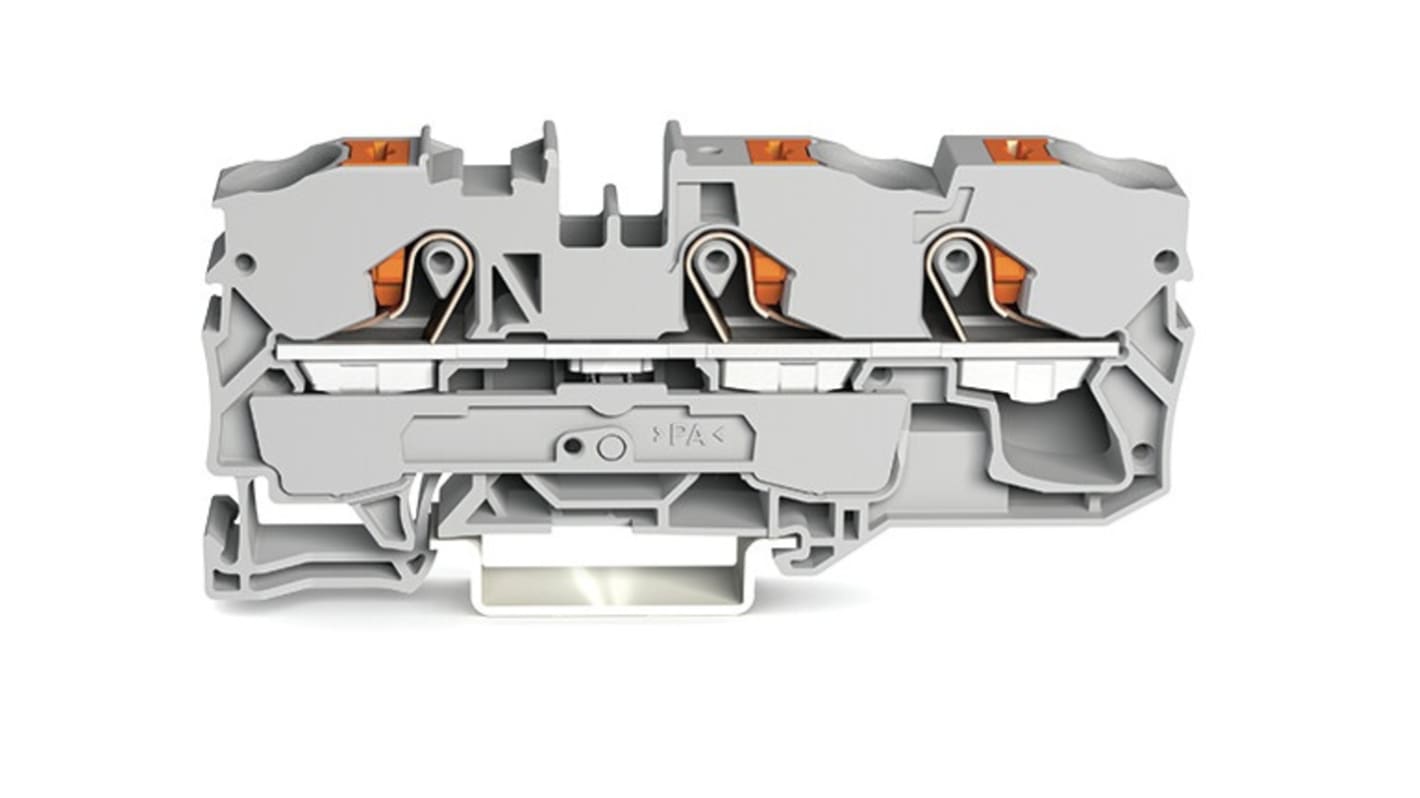

The WAGO 3-conductor through terminal block comes with push-button and test port. It is suitable for DIN-rail 35 x 15 and 35 x 7.5. It uses push-in cage clamp connection technology. It has 800 V nominal voltage (III/3) rating as per IEC/EN.
Centre/side marking
Front-entry wiring
Horizontal design
Connection has 10 mm² nominal cross-section
Front-entry wiring
Horizontal design
Connection has 10 mm² nominal cross-section
