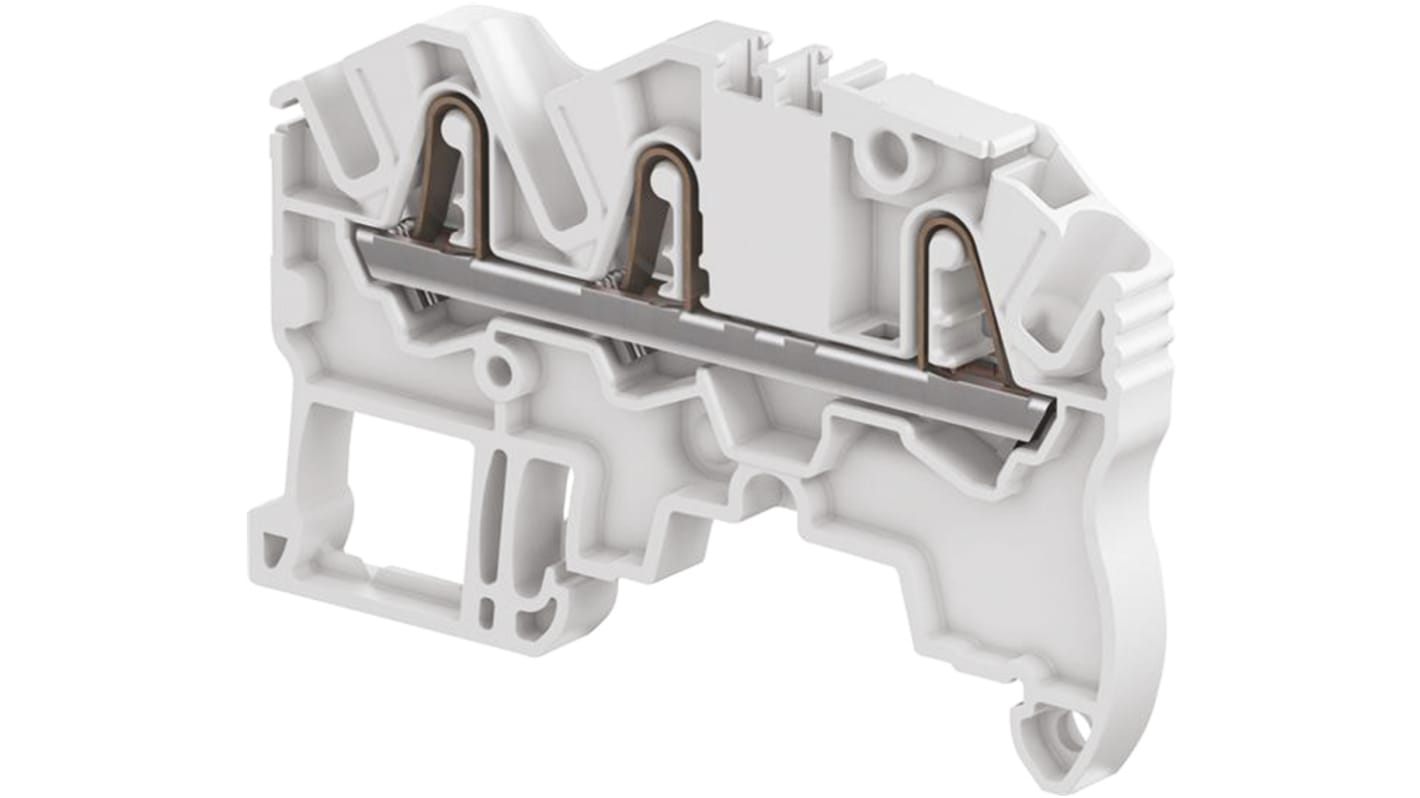

Entrelec ZK2.5 Series Grey Standard Din Rail Terminal, 2.5mm², Single-Level, Spring Clamp Termination
- RS Stock No.:
- 879-0798
- Mfr. Part No.:
- 1SNK705011R0000
- Brand:
- Entrelec
90 In stock - FREE next working day delivery available
120 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£1.05
(exc. VAT)
£1.26
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 50 | £1.05 | £10.50 |
| 60 - 110 | £1.022 | £10.22 |
| 120 + | £0.996 | £9.96 |
| *price indicative | ||
- RS Stock No.:
- 879-0798
- Mfr. Part No.:
- 1SNK705011R0000
- Brand:
- Entrelec
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
ZK2.5 PI-Spring Feed-Through Terminal Blocks
ZK2.5 PI-Spring feed-through Terminal Blocks combine high performance with compact dimensions. The terminals are also the best for marking, with an up-front flat marker zone. This feature lets you mark up to eight digits or increase the font size.
Features and Benefits
• Spring terminals (3.5 mm flat blade screwdriver operated)
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
SNK Series PI-Spring Terminal Blocks
PI-Spring technology provides a Smart Connection and the benefits of 2 technologies in 1 connection:
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Single |
| Series | ZK2.5 |
| Termination Method | Spring Clamp |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 1 kV |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +110°C |
