Entrelec 1SNK706410R0000 ZK2.5 Series Grey, 2.5mm², Single-Level, Spring Clamp Termination, Fused
- RS Stock No.:
- 879-0837
- Mfr. Part No.:
- 1SNK706410R0000
- Brand:
- Entrelec

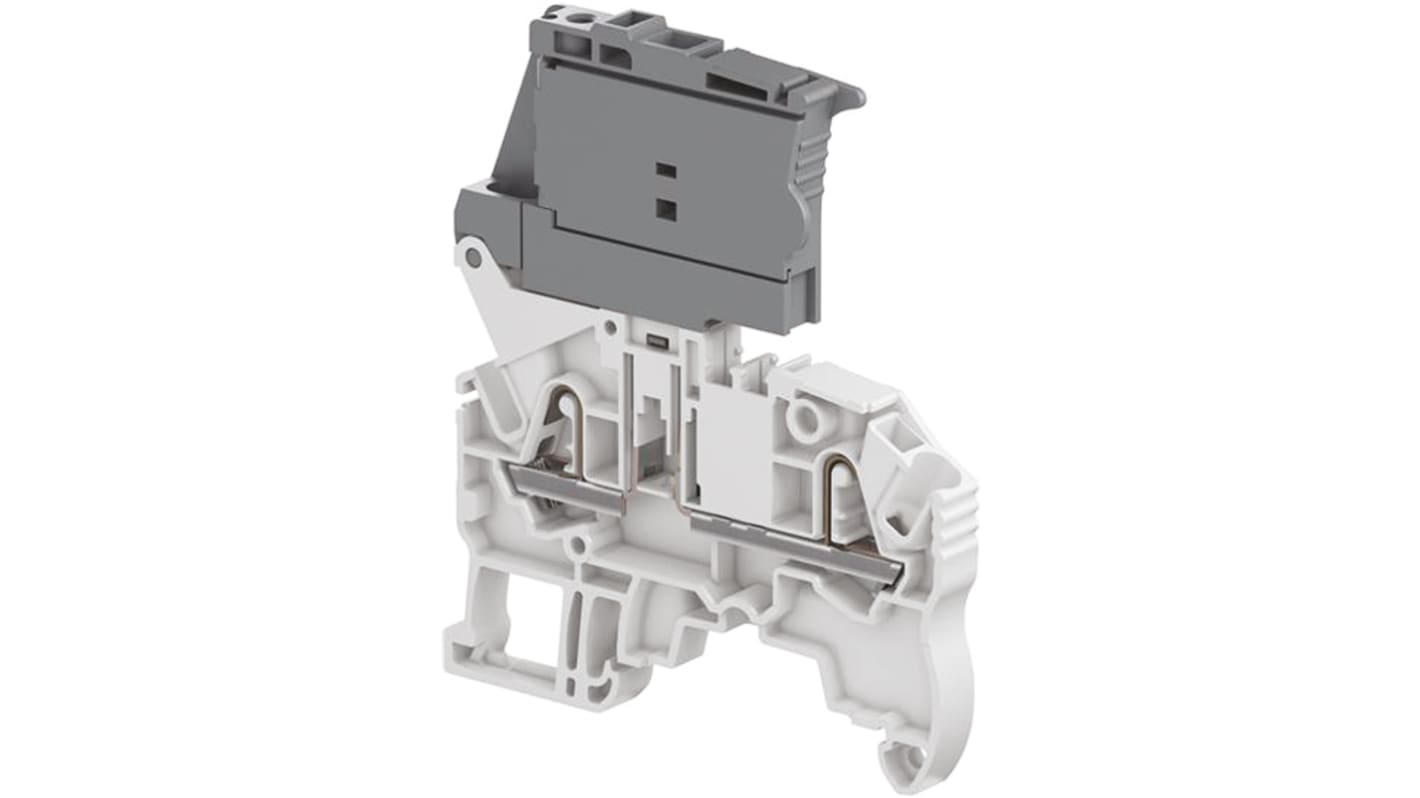

Image representative of range
Subtotal (1 pack of 5 units)*
£30.67
(exc. VAT)
£36.805
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 135 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £6.134 | £30.67 |
*price indicative
- RS Stock No.:
- 879-0837
- Mfr. Part No.:
- 1SNK706410R0000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Grey | |
| Number of Levels | Single | |
| Series | ZK2.5 | |
| Voltage Rating | 500 V | |
| Termination Method | Spring Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | Yes | |
| Current Rating | 16A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +110°C | |
Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Grey | ||
Number of Levels Single | ||
Series ZK2.5 | ||
Voltage Rating 500 V | ||
Termination Method Spring Clamp | ||
Cable CSA 2.5mm² | ||
Fused Yes | ||
Current Rating 16A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +110°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
ZK2.5 PI-Spring Feed-Through Terminal Blocks
ZK2.5 PI-Spring feed-through Terminal Blocks combine high performance with compact dimensions. The terminals are also the best for marking, with an up-front flat marker zone. This feature lets you mark up to eight digits or increase the font size.
Features and Benefits
• Spring terminals (3.5 mm flat blade screwdriver operated)
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
SNK Series PI-Spring Terminal Blocks
PI-Spring technology provides a Smart Connection and the benefits of 2 technologies in 1 connection:
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
