Phoenix Contact 3214324 UT 4-PE/L/HEDI Series Black, Screw Termination
- RS Stock No.:
- 866-6869
- Mfr. Part No.:
- 3214324
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£14.85
(exc. VAT)
£17.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 45 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.85 |
*price indicative
- RS Stock No.:
- 866-6869
- Mfr. Part No.:
- 3214324
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black | |
| Voltage Rating | 500 V | |
| American Wire Gauge | 26 → 10AWG | |
| Series | UT 4-PE/L/HEDI | |
| Termination Method | Screw | |
| Current Rating | 28A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +130°C | |
| Model Number | UT 4-PE/L/HEDI | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Voltage Rating 500 V | ||
American Wire Gauge 26 → 10AWG | ||
Series UT 4-PE/L/HEDI | ||
Termination Method Screw | ||
Current Rating 28A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +130°C | ||
Model Number UT 4-PE/L/HEDI | ||
- COO (Country of Origin):
- PL

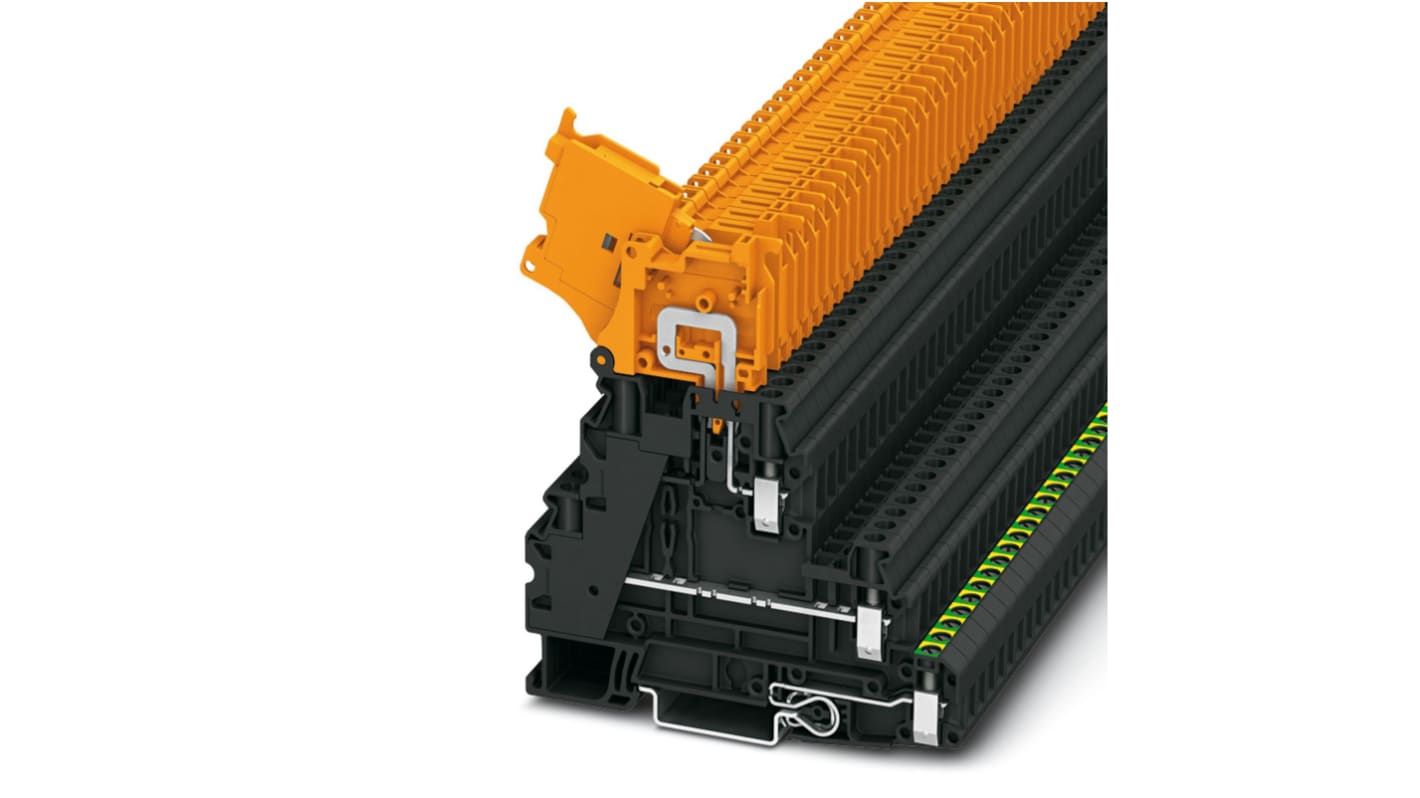

UT Lever-type Fuse and Function Terminal Blocks with PE Foot
The lever-type fuse and function terminal blocks with PE foot are suitable for process technology based on the Ex nA approval that has been applied for, and are suitable for energy and signal transmission in potentially explosive areas.
Features and Benefits
• Screw Connection
• Mounting type: NS 35/7.5, NS 35/15
• RoHS compliant
• Mounting type: NS 35/7.5, NS 35/15
• RoHS compliant
Standards
IEC 60947-7-1, V0 UL 94 flammability rating.
Approvals
IECEx, UL, cUL, EAC, CSA, cULus.
Phoenix Contact CLIPLINE UT Range
