Phoenix Contact 3210321 PT 1.5/S-QUATTRO-MT Series Grey, Push In Termination
- RS Stock No.:
- 866-6724
- Mfr. Part No.:
- 3210321
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£17.02
(exc. VAT)
£20.425
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 265 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £3.404 | £17.02 |
*price indicative
- RS Stock No.:
- 866-6724
- Mfr. Part No.:
- 3210321
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Series | PT 1.5/S-QUATTRO-MT | |
American Wire Gauge | 26 → 14AWG | |
Voltage Rating | 400 V | |
Termination Method | Push In | |
Fused | No | |
Current Rating | 10A | |
Minimum Operating Temperature | -60°C | |
Maximum Operating Temperature | +125°C | |
Model Number | PT 1,5/S-QUATTRO-MT | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Series PT 1.5/S-QUATTRO-MT | ||
American Wire Gauge 26 → 14AWG | ||
Voltage Rating 400 V | ||
Termination Method Push In | ||
Fused No | ||
Current Rating 10A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +125°C | ||
Model Number PT 1,5/S-QUATTRO-MT | ||
- COO (Country of Origin):
- PL

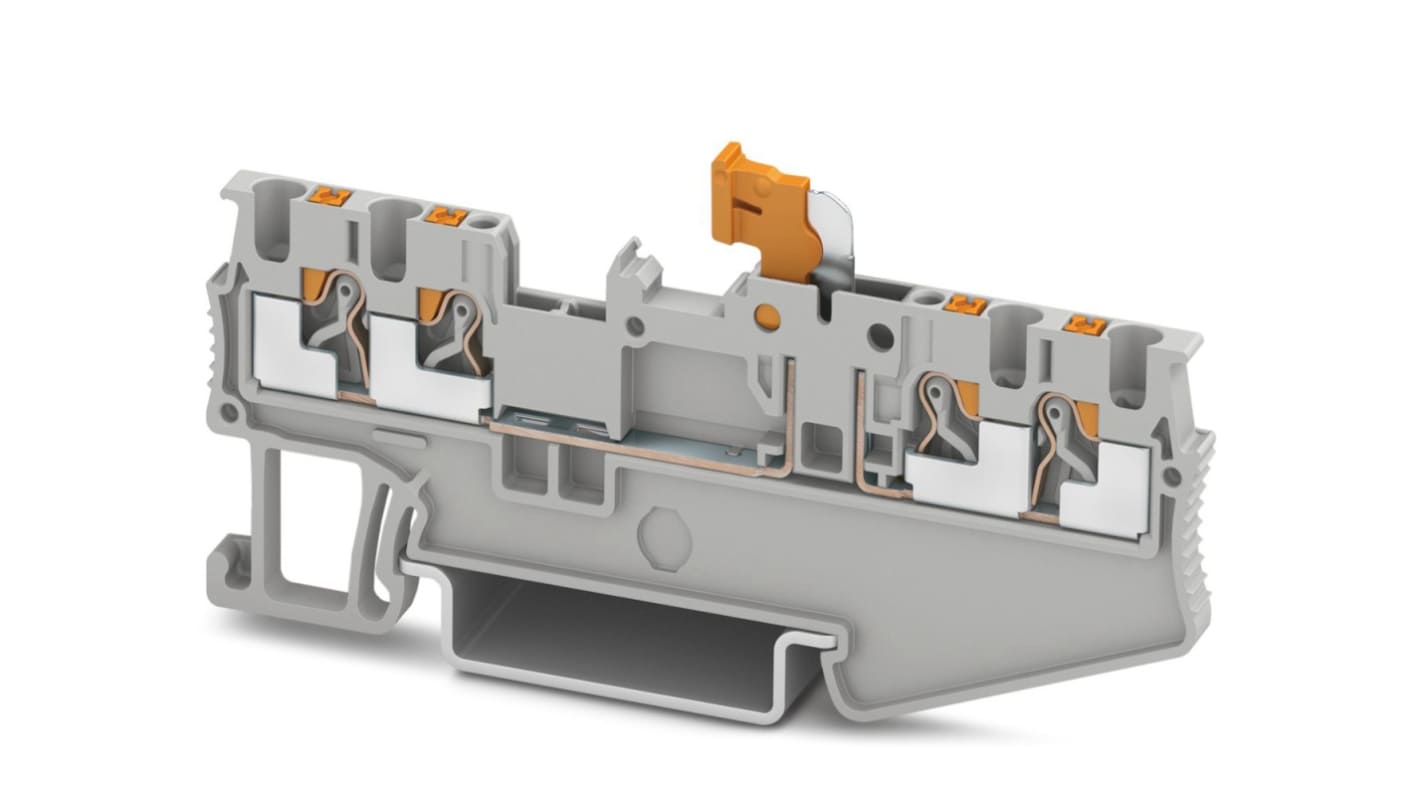

PT Series Knife Disconnect Terminal Blocks
The PT series is a range of push-in connection, disconnect terminal blocks. These din-rail terminal blocks are characterized by the system features of the CLIPLINE and by easy wiring of conductors with ferules or solid conductors that can be done without the use of any tools.
Features and Benefits
Push-in connection din-rail terminal blocks
Compact design and front connection enable wiring in confined space
Convenient circuit separation, thanks to lever type disconnect knife
RoHS compliant
Compact design and front connection enable wiring in confined space
Convenient circuit separation, thanks to lever type disconnect knife
RoHS compliant
Standards
IEC 60947-7-1 , V0 UL94 flammability rating.
Approvals
UL, cUL, CSA, EAC, LR, DNV GL, cULus.
