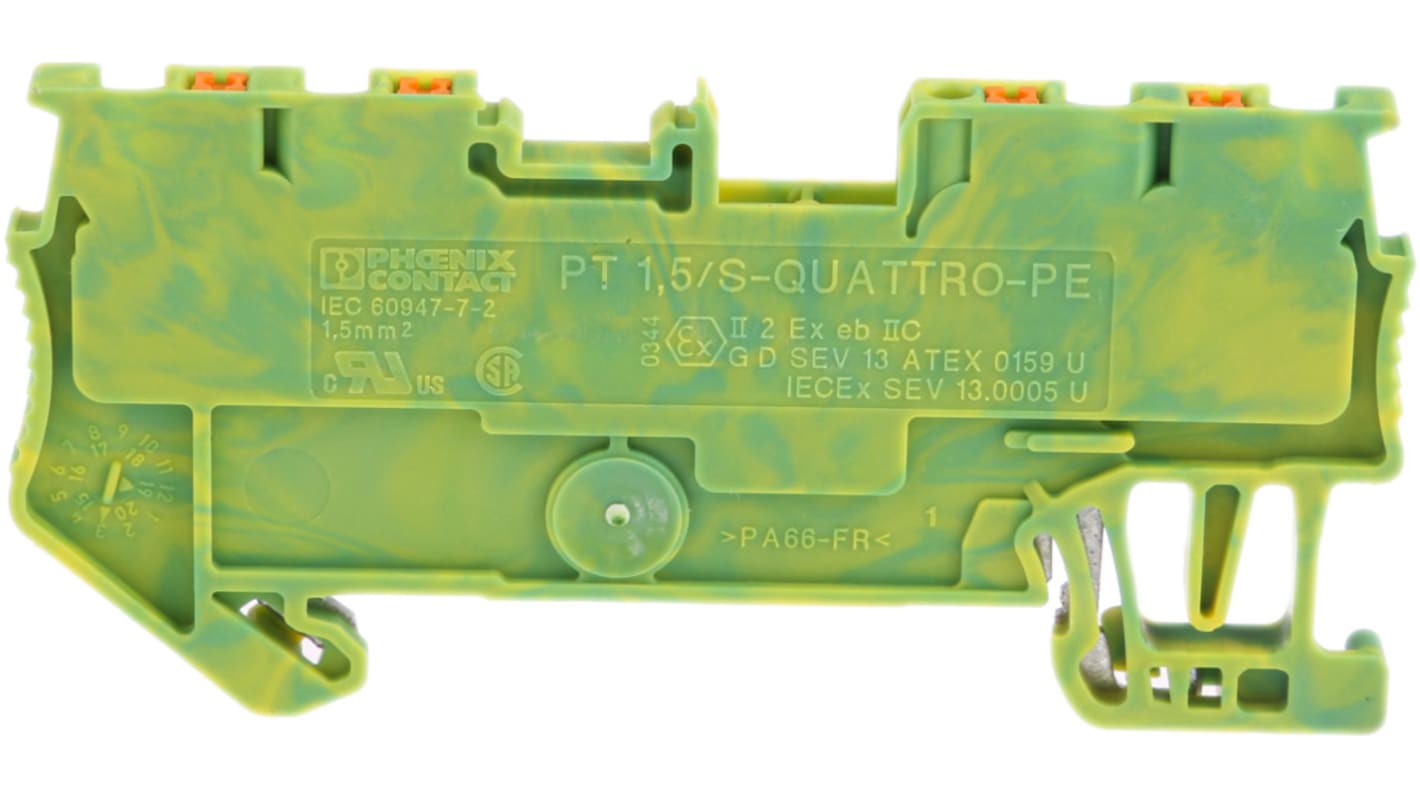

Phoenix Contact PT 1.5/S-QUATTRO-PE Series Green/Yellow Earth Terminal Block, 0.14 → 1.5mm², Single-Level, Push
- RS Stock No.:
- 750-8520
- Mfr. Part No.:
- 3208333
- Brand:
- Phoenix Contact
405 In stock - FREE next working day delivery available
2770 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£3.876
(exc. VAT)
£4.651
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 25 | £3.876 | £19.38 |
30 - 55 | £3.77 | £18.85 |
60 + | £3.668 | £18.34 |
*price indicative |
- RS Stock No.:
- 750-8520
- Mfr. Part No.:
- 3208333
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks
The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
PT Series - Features and Benefits
• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
Phoenix Contact Earth Terminal Block, 26 to 16AWG, 0.14 to 1.5mm² CSA - PT 1.5/S-QUATTRO-PE - 3208333
Circuit wiring can be straightforward, thanks to this Phoenix Contact feed-through earth terminal block. Four connections are routed via the same current bar, allowing you to connect up to four conductors with individual wiring. This reduces the number of terminal blocks and supply lines you need, saving space in busy setups. Common applications include the railway industry and plant engineering.
A flame-retardant polyamide housing offers protection from fire hazards and is also reliably durable. The block is grounded to its DIN rail mounting, protecting your equipment from current surges, while the insulator is finger-proof and back-of-hand-proof for reliable user safety. As part of the CLIPLINE complete system, you can combine this unit with others in the PT series to build a bespoke arrangement.
A flame-retardant polyamide housing offers protection from fire hazards and is also reliably durable. The block is grounded to its DIN rail mounting, protecting your equipment from current surges, while the insulator is finger-proof and back-of-hand-proof for reliable user safety. As part of the CLIPLINE complete system, you can combine this unit with others in the PT series to build a bespoke arrangement.
• Wide wire gauge compatibility from 26 to 16AWG makes it a versatile choice
• IECEx certification for safe use in environments with explosive atmospheres
• Plug-in connection method uses 50% less insertion force, for ease of installation and reduced wear on conductors
• IECEx certification for safe use in environments with explosive atmospheres
• Plug-in connection method uses 50% less insertion force, for ease of installation and reduced wear on conductors
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Green/Yellow |
Number of Levels | Single |
American Wire Gauge | 26 → 16AWG |
Series | PT 1.5/S-QUATTRO-PE |
Termination Method | Push In |
Cable CSA | 0.14 → 1.5mm² |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +105°C |
Hazardous Area Certification | ATEX |
Model Number | PT 1,5/S-QUATTRO-PE |
- RS Stock No.:
- 750-8520
- Mfr. Part No.:
- 3208333
- Brand:
- Phoenix Contact
