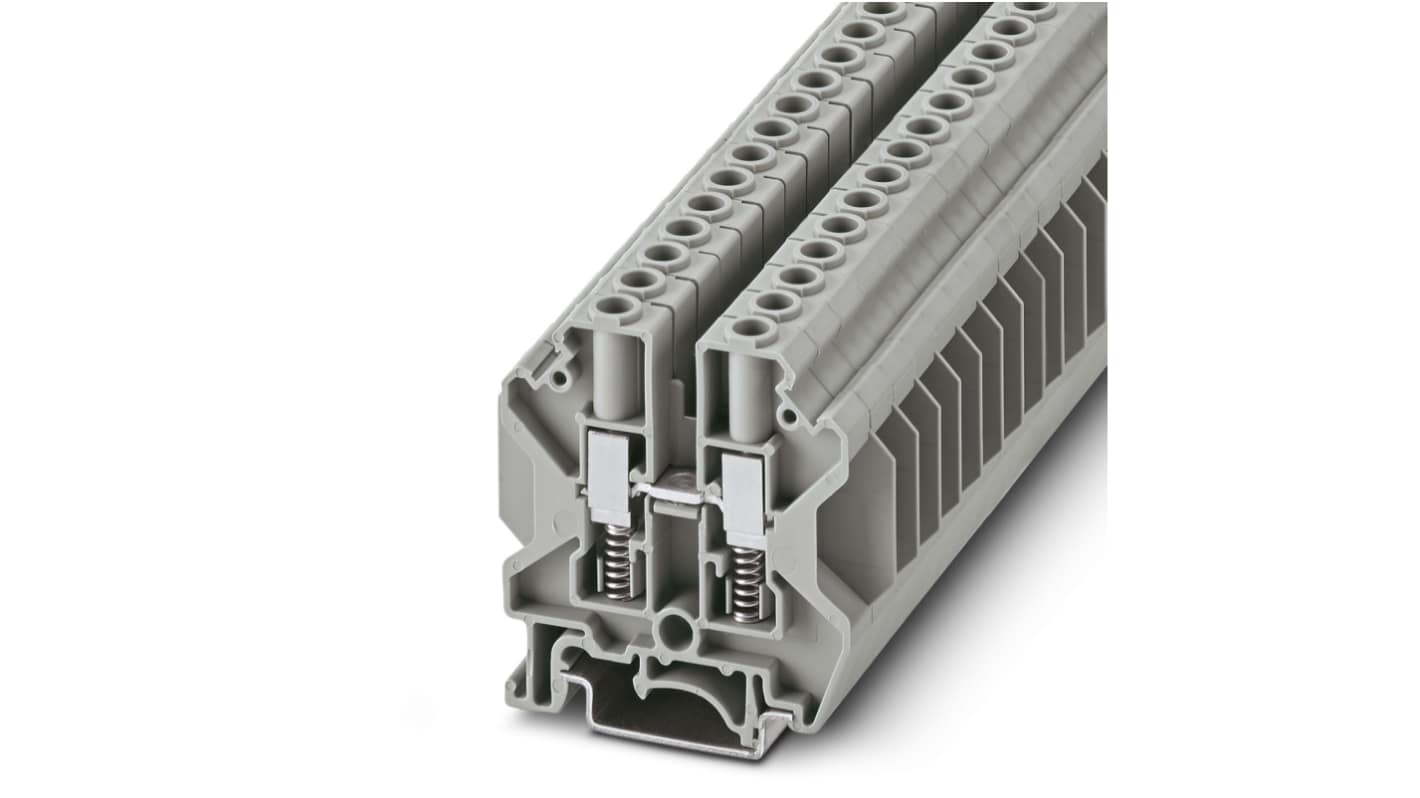

Phoenix Contact 3070341 USST 6 Series Grey, 0.2 → 10mm², Single-Level, Screw Termination

View all DIN Rail Terminal Blocks

Subtotal (1 box of 50 units)*

£159.21

(exc. VAT)

£191.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£159.21£3.184

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
858-0551
Mfr. Part No.:
3070341
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Grey

Number of Levels

Single

Voltage Rating

500 V

Series

USST 6

Termination Method

Screw

Cable CSA

0.2 → 10mm²

Current Rating

41A

Maximum Operating Temperature

+130°C

Model Number

USST 6

COO (Country of Origin):
PL
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Screw connection with spring support, number of connections: 2, cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, width: 8.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

The USST ... modular terminal blocks were specifically developed for use in the field of power supply

The ISSBI ... isolator bridge bars support switchable cross connections with IS .... Here the screw has the function of a live contact.
