Phoenix Contact 3070302 USST 4-MT P/P Series Grey, 0.2 → 6mm², Single-Level, Screw Termination
- RS Stock No.:
- 858-0425
- Mfr. Part No.:
- 3070302
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£199.52
(exc. VAT)
£239.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £199.52 | £3.99 |
*price indicative
- RS Stock No.:
- 858-0425
- Mfr. Part No.:
- 3070302
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Series | USST 4-MT P/P | |
| American Wire Gauge | 24 → 10AWG | |
| Voltage Rating | 500 V | |
| Termination Method | Screw | |
| Cable CSA | 0.2 → 6mm² | |
| Current Rating | 20A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +105°C | |
| Standards Met | cULus, EAC | |
| Model Number | USST 4-MT P/P | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Series USST 4-MT P/P | ||
American Wire Gauge 24 → 10AWG | ||
Voltage Rating 500 V | ||
Termination Method Screw | ||
Cable CSA 0.2 → 6mm² | ||
Current Rating 20A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
Standards Met cULus, EAC | ||
Model Number USST 4-MT P/P | ||
- COO (Country of Origin):
- PL

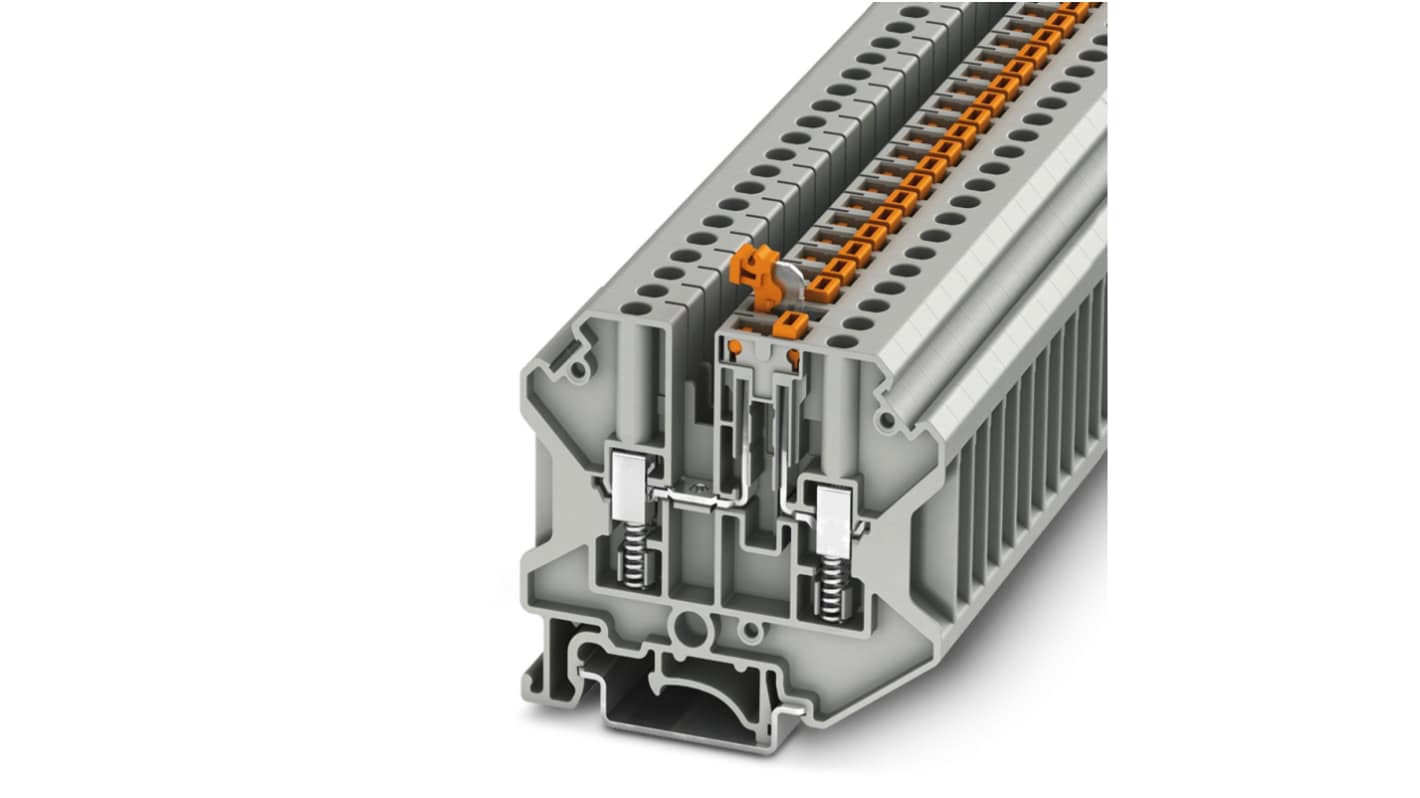

Phoenix Contact Knife-Disconnect Terminal Block, 20A Current Rating, 0.2 to 6 mm²Cable CSA- USST 4-MT P/P - 3070302
This knife-disconnect terminal block from Phoenix Contact lets you open a circuit quickly and safely without disturbing the wires. It's used in measurement applications or systems where you need to troubleshoot without disrupting service.
For straightforward control over connections, contacts are bridged using a knife-edge switch so you can remove and replace the unit as needed. To prevent accidental actuation, the knives engage in clearly identifiable end positions. Thanks to integrated test socket screws, it's easy to insert a standard test plug of 2.3mm for checking individual cables while conductors are connected. As this product is part of the CLIPLINE complete system, you can select compatible test and measurement accessories for a fully customised terminal block system to meet your needs.
For straightforward control over connections, contacts are bridged using a knife-edge switch so you can remove and replace the unit as needed. To prevent accidental actuation, the knives engage in clearly identifiable end positions. Thanks to integrated test socket screws, it's easy to insert a standard test plug of 2.3mm for checking individual cables while conductors are connected. As this product is part of the CLIPLINE complete system, you can select compatible test and measurement accessories for a fully customised terminal block system to meet your needs.
Features & Benefits
• High voltage rating of 500V and current rating of 20A for heavy-duty industrial applications
• Hassle-free spring-assisted screw termination method offers maximum contact area and reduced resistance
• Wide operating temperature range between -60°C and +105°C for use in challenging environments
• DIN-rail mounted for easy installation
• Flammability rating of UL94 V0 means it's self-extinguishing in 30 seconds
• Hassle-free spring-assisted screw termination method offers maximum contact area and reduced resistance
• Wide operating temperature range between -60°C and +105°C for use in challenging environments
• DIN-rail mounted for easy installation
• Flammability rating of UL94 V0 means it's self-extinguishing in 30 seconds
