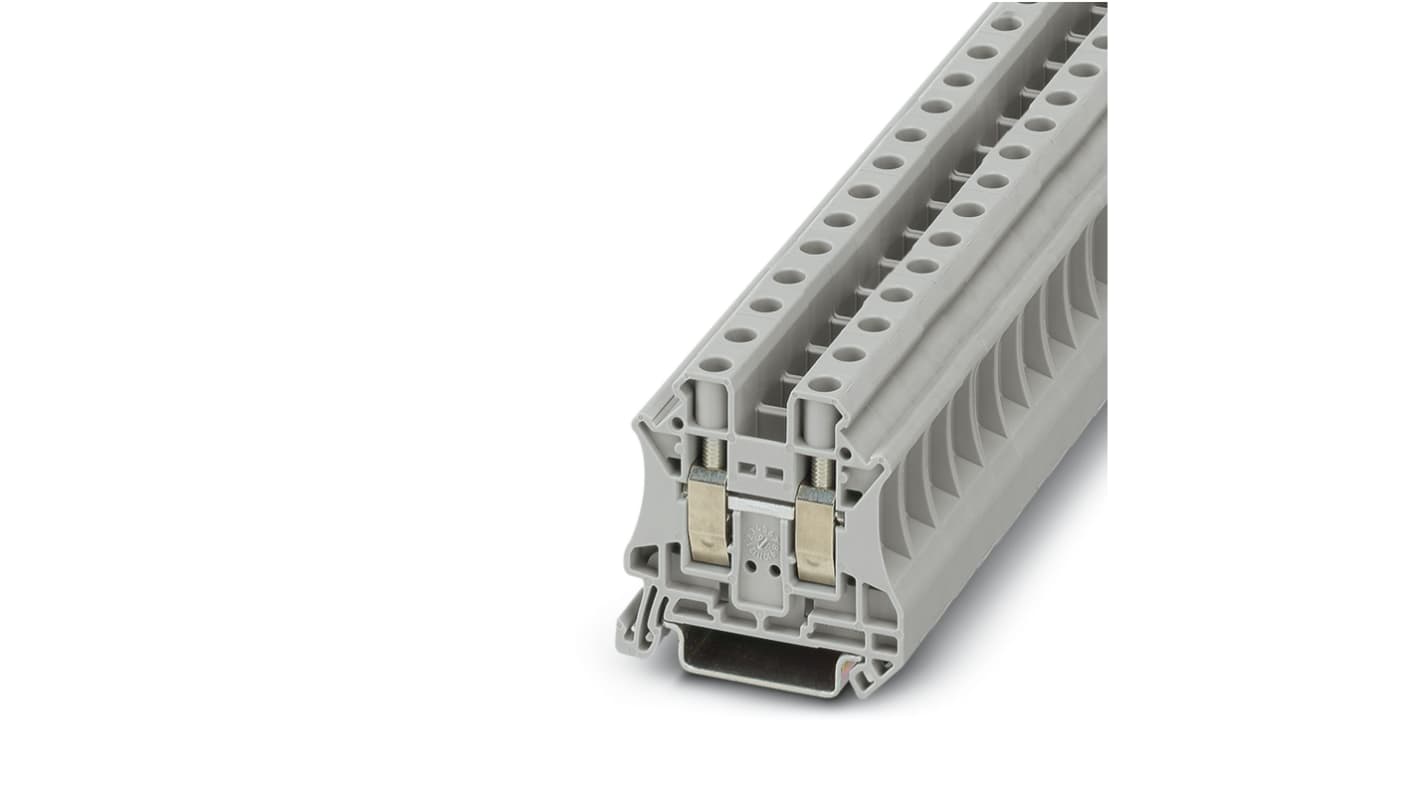

Phoenix Contact UT 10 SL Series Grey Feed Through Terminal Block, 0.5 → 16mm², Single-Level, Screw Termination
- RS Stock No.:
- 858-0507
- Mfr. Part No.:
- 3064247
- Brand:
- Phoenix Contact
1 In stock - FREE next working day delivery available
Added
Price 1 Box of 50
£85.44
(exc. VAT)
£102.53
(inc. VAT)
| Box(es) | Per Box | Per unit* |
| 1 + | £85.44 | £1.709 |
| *price indicative | ||
- RS Stock No.:
- 858-0507
- Mfr. Part No.:
- 3064247
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Feed-through terminal block, with six-lobe screw, nom. voltage: 1000 V, nominal current: 57 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, width: 10.2 mm, height: 46.9 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Single |
| Series | UT 10 SL |
| Termination Method | Screw |
| Cable CSA | 0.5 → 16mm² |
| Voltage Rating | 1 kV |
| Current Rating | 57A |
| Model Number | UT 10 SL |
