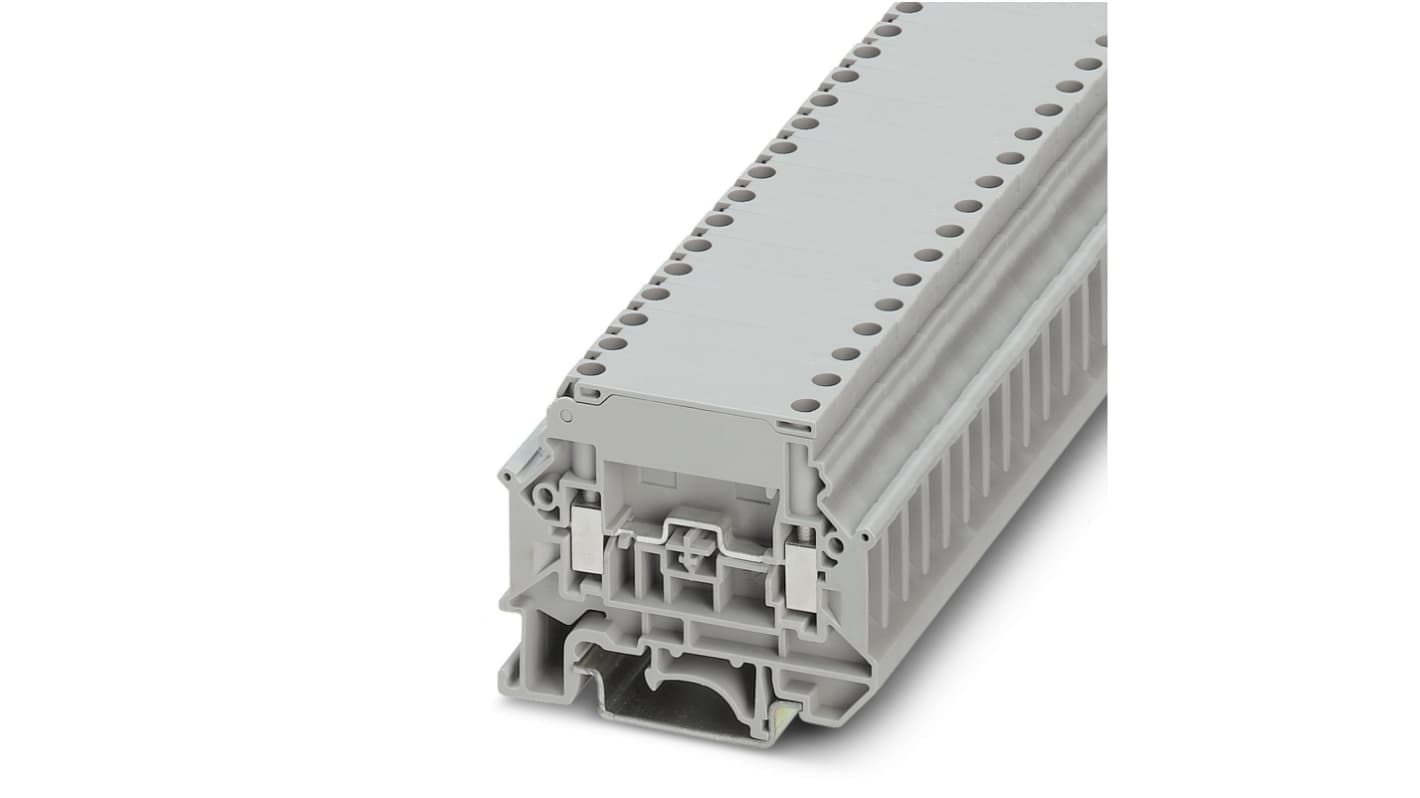

Phoenix Contact 3000562 UK 5-MTD N Series Grey, Single-Level, Screw Termination
- RS Stock No.:
- 858-0321
- Mfr. Part No.:
- 3000562
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 858-0321
- Mfr. Part No.:
- 3000562
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Series | UK 5-MTD N | |
| Voltage Rating | 800 V | |
| Termination Method | Screw | |
| Current Rating | 32A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +130°C | |
| Model Number | UK 5-MTD N | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Series UK 5-MTD N | ||
Voltage Rating 800 V | ||
Termination Method Screw | ||
Current Rating 32A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +130°C | ||
Model Number UK 5-MTD N | ||
- COO (Country of Origin):
- CN
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 8.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32
