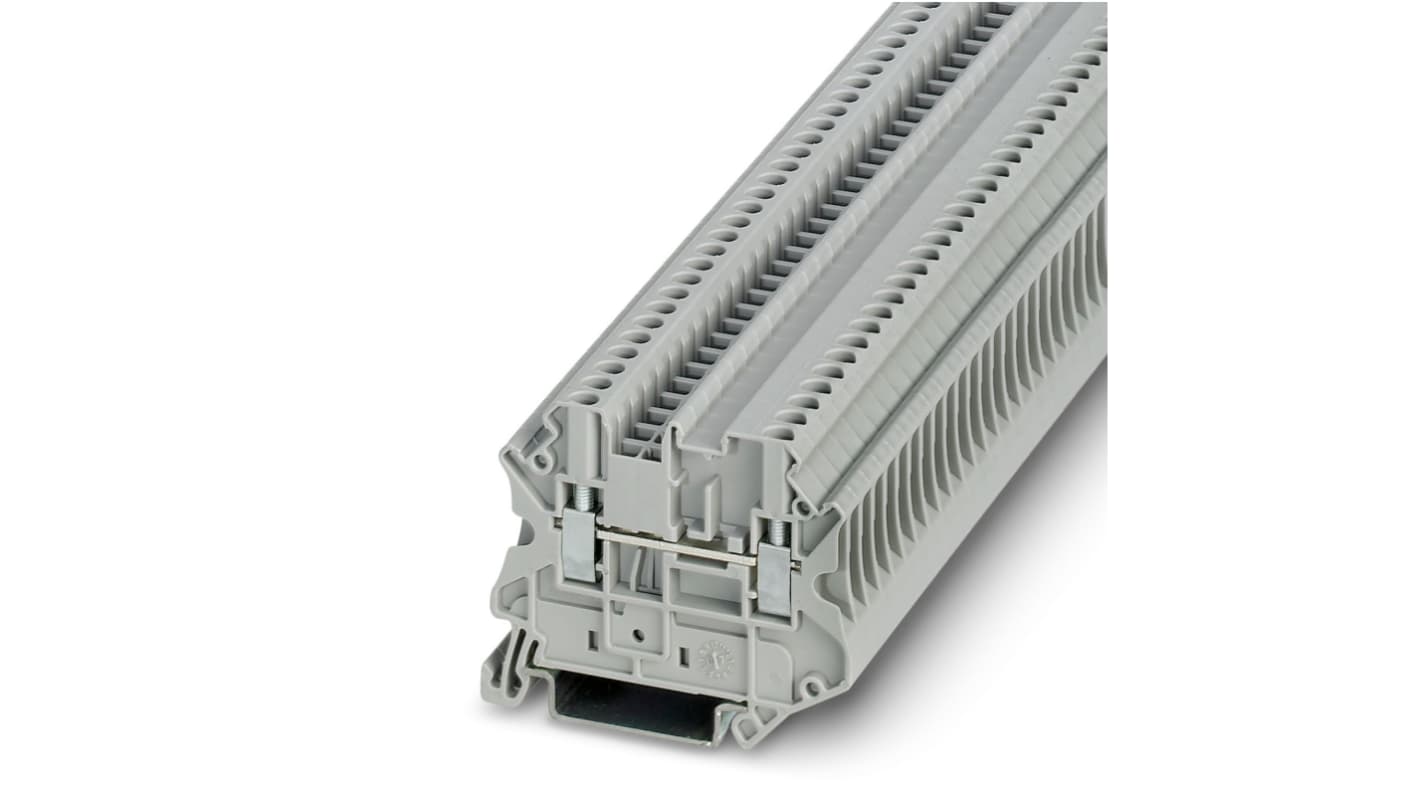

Phoenix Contact 3064098 UT 2.5-MTD P/P Series Grey, Single-Level, Screw Termination
- RS Stock No.:
- 804-4257
- Mfr. Part No.:
- 3064098
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£72.10
(exc. VAT)
£86.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.442 | £72.10 |
*price indicative
- RS Stock No.:
- 804-4257
- Mfr. Part No.:
- 3064098
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| American Wire Gauge | 26 → 12AWG | |
| Series | UT 2.5-MTD P/P | |
| Voltage Rating | 630 V | |
| Termination Method | Screw | |
| Current Rating | 32A | |
| Maximum Operating Temperature | +120°C | |
| Model Number | UT 2,5-MTD P/P | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
American Wire Gauge 26 → 12AWG | ||
Series UT 2.5-MTD P/P | ||
Voltage Rating 630 V | ||
Termination Method Screw | ||
Current Rating 32A | ||
Maximum Operating Temperature +120°C | ||
Model Number UT 2,5-MTD P/P | ||
- COO (Country of Origin):
- PL
UT Feed Through Terminal Blocks
Phoenix Contact professional UT rnage of DIN rail terminal blocks offers a compact design with large wiring space which enables the connection of solid and stranded conductors.
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The multi-conductor connection offers maximum flexibility and wiring density
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Optimum screwdriver guidance through closed screw shafts
The multi-conductor connection offers maximum flexibility and wiring density
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Phoenix Contact CLIPLINE UT Range
