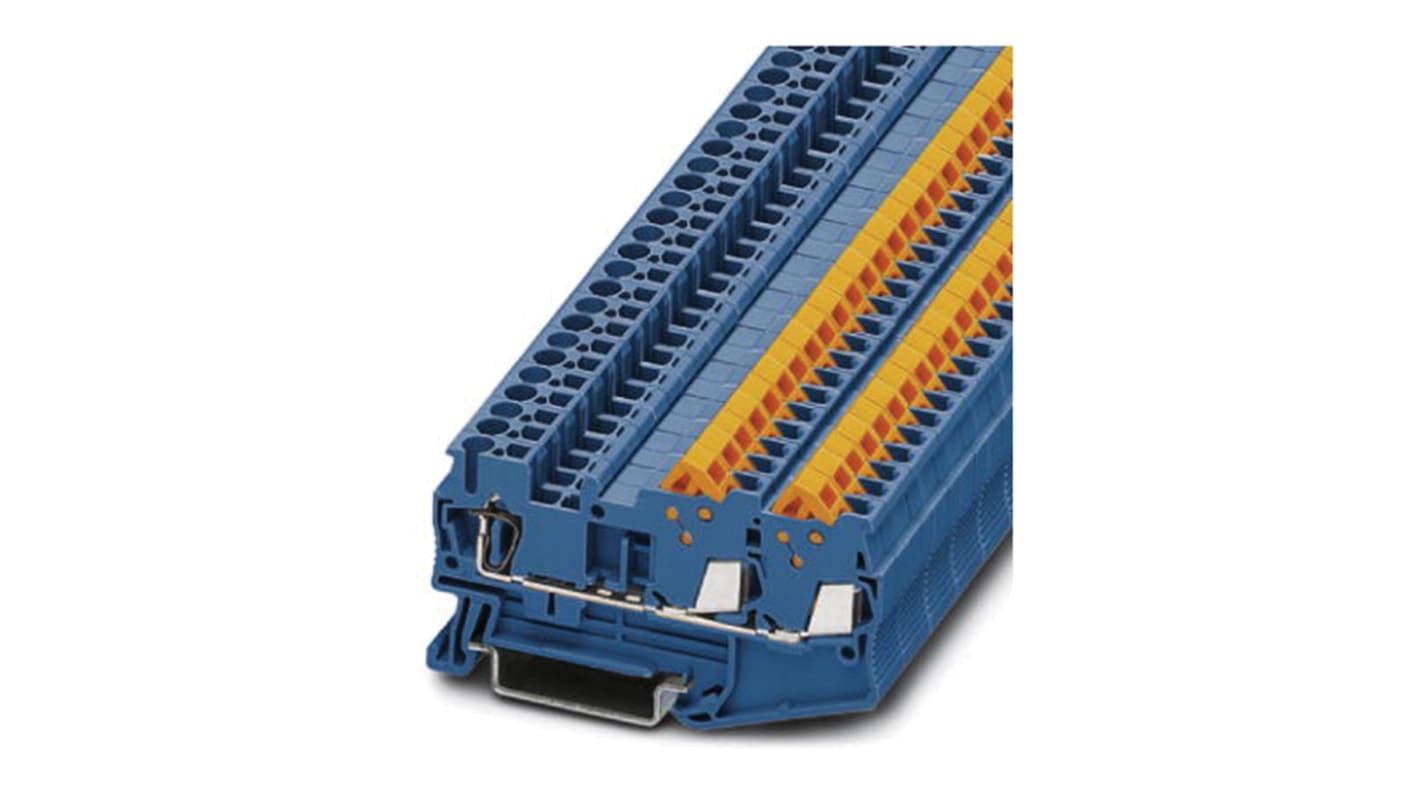

Phoenix Contact 3206351 QTCS 1.5-TWIN BU Series Blue, Single-Level, Quick Connect Termination
- RS Stock No.:
- 858-0217
- Mfr. Part No.:
- 3206351
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 858-0217
- Mfr. Part No.:
- 3206351
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Blue | |
| Number of Levels | Single | |
| Series | QTCS 1.5-TWIN BU | |
| Termination Method | Quick Connect | |
| Current Rating | 17.5A | |
| Voltage Rating | 800 V | |
| Model Number | QTCS 1,5-TWIN BU | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Blue | ||
Number of Levels Single | ||
Series QTCS 1.5-TWIN BU | ||
Termination Method Quick Connect | ||
Current Rating 17.5A | ||
Voltage Rating 800 V | ||
Model Number QTCS 1,5-TWIN BU | ||
- COO (Country of Origin):
- CN
Feed-through terminal block, connection method: Quick connection, Spring-cage connection, cross section: 0.25 mm² - 1.5 mm², AWG: 24 - 16, width: 5.2 mm, color: blue, mounting: NS 35/7,5, NS 35/15
The spring-cage connection is used on the connection side
