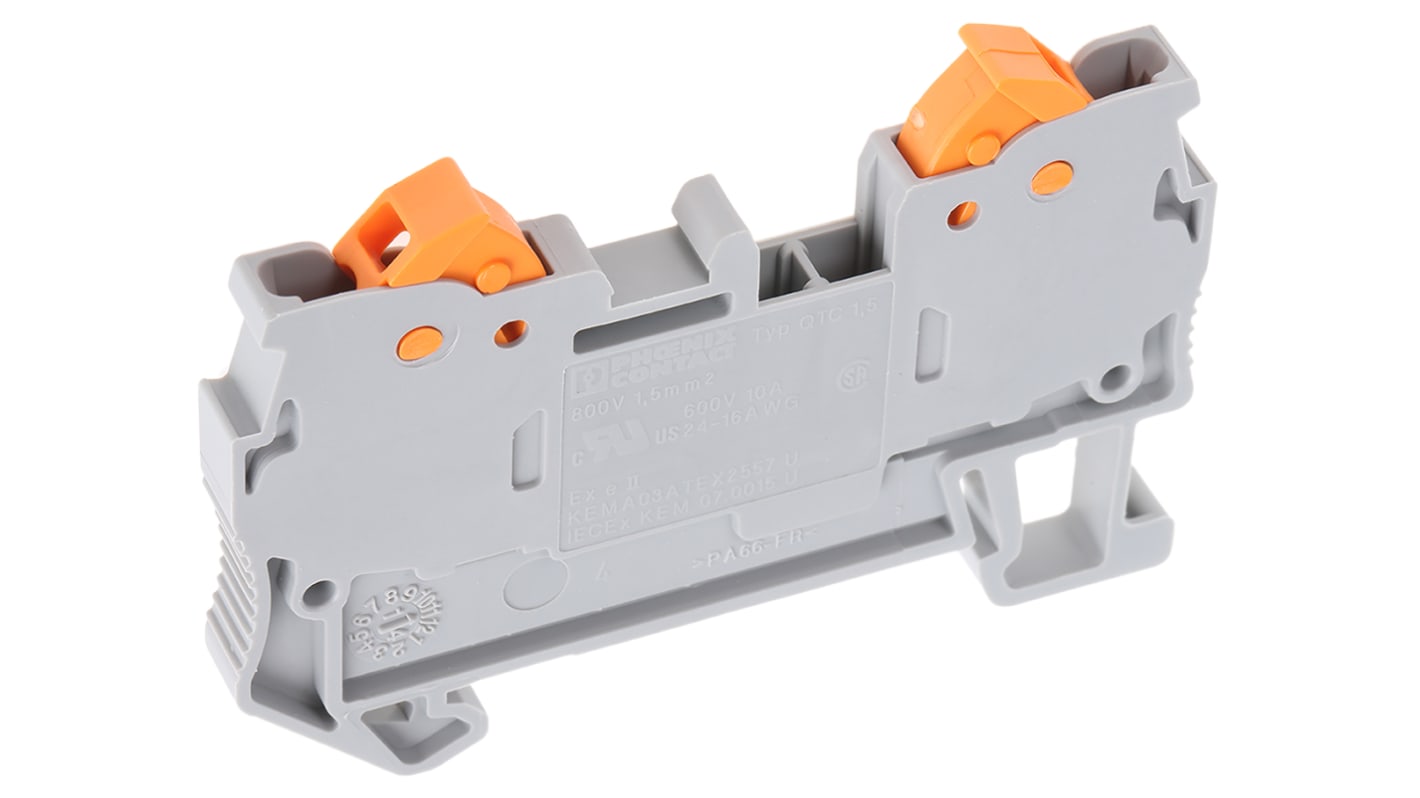

Phoenix Contact 3205019 QTC 1.5 Series Grey, 0.25 → 1.5mm², Single-Level, Quick Connect Termination

Need to make dependable wired connections in your panel? Fix your conductors with this feed-through terminal block from Phoenix Contact. It's a single-level unit with two connections to give you a neat setup. Quick-connecting IDC terminals are on hand to pierce through the outer jacket of your 24 to 16AWG cables and ensure a tight connection. This removes the need for stripping the wire first, so you can whizz through commissioning work.
Blocks like this one are commonly used in process control machine applications. Low power dissipation of 0.56W makes it an energy-efficient choice for your panel. You can install it in a snap by simply clipping it onto a DIN rail. Thanks to integrated shock resistance of up to 5g at 30ms, it keeps ticking along reliably in challenging conditions.

• Durable PA housing offers insulation protection to prevent electric shocks
• ATEX-certified for safe use in potentially explosive environments
• Open side panel for convenient wire adjustments without disassembly
• UL 94-V0 flammability rating means burning stops in less than 10 seconds to prevent the spread of flames
