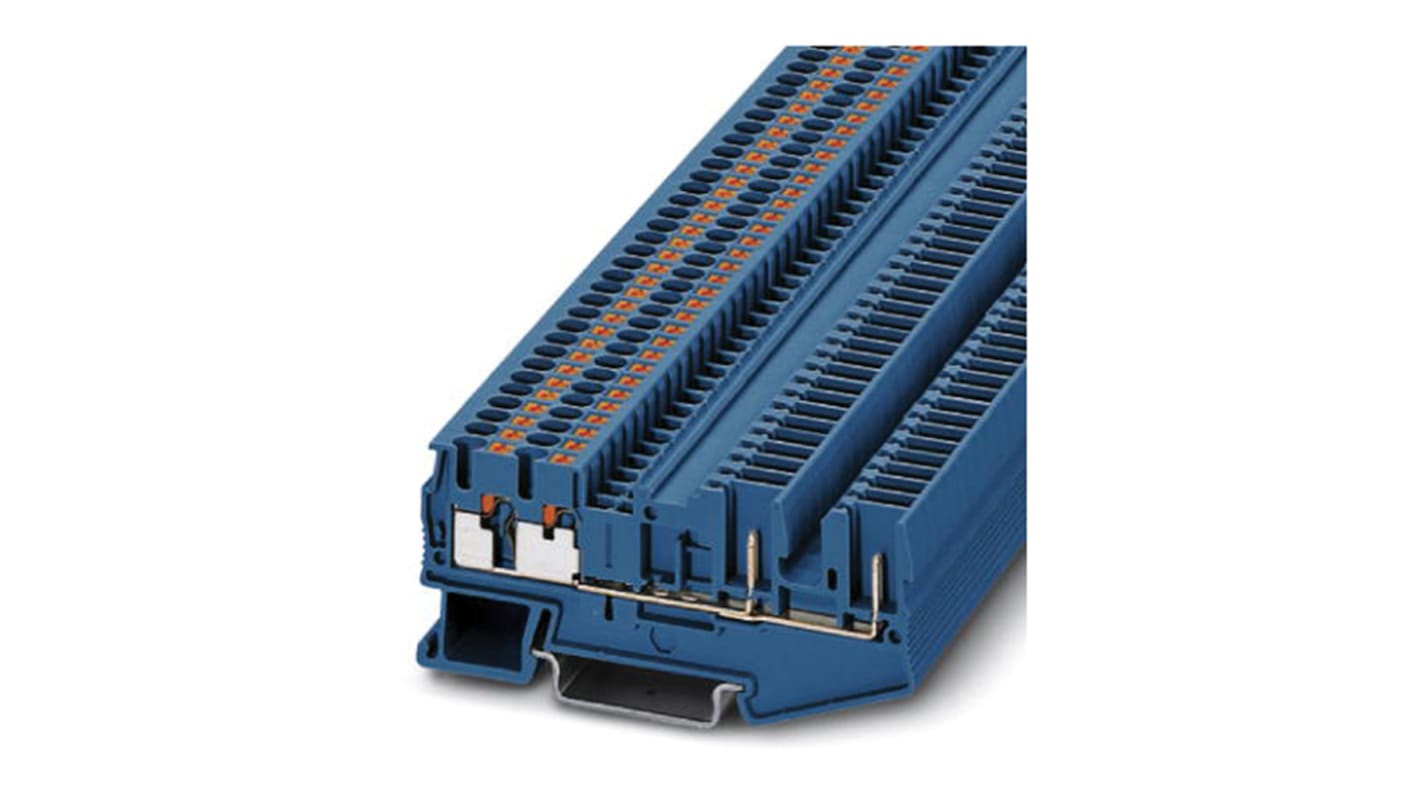

Phoenix Contact 3209675 PT 2.5-QUATTRO/2P BU Series Feed Through Terminal Block Blue, 0.14mm², 4 mm², 1-Level, Plug-In
- RS Stock No.:
- 858-0175
- Mfr. Part No.:
- 3209675
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£78.43
(exc. VAT)
£94.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £78.43 | £1.569 |
*price indicative
- RS Stock No.:
- 858-0175
- Mfr. Part No.:
- 3209675
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Blue | |
| Product Type | Feed Through Terminal Block | |
| Number of Positions | 4 | |
| Number of Levels | 1 | |
| Voltage | 500V | |
| Series | PT 2.5-QUATTRO/2P BU | |
| Cable CSA | 0.14mm², 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Terminal Block Current | 24A | |
| Termination Type | Plug-In | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Blue | ||
Product Type Feed Through Terminal Block | ||
Number of Positions 4 | ||
Number of Levels 1 | ||
Voltage 500V | ||
Series PT 2.5-QUATTRO/2P BU | ||
Cable CSA 0.14mm², 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 12AWG | ||
Terminal Block Current 24A | ||
Termination Type Plug-In | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in / plug connection, number of connections: 4, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, color: blue, mounting type: NS 35/7,5, NS 35/15
Tested for railway applications
