Weidmuller 1790990000 Z Series Beige, 4mm², Double-Level, Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 829-6666
- Mfr. Part No.:
- 1790990000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£17.66
(exc. VAT)
£21.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 320 unit(s) ready to ship
- Plus 220 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.766 | £17.66 |
*price indicative
- RS Stock No.:
- 829-6666
- Mfr. Part No.:
- 1790990000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige | |
| Number of Levels | Double | |
| Series | Z | |
| American Wire Gauge | 30 → 14AWG | |
| Voltage Rating | 800 V | |
| Termination Method | Clamp | |
| Cable CSA | 4mm² | |
| Current Rating | 24A | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +120°C | |
| Hazardous Area Certification | ATEX, IECEx | |
| Standards Met | IEC 60947-7-1 | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige | ||
Number of Levels Double | ||
Series Z | ||
American Wire Gauge 30 → 14AWG | ||
Voltage Rating 800 V | ||
Termination Method Clamp | ||
Cable CSA 4mm² | ||
Current Rating 24A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met IEC 60947-7-1 | ||
- COO (Country of Origin):
- CZ

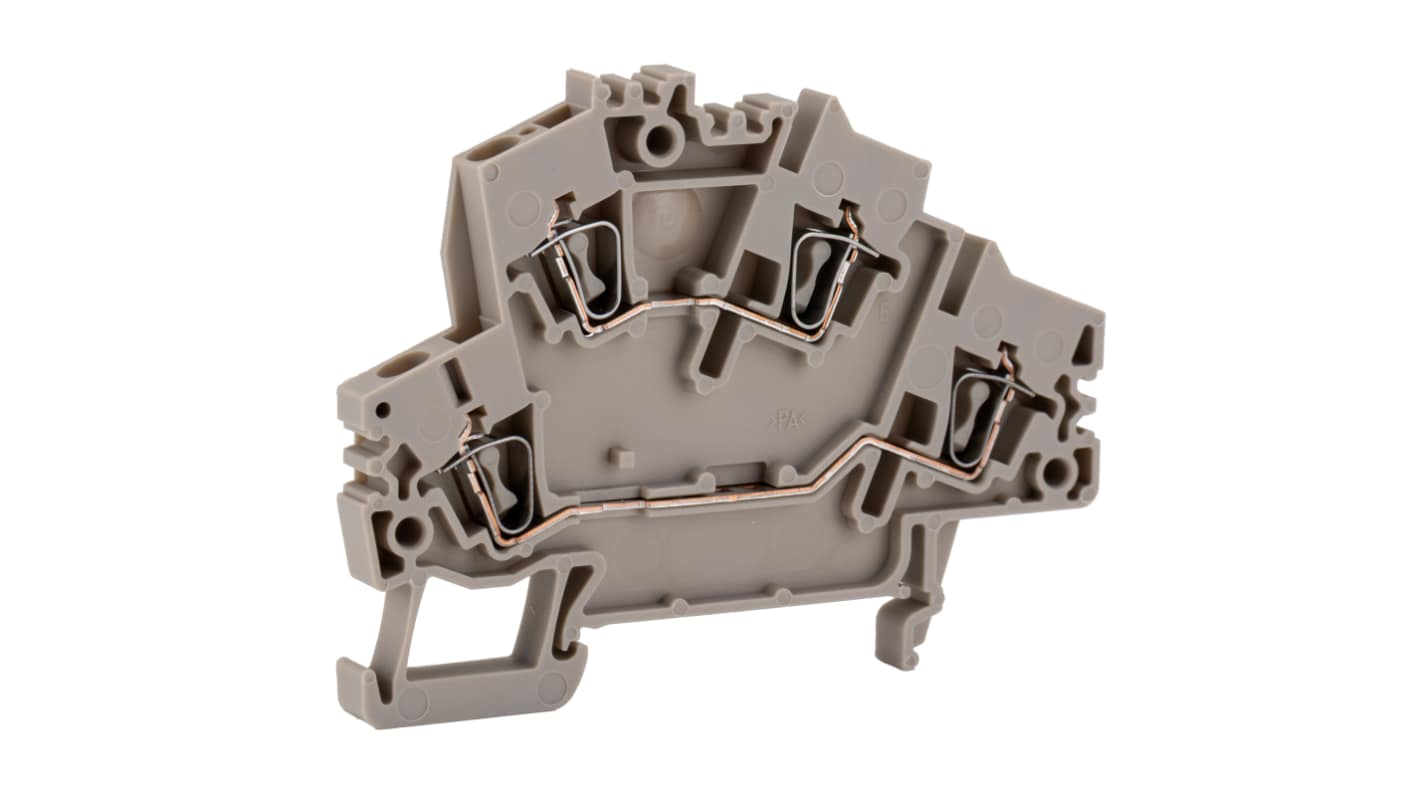

Weidmuller Feed-Through Terminal Block, Snap-On Mounting, 24A Current Rating - Z Series - ZDK 2.5-2
Pass current from one wire to another with this feed-through terminal block from Weidmuller. Thanks to its double-level structure, you can link up to four wires with this unit. A maximum current rating of 24A means it can stand up to the rigours of heavy-duty electrical systems. You can mount this piece in a snap by clipping it to your DIN rail. As the right side is open, you've got free rein to inspect and adjust your cables without taking the block off the rail.
Features & Benefits
• Wemid body is self-extinguishing for safety in the event of a fire
• Long-lasting performance in tough conditions, thanks to a wide operating temperature range between -50°C and +120°C
• Rated impulse withstand voltage of 8kV to stand up to current surges
• Long-lasting performance in tough conditions, thanks to a wide operating temperature range between -50°C and +120°C
• Rated impulse withstand voltage of 8kV to stand up to current surges
Applications
• Solar panels
• Power distribution systems
• Aerospace engineering
• Power distribution systems
• Aerospace engineering
What wire sizes can I fit into this terminal block?
For versatility, this unit takes wire sizes between 30 and 14AWG.
How do I fasten my wires to the block?
You can fasten your wires to this terminal block by inserting their stripped ends into the tension clamp terminals for a secure hold.
