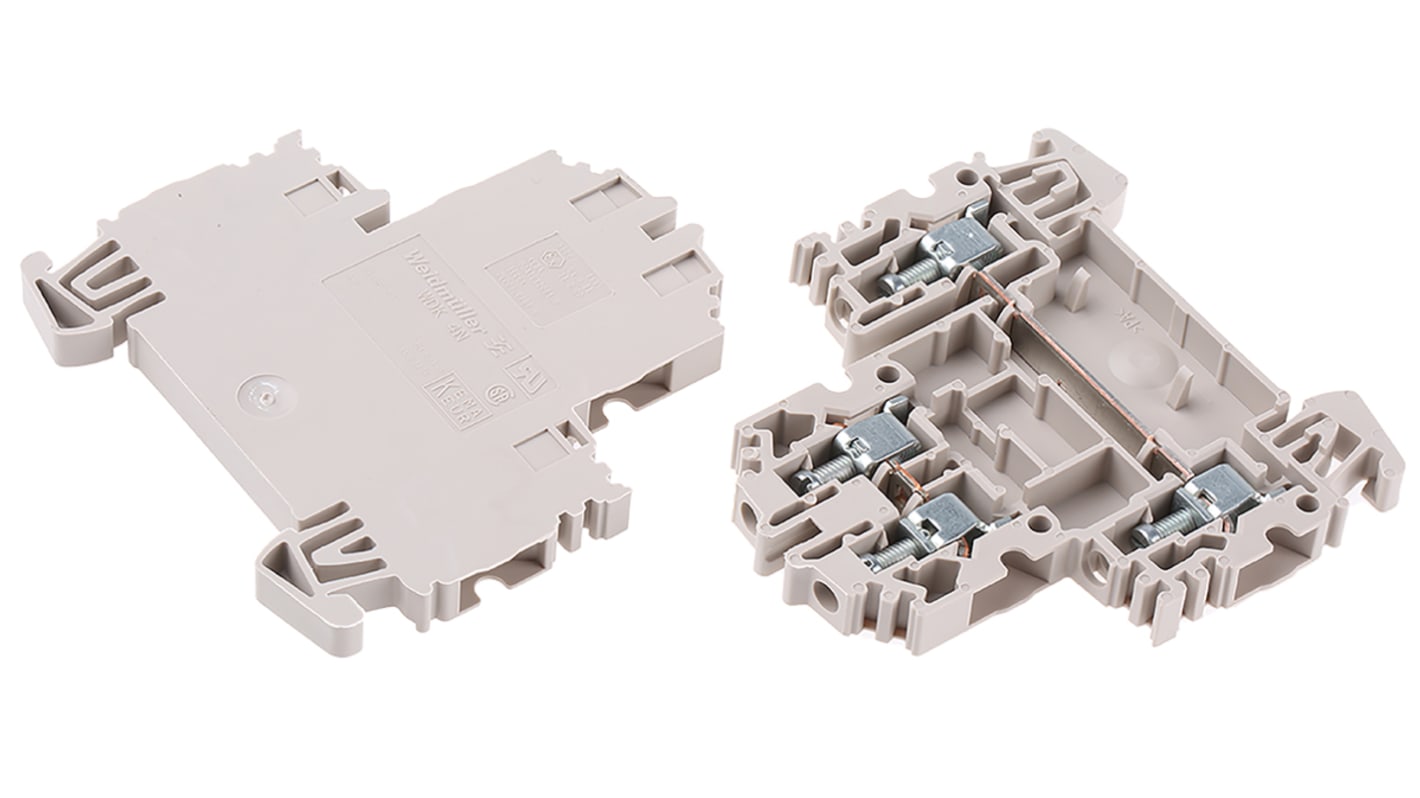

Take your electrical connections up a level with this two-tier terminal block from Weidmuller. It has two clamping points on each level for feeding and connecting multiple conductors in one block. Thanks to its compact dimensions of 60 (H) x 6.1 (W) x 63.25mm (D), it takes up minimal space on your DIN rail. Integrated clips let you snap the block on, so you can mount it in a jiffy. A current rating of 32A means it's suitable for use in high-power circuits.

• Wemid housing is resistant to impact and wear
• Burning stops in 10 seconds or less to prevent the spread of flames in the event of a fire
• Wide operating temperature range between -60°C and +130°C for use in harsh industrial environments

• Electrical distribution
• Panel building
• Switchgear

The clamping-yoke screw terminals on this block lift your wires into the correct position and clamp them tightly to ensure a reliable connection.

Yes, you can use an end cover from the W series (383-0113) on this terminal block to protect against electric shock.

VDE

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
