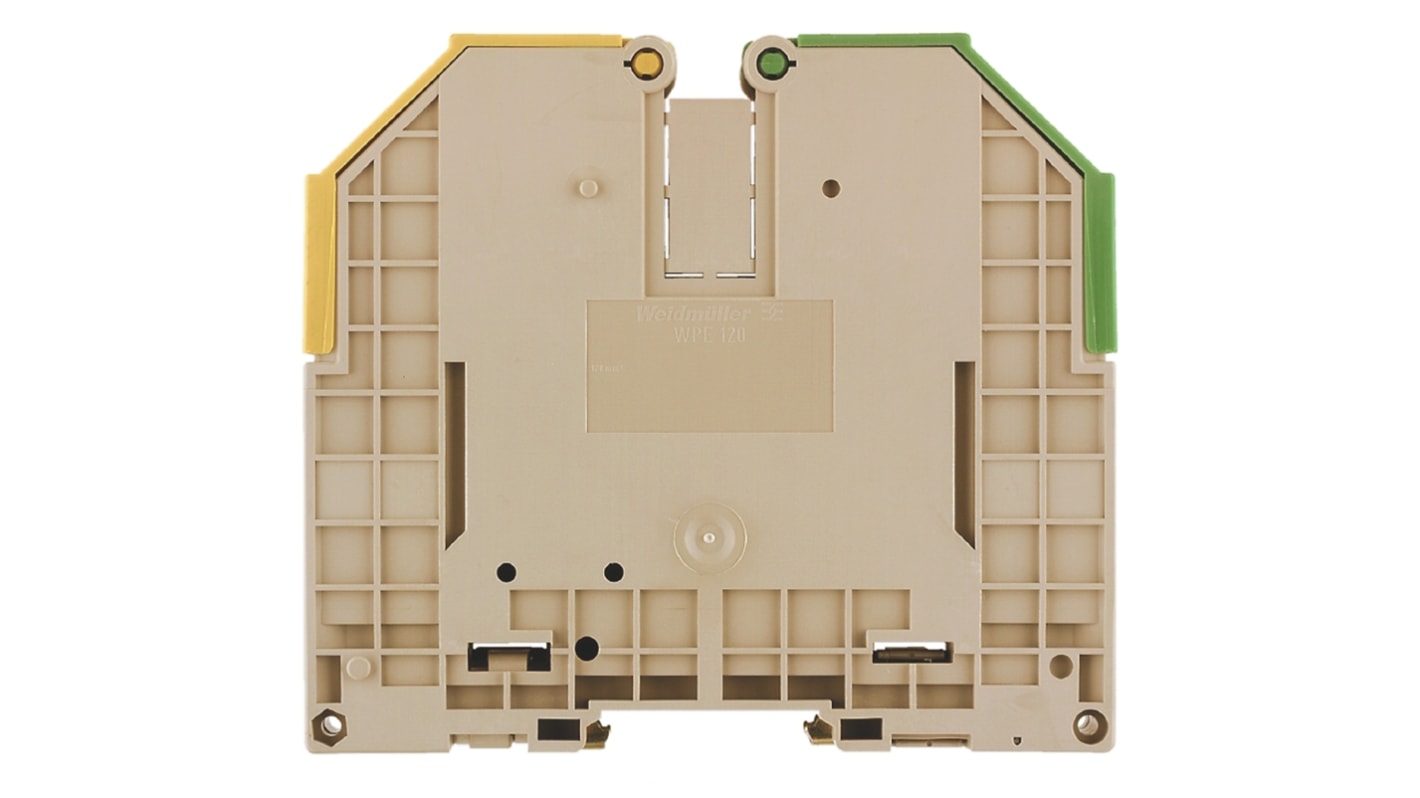

Weidmuller 1019700000 W Series Green, Yellow, 35 → 150mm², Single-Level, Screw Termination

View all DIN Rail Terminal Blocks

Subtotal (1 unit)*

£40.35

(exc. VAT)

£48.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£40.35

*price indicative

Sponsored
Weidmuller Jumper Bars
Weidmuller Jumper Bars
Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications
Explore Weidmuller Jumper Bars
RS Stock No.:
826-3230
Distrelec Article No.:
301-34-301
Mfr. Part No.:
1019700000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Colour

Green, Yellow

Number of Levels

Single

Series

W

Voltage Rating

1 kV

Termination Method

Screw

Cable CSA

35 → 150mm²

Minimum Operating Temperature

-50°C

Maximum Operating Temperature

+120°C

WPE Modular PE Conductor Terminals


WPE Series PE conductor terminal blocks with clamping yoke technology.

Features and Benefits


• Screw connection
• High reliability
• Variety of designs
• Clamping yoke connection


The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
