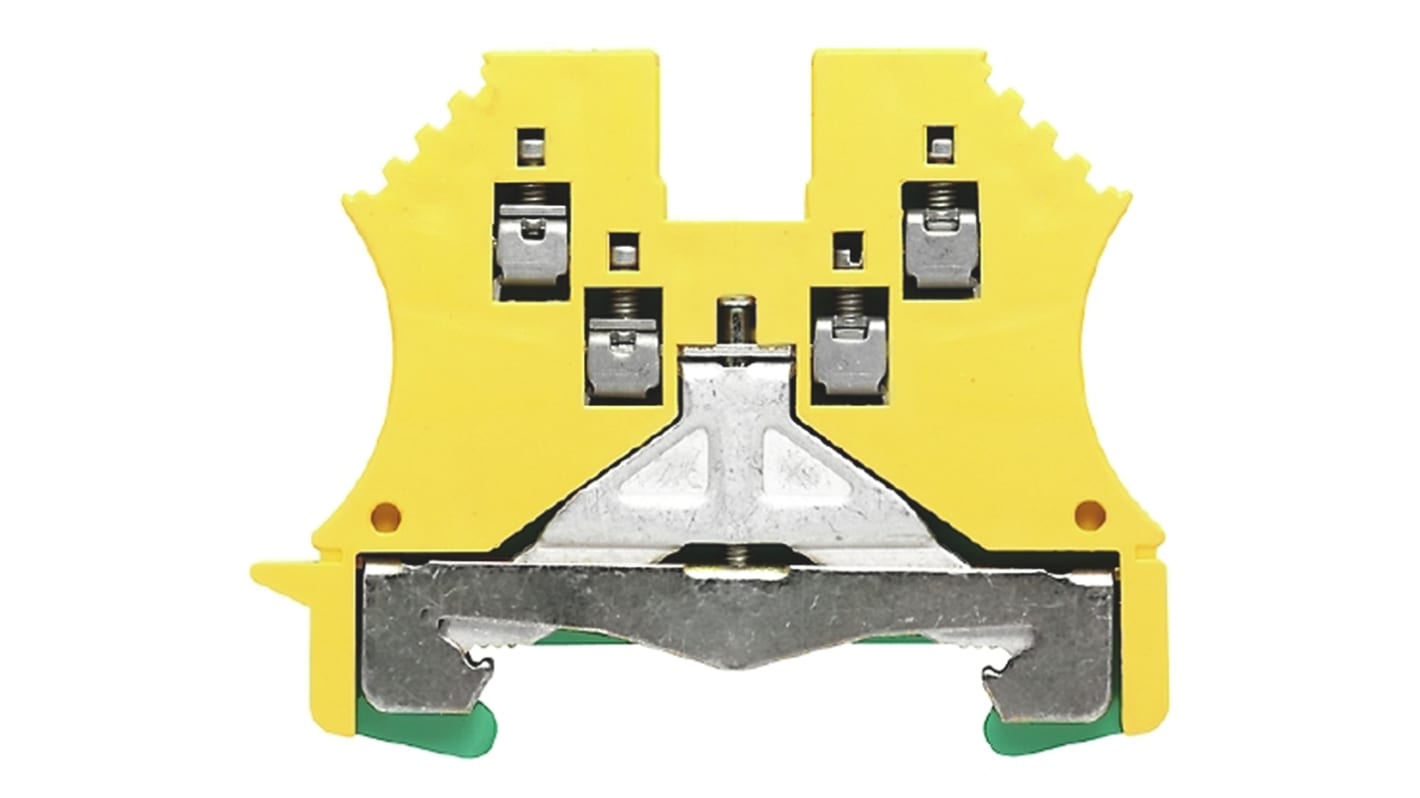

Weidmuller 1016500000 W Series Green, Yellow, 1.5mm², Single-Level, Screw Termination
- RS Stock No.:
- 826-3218
- Distrelec Article No.:
- 301-34-300
- Mfr. Part No.:
- 1016500000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£5.90
(exc. VAT)
£7.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 216 unit(s) ready to ship
- Plus 53 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.90 |
*price indicative
- RS Stock No.:
- 826-3218
- Distrelec Article No.:
- 301-34-300
- Mfr. Part No.:
- 1016500000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Green, Yellow | |
Number of Levels | Single | |
Voltage Rating | 800 V | |
American Wire Gauge | 26 → 12AWG | |
Series | W | |
Termination Method | Screw | |
Cable CSA | 1.5mm² | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Green, Yellow | ||
Number of Levels Single | ||
Voltage Rating 800 V | ||
American Wire Gauge 26 → 12AWG | ||
Series W | ||
Termination Method Screw | ||
Cable CSA 1.5mm² | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
WPE Modular PE Conductor Terminals
WPE Series PE conductor terminal blocks with clamping yoke technology.
Features and Benefits
Screw connection
High reliability
Variety of designs
Clamping yoke connection
High reliability
Variety of designs
Clamping yoke connection
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
