Weidmuller 1022380000 W Series Blue, 4mm², Double-Level, Screw Termination, ATEX, IECEx
- RS Stock No.:
- 826-3186
- Mfr. Part No.:
- 1022380000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£21.90
(exc. VAT)
£26.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 435 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £4.38 | £21.90 |
*price indicative
- RS Stock No.:
- 826-3186
- Mfr. Part No.:
- 1022380000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Blue | |
Number of Levels | Double | |
Voltage Rating | 400 V | |
American Wire Gauge | 30 → 12AWG | |
Series | W | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Fused | No | |
Current Rating | 32A | |
Pitch | 5.1mm | |
Minimum Operating Temperature | -60°C | |
Maximum Operating Temperature | +130°C | |
Hazardous Area Certification | ATEX, IECEx | |
Standards Met | CE, RoHS Compliant | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Blue | ||
Number of Levels Double | ||
Voltage Rating 400 V | ||
American Wire Gauge 30 → 12AWG | ||
Series W | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Fused No | ||
Current Rating 32A | ||
Pitch 5.1mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +130°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met CE, RoHS Compliant | ||
- COO (Country of Origin):
- CZ

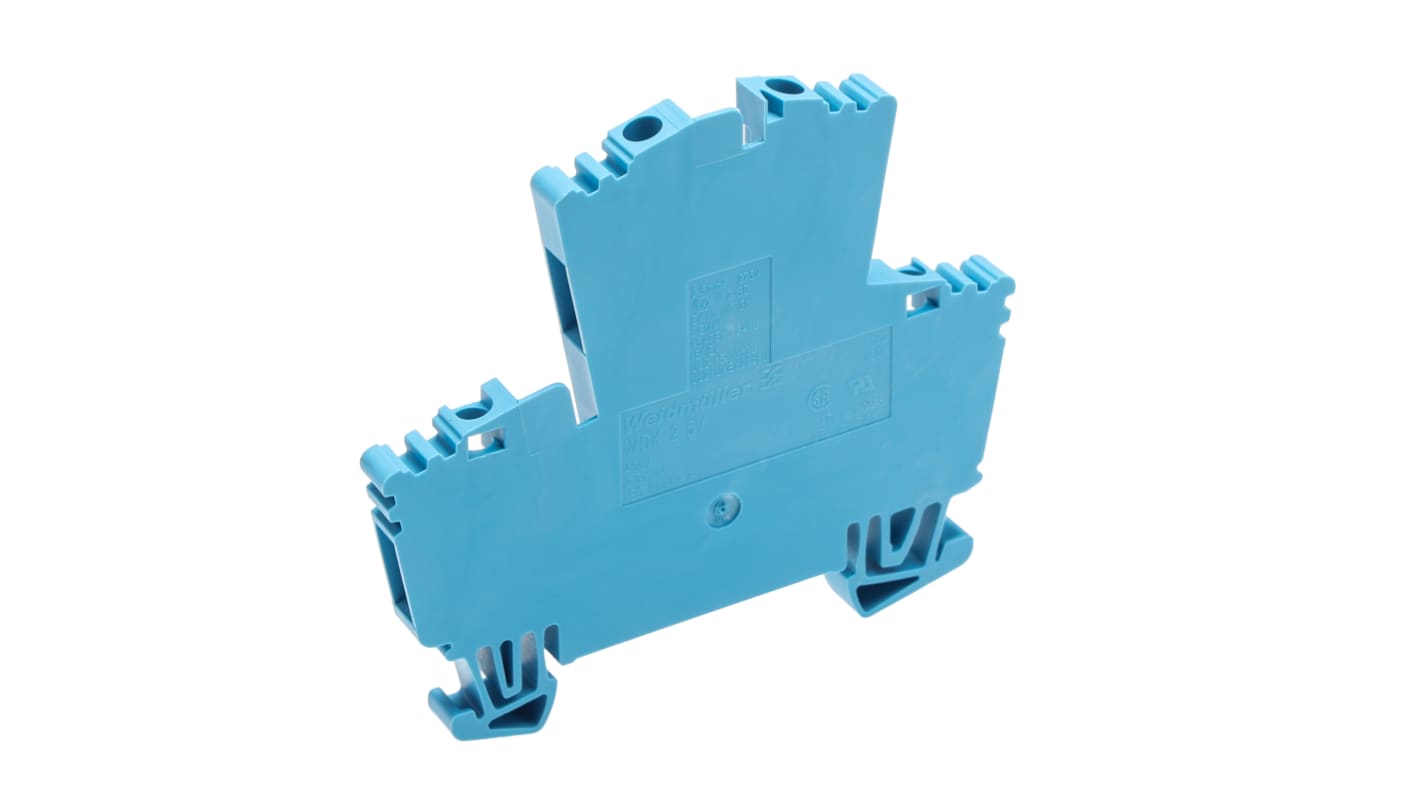

Weidmuller Series W Double Level Terminal Block, 32A Current Rating, 400V Voltage Rating - 1022380000
This double level terminal block is a high-quality component designed for efficient electrical connections. The Weidmuller terminal block features a compact design suitable for various industrial applications. With a pitch of 5.1mm, it comfortably accommodates a wide range of wire sizes, from AWG 30 to 12. The terminal block operates effectively within a temperature range of -60°C to +130°C, ensuring optimal performance in diverse environments.
Features & Benefits
• ATEX certified for safe use in hazardous areas
• IECEx compliant ensuring global compatibility
• Supports a current rating of 32A for robust applications
• Designed for 400V operation, ideal for high voltage systems
• Features screw termination for reliable electrical connections
• Constructed in blue for easy identification in installations
• IECEx compliant ensuring global compatibility
• Supports a current rating of 32A for robust applications
• Designed for 400V operation, ideal for high voltage systems
• Features screw termination for reliable electrical connections
• Constructed in blue for easy identification in installations
Applications
• Used for connecting multiple conductors in panels
• Ideal for automation systems requiring secure wire connections
• Suited for electrical and mechanical industry
• Effective in signal and data feed-through scenarios
• Ideal for automation systems requiring secure wire connections
• Suited for electrical and mechanical industry
• Effective in signal and data feed-through scenarios
What is the maximum wire cross-section this connection supports?
The connection supports a maximum wire cross-section of 4mm², suitable for a variety of conductor sizes.
How does the temperature range affect operational reliability?
Operating between -60°C and +130°C ensures reliable performance in extreme environments, enhancing durability in diverse applications.
What type of connection mechanism is utilised in this terminal block?
The terminal block employs a screw connection mechanism, providing secure and stable electrical connections.
Can this terminal block be used in environments with explosive atmospheres?
Yes, it is ATEX certified, making it suitable for use in potentially explosive atmospheres where safety is a priority.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
