- RS Stock No.:
- 823-9672
- Mfr. Part No.:
- 7910300000
- Brand:
- Weidmüller
86 In stock - FREE next working day delivery available
Price Each
£4.03
(exc. VAT)
£4.84
(inc. VAT)
Units | Per unit |
---|---|
1 - 5 | £4.03 |
6 - 11 | £3.82 |
12 + | £3.66 |
- RS Stock No.:
- 823-9672
- Mfr. Part No.:
- 7910300000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details

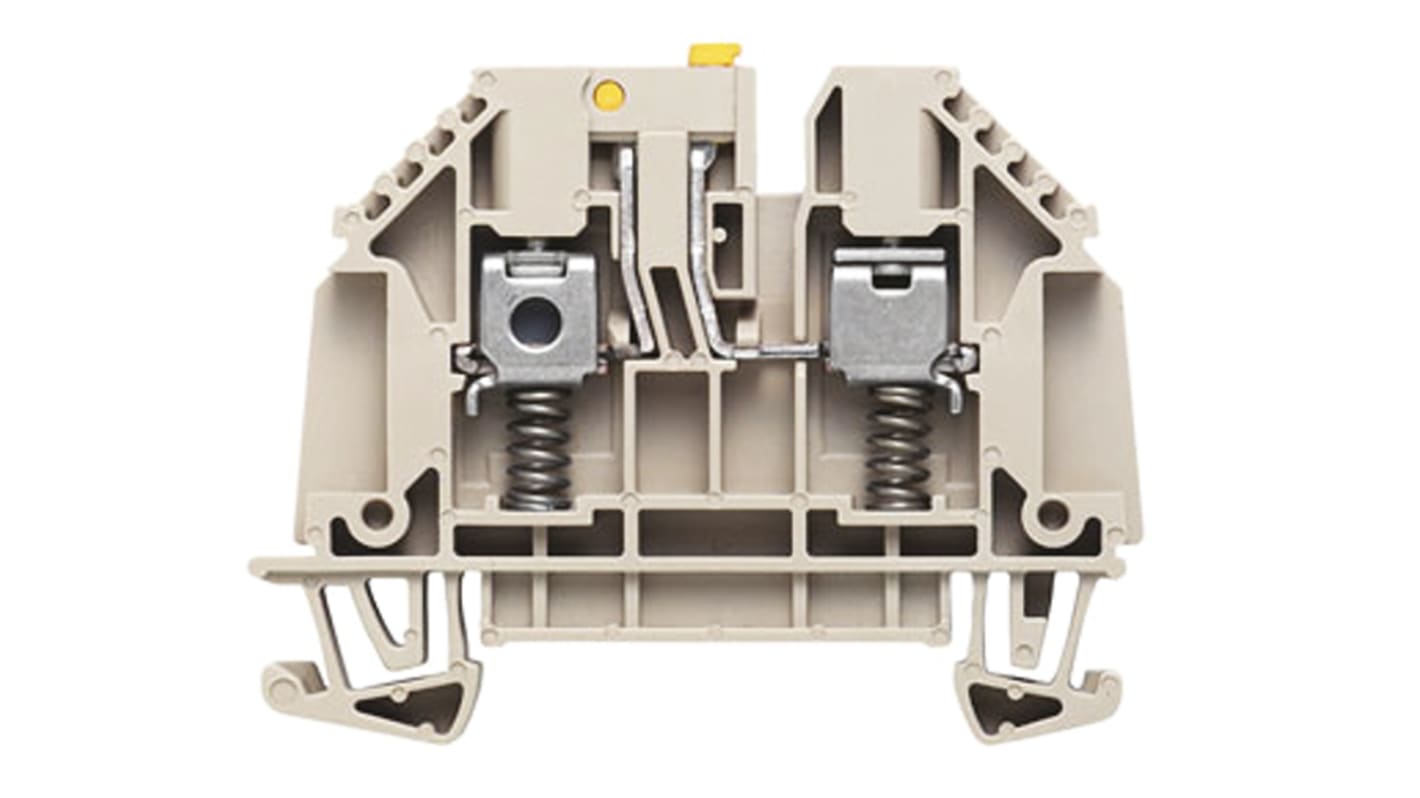

WTR Series Test Disconnect Terminal Blocks
Weidmuller W series (WTR) test quick disconnect terminal blocks with clamping yoke technology.
Features and Benefits
High reliability
Variety of designs
Clamping yoke connections
Product Application Information
Klippon® Connect provides a proven response to a large range of different requirements.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Beige |
Number of Levels | Single |
Series | W |
American Wire Gauge | 26 → 10AWG |
Termination Method | Screw |
Voltage Rating | 500 V |
Current Rating | 32A |
Pitch | 6.1mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
