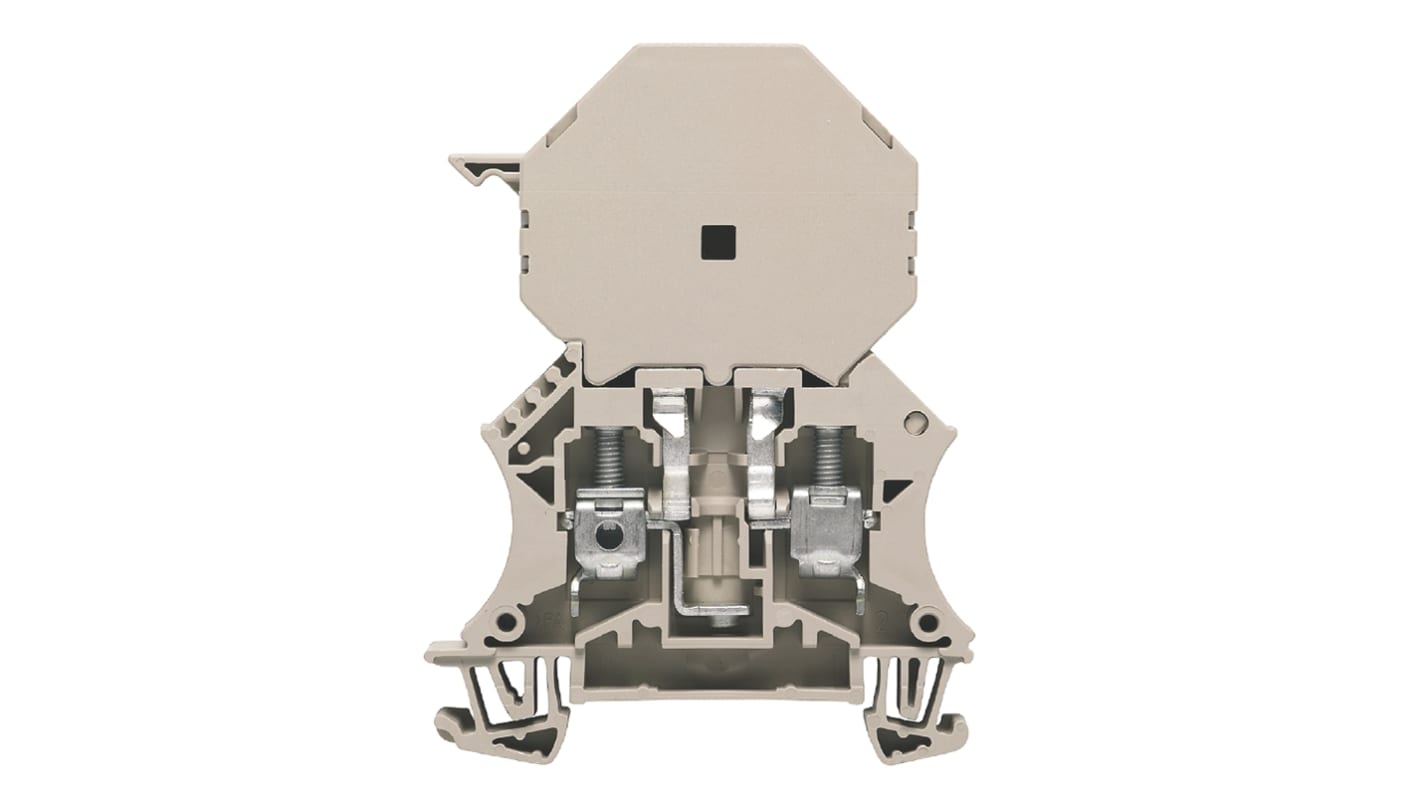

Weidmüller W Series Beige Fused DIN Rail Terminal, Single-Level, Screw Termination, Fused
- RS Stock No.:
- 823-9562
- Mfr. Part No.:
- 1014400000
- Brand:
- Weidmüller
28 In stock - FREE next working day delivery available
Added
Price Each
£10.23
(exc. VAT)
£12.28
(inc. VAT)
| Units | Per unit |
| 1 + | £10.23 |
- RS Stock No.:
- 823-9562
- Mfr. Part No.:
- 1014400000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
WSI Fuse Terminals
W-Series (WSI) fuse terminals.
Screw connection
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
|---|---|
| Colour | Beige |
| Number of Levels | Single |
| Series | W |
| American Wire Gauge | 20 → 8AWG |
| Termination Method | Screw |
| Fused | Yes |
| Voltage Rating | 500 V ac |
| Current Rating | 6.3A |
| Pitch | 11.9mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
