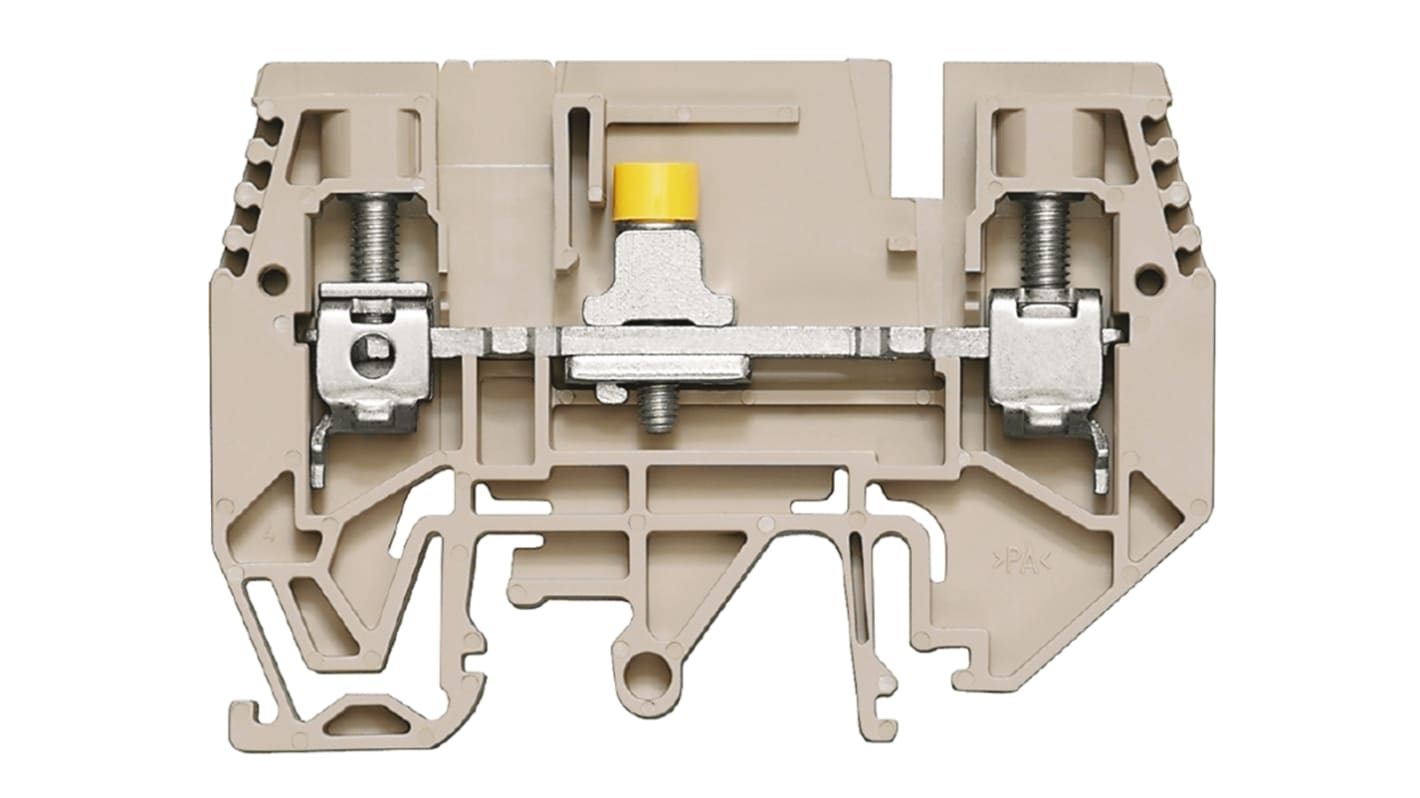

Weidmüller W Series Brown Disconnect Terminal Block, Single-Level, Screw Termination
- RS Stock No.:
- 823-9641
- Mfr. Part No.:
- 1934790000
- Brand:
- Weidmüller
Available to back order for despatch 18/06/2024
Added
Price Each
£3.58
(exc. VAT)
£4.30
(inc. VAT)
| Units | Per unit |
| 1 + | £3.58 |
- RS Stock No.:
- 823-9641
- Mfr. Part No.:
- 1934790000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
WTQ Series Test Disconnect Terminal Blocks
Test-disconnect terminal blocks feature both spring and screw connection technology that allow for creating the converter circuits needed for measuring current, voltage and power.
Features and Benefits
• Current and voltage transformer wiring
• Measures parameters safely and sophisticated
• Snap-on mounting
• Measures parameters safely and sophisticated
• Snap-on mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
|---|---|
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 20 → 8AWG |
| Series | W |
| Termination Method | Screw |
| Current Rating | 57A |
| Voltage Rating | 500 V |
| Pitch | 7.9mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
