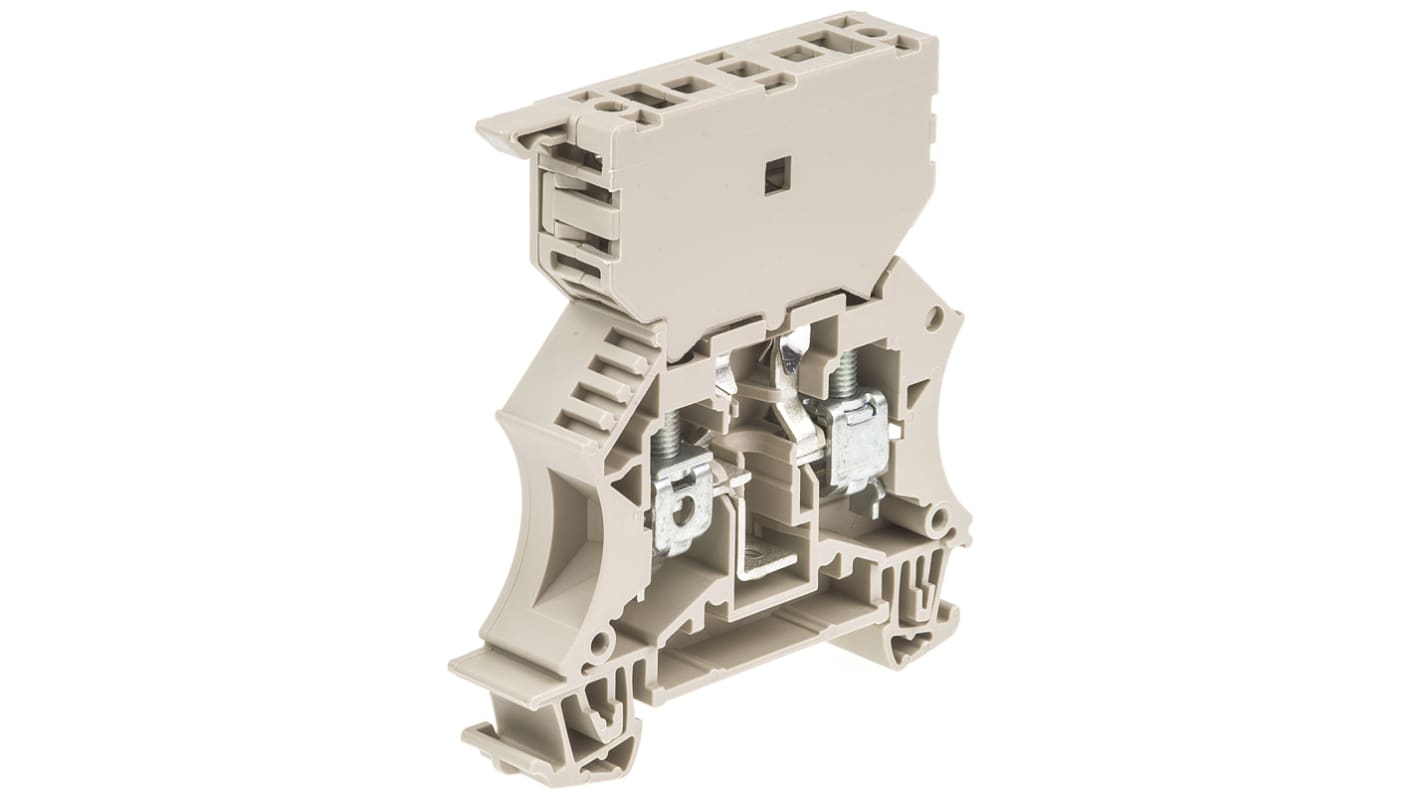

Short circuits and current overloads will have no place in your electrical system with this fused DIN rail terminal from Weidmuller. By using it to attach wires to circuits, you'll get a safe and secure connection for your devices. Thanks to the screw connections, you can simply screw your cables in place to keep them stable in demanding operations. Its rugged Wemid body has self-extinguishing properties, so you can rest assured that it won't fan the flames in the event of a fire.

• Rated impulse withstand voltage of 6kV for protection against powerful surges
• Snaps into place on a DIN rail for quick, tool-free installation
• Broad operating temperature range between -50°C and +120°C for safe use in harsh settings

• Safety systems
• Networking equipment
• Electrical engineering

This terminal is designed for use with a glass cartridge fuse. It has a pivoting fuse holder, so you can easily adjust the position of the fuse to fit into different applications.

CSA Certified; UL Listed; Lloyds Register of Shipping

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
