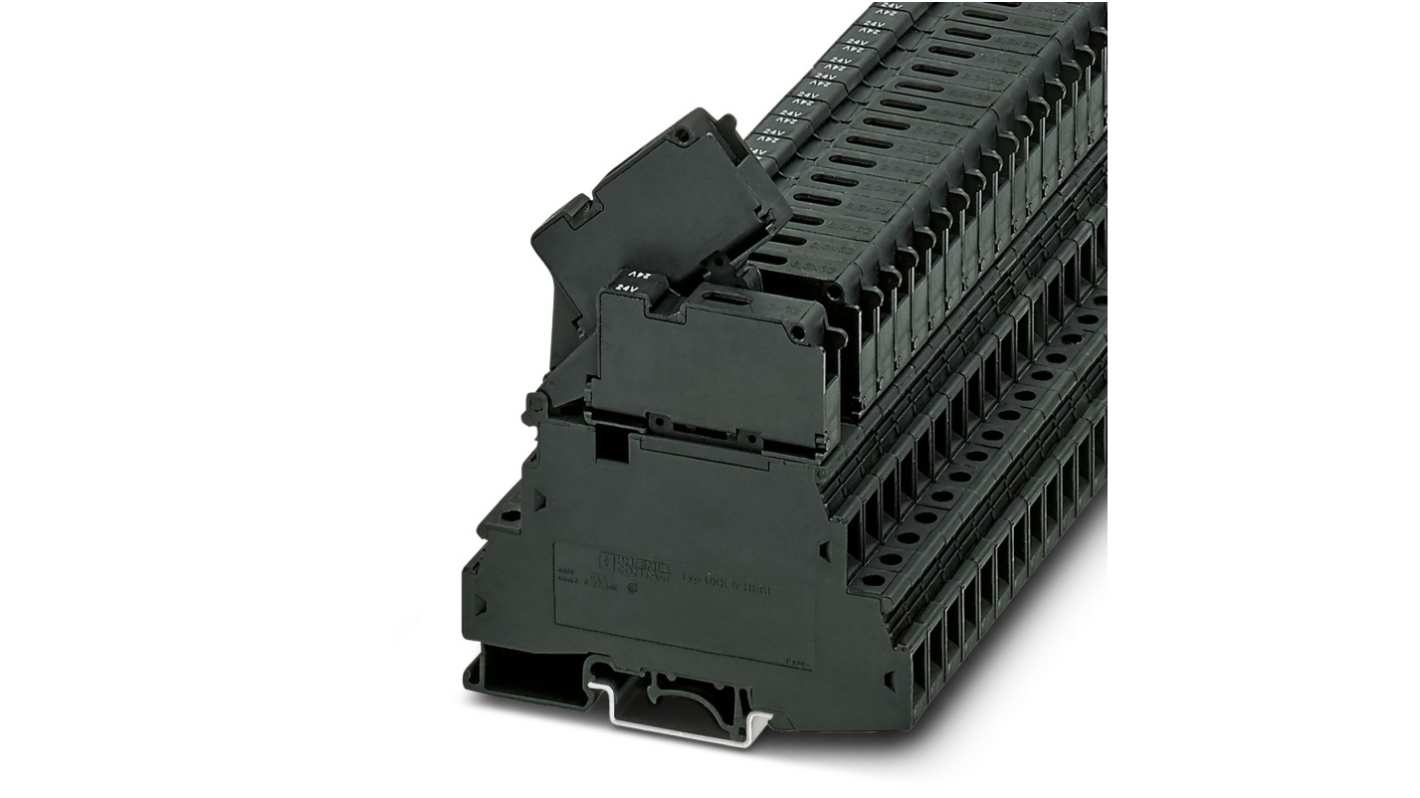

Phoenix Contact 0711632 UKK 5-HESILED 24 (6.3X32) Series Fuse Modular Terminal Block Black, 0.2mm², 4 mm², 2-Level

RS Stock No.:: 803-8378
Mfr. Part No.:: 0711632
Brand:: Phoenix Contact

Phoenix Contact 0711632 UKK 5-HESILED 24 (6.3X32) Series Fuse Modular Terminal Block Black, 0.2mm², 4 mm², 2-Level

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Phoenix Contact Jumper Bars

Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.

Buy Phoenix Contact Jumper Bars

RS Stock No.:: 803-8378
Mfr. Part No.:: 0711632
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Colour	Black
	Product Type	Fuse Modular Terminal Block
	Sub Type	Fuse Modular
	Number of Levels	2
	Series	UKK 5-HESILED 24 (6.3X32)
	Voltage	400V
	Cable CSA	0.2, 4mm²
	Minimum Wire Size AWG	24AWG
	Fused	Yes
	Maximum Wire Size AWG	12AWG
	Termination Type	Screw
	Terminal Block Current	6.3A
	Hazardous Area Certification	No
	Standards/Approvals	CSA, IEC 60947-7-3, cULus, EAC

	Select all
	Brand Phoenix Contact
	Colour Black
	Product Type Fuse Modular Terminal Block
	Sub Type Fuse Modular
	Number of Levels 2
	Series UKK 5-HESILED 24 (6.3X32)
	Voltage 400V
	Cable CSA 0.2, 4mm²
	Minimum Wire Size AWG 24AWG
	Fused Yes
	Maximum Wire Size AWG 12AWG
	Termination Type Screw
	Terminal Block Current 6.3A
	Hazardous Area Certification No
	Standards/Approvals CSA, IEC 60947-7-3, cULus, EAC

Datasheet 0818153

COO (Country of Origin):: PL

Phoenix Contact, Fused DIN Rail Terminals

The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.

Features and Benefits

• Large-surface labeling

• Safety lever locked in end position

• Hinged disconnect lever

• Flip-open compartment to accommodate a fuse

• Options to accommodate 5x20mm and 6.3x32mm fuses

• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)

Typical Applications

• Protecting critical sensor or relay equipment

Note

Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V

Approvals

UL recognised component, CSA certified
