Phoenix Contact 0711580 UKK 5-HESILED 60 (5X20) Series Fuse Modular Terminal Block Black, 0.2mm², 4 mm², 2-Level Fused,
- RS Stock No.:
- 803-8362
- Mfr. Part No.:
- 0711580
- Brand:
- Phoenix Contact

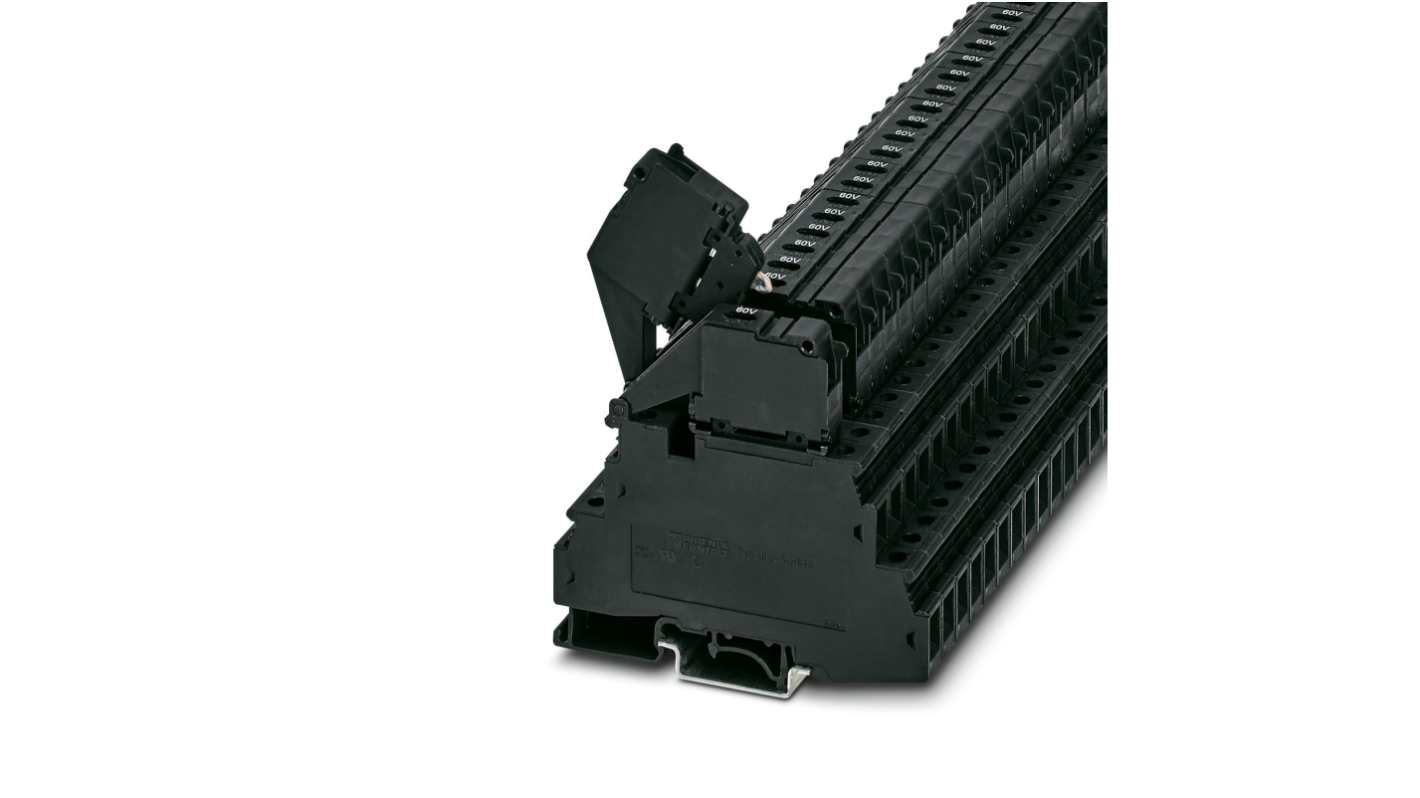

Image representative of range
Subtotal (1 pack of 50 units)*
£855.45
(exc. VAT)
£1,026.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £17.109 | £855.45 |
*price indicative
- RS Stock No.:
- 803-8362
- Mfr. Part No.:
- 0711580
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black | |
| Product Type | Fuse Modular Terminal Block | |
| Sub Type | Fuse Modular | |
| Number of Levels | 2 | |
| Series | UKK 5-HESILED 60 (5X20) | |
| Voltage | 400V | |
| Minimum Wire Size AWG | 24AWG | |
| Cable CSA | 0.2mm², 4mm² | |
| Fused | Yes | |
| Maximum Wire Size AWG | 12AWG | |
| Terminal Block Current | 6.3A | |
| Termination Type | Screw | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC/EN, EAC, cULus, CSA | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Product Type Fuse Modular Terminal Block | ||
Sub Type Fuse Modular | ||
Number of Levels 2 | ||
Series UKK 5-HESILED 60 (5X20) | ||
Voltage 400V | ||
Minimum Wire Size AWG 24AWG | ||
Cable CSA 0.2mm², 4mm² | ||
Fused Yes | ||
Maximum Wire Size AWG 12AWG | ||
Terminal Block Current 6.3A | ||
Termination Type Screw | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC/EN, EAC, cULus, CSA | ||
- COO (Country of Origin):
- PL
Universal Terminals
Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.
Individual terminals and complementary accessories
Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U
