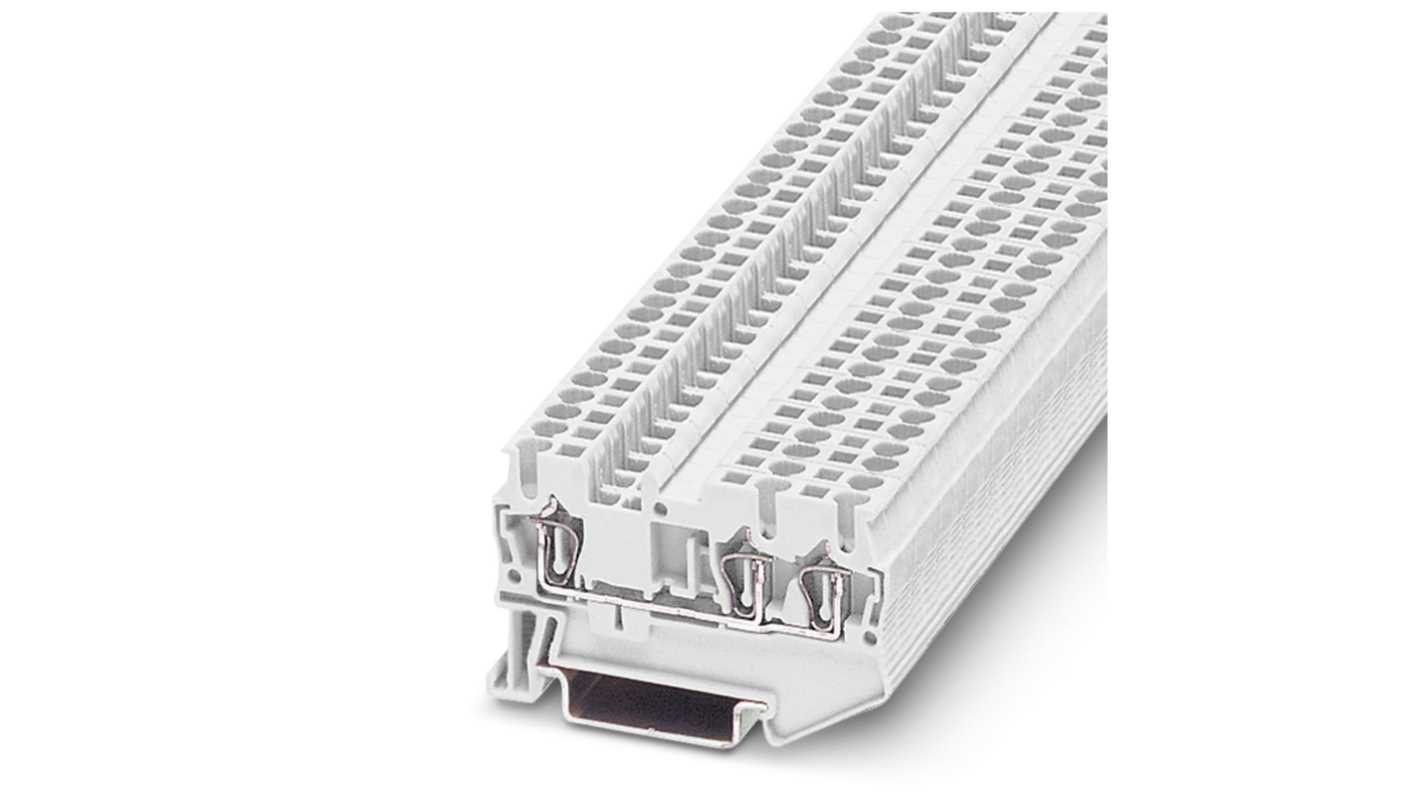

Phoenix Contact3037339 ST 2.5-TWIN WH Series Feed Through Terminal Block, Single-Level, Spring Clamp Termination

RS Stock No.:: 803-7482
Mfr. Part No.:: 3037339
Brand:: Phoenix Contact

Phoenix Contact3037339 ST 2.5-TWIN WH Series Feed Through Terminal Block, Single-Level, Spring Clamp Termination

Price Each (In a Pack of 50)**

£1.189

(exc. VAT)

£1.427

(inc. VAT)

Available to back order for despatch 13/02/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
50 +	£1.189	£59.45

**price indicative

RS Stock No.:: 803-7482
Mfr. Part No.:: 3037339
Brand:: Phoenix Contact

Feed-through terminal block - ST 2,5-TWIN WH - 3037339

ST 4-FSI/C DIN Rail Terminal Blocks - Phoenix Contact

The ST 4-FSI/C range from Phoenix Contact are DIN rail, spring-cage terminal blocks that feature a C type fuse. This range of DIN rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! Simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. DIN rails NS 35/7.5 and NS 35/15 are supported for the ST 4-FSI/C range of terminal blocks and the blocks have a nominal current of 30 A with a nominal voltage of 400 V.

The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².

Features and benefits:

Fused for added protection

The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element

Versions with LED for easily indicating a fuse that has been blown

Fits on an NS 35/7.5 and NS35/15 DIN rail

Operating temperatures of -60°C to 85°C

Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution

Typical Applications:

• Tested for railway applications

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

If you'd like to learn more about Complete Line, please click here.

Note

Cable cross-sectional area quoted refers to cable with rigid conductors

Certificate No.

KEMA 00ATEX2052 U

Group and Category

II 2 G D Ex e II

Attribute	Value
Colour	White
Number of Levels	Single
Series	ST 2.5-TWIN WH
Termination Method	Spring Clamp
Voltage Rating	800 V
Current Rating	28A
Model Number	ST 2,5-TWIN WH
