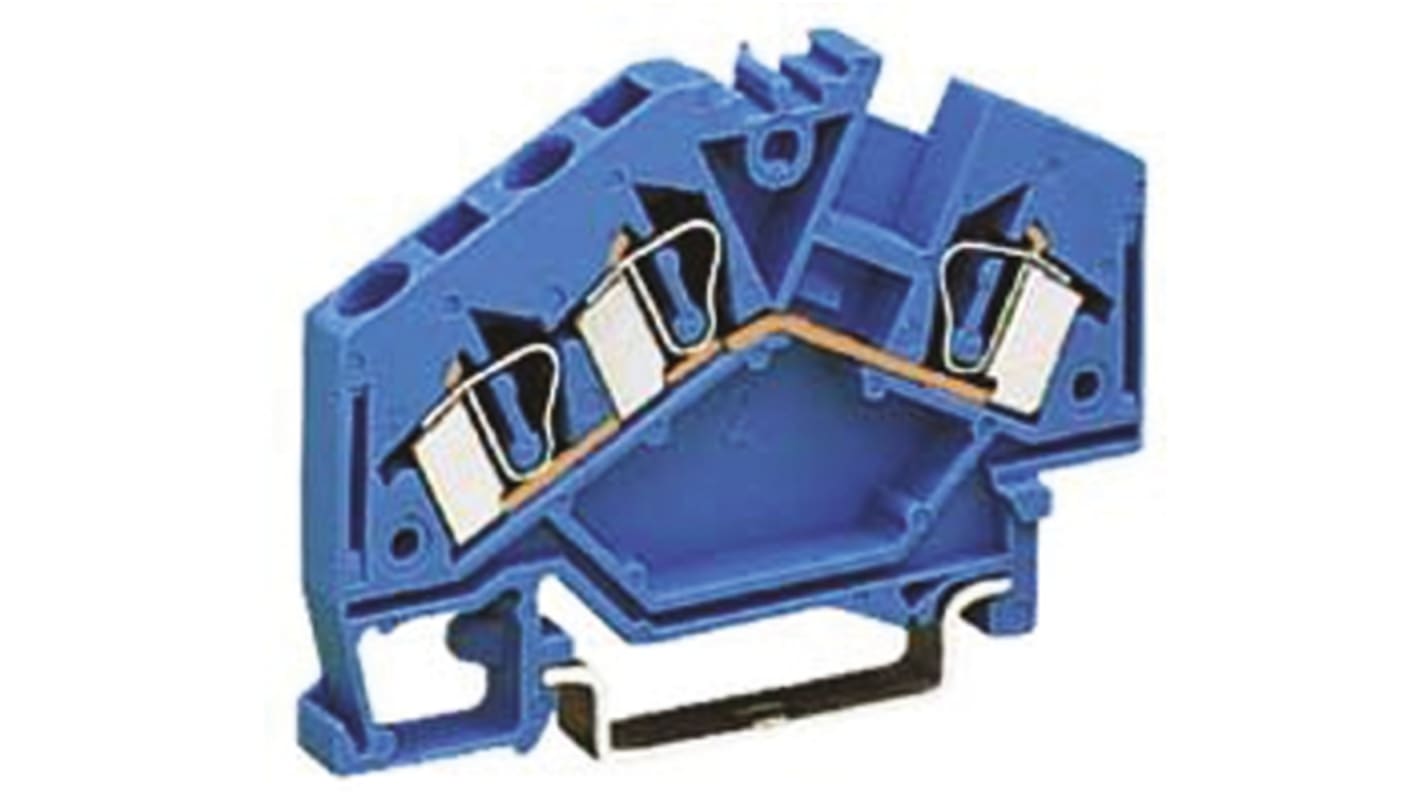

WAGO 281-651 281 Series Feed Through Terminal Block Blue, 4mm², 1-Level, Cage Clamp, IECEx/ATEX
- RS Stock No.:
- 784-0432
- Mfr. Part No.:
- 281-651
- Brand:
- WAGO
Subtotal (1 pack of 5 units)*
£8.23
(exc. VAT)
£9.875
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.646 | £8.23 |
*price indicative
- RS Stock No.:
- 784-0432
- Mfr. Part No.:
- 281-651
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Feed Through Terminal Block | |
| Colour | Blue | |
| Sub Type | Angled Type | |
| Number of Levels | 1 | |
| Number of Positions | 3 | |
| Series | 281 | |
| Voltage | 800V | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 6mm | |
| Termination Type | Cage Clamp | |
| Terminal Block Current | 32A | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Feed Through Terminal Block | ||
Colour Blue | ||
Sub Type Angled Type | ||
Number of Levels 1 | ||
Number of Positions 3 | ||
Series 281 | ||
Voltage 800V | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 28AWG | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 6mm | ||
Termination Type Cage Clamp | ||
Terminal Block Current 32A | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- PL
Cage Clamp - 281 Series
Feed-through terminal connections for mounting on DIN-type rails. These conductor-through terminals feature cage clamp® technology for ultra-quick connection. The terminal blocks are front-wired. Intermediate or end plates are also available.
Features and Benefits
• 28-12 AWG
• Cage Clamp Connection
• 800 V measured voltage
• 8 k V measured shock voltage
• 32 A Current intensity
• TS 35 mounting
281 Series
