WAGO 2004-1404 TOPJOB S, 2004 Series Blue, 4mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 758-1767
- Mfr. Part No.:
- 2004-1404
- Brand:
- WAGO
Subtotal (1 pack of 10 units)*
£15.15
(exc. VAT)
£18.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.515 | £15.15 |
*price indicative
- RS Stock No.:
- 758-1767
- Mfr. Part No.:
- 2004-1404
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Blue | |
| Number of Levels | Single | |
| Voltage Rating | 550 V | |
| American Wire Gauge | 20 → 10AWG | |
| Series | TOPJOB S, 2004 | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 4mm² | |
| Fused | No | |
| Current Rating | 32A | |
| Pitch | 6.2mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +105°C | |
| Hazardous Area Certification | ATEX, IECEx | |
| Standards Met | CSA | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Blue | ||
Number of Levels Single | ||
Voltage Rating 550 V | ||
American Wire Gauge 20 → 10AWG | ||
Series TOPJOB S, 2004 | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 4mm² | ||
Fused No | ||
Current Rating 32A | ||
Pitch 6.2mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met CSA | ||
- COO (Country of Origin):
- DE

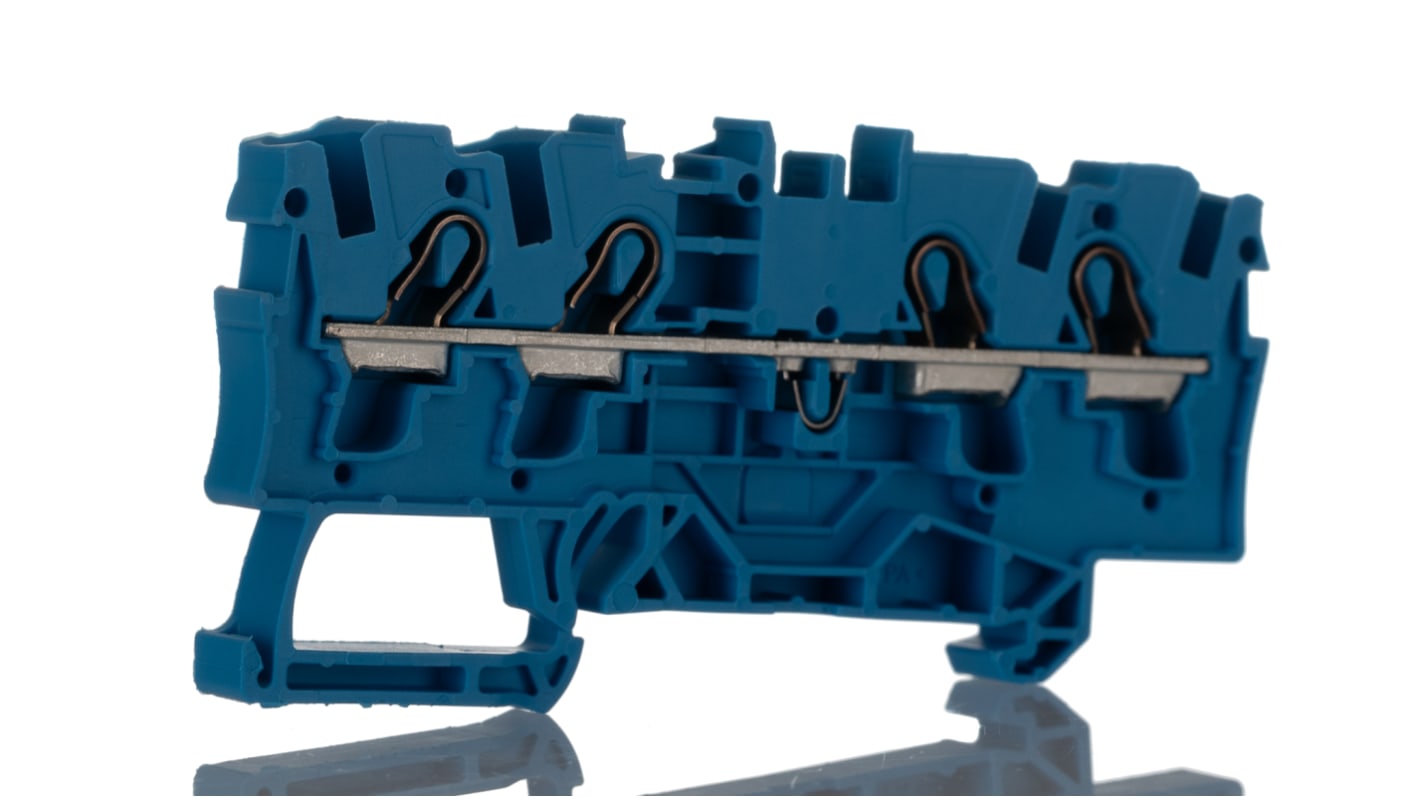

WAGO TOPJOB S and 2004 Series DIN Rail Terminal Block, 20 to 10 AWG, 550V Voltage Rating - 2004-1404
This DIN rail terminal block by WAGO is available with a current rating of 32A and a blue colour. It offers reliable connectivity for various applications.
Features & Benefits
• Push-in cage clamp terminal block for easy installation
• Voltage rating of 550V for safe operation
• ATEX and IECEx certified for hazardous areas
• Voltage rating of 550V for safe operation
• ATEX and IECEx certified for hazardous areas
Applications
• Ideal for use in industrial automation systems
• Suitable for electrical control panel wiring
• Can be used for electrical distribution boards
• Suitable for electrical control panel wiring
• Can be used for electrical distribution boards
Can it be used in hazardous areas?
Yes, this terminal block is ATEX and IECEx certified for hazardous areas.
Will it accommodate different wire sizes?
The terminal block supports wire sizes from 20 to 10 AWG.
Is it easy to install?
Yes, the push-in cage clamp design allows for quick and hassle-free installations.
TOPJOB S Series
A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
