- RS Stock No.:
- 768-4686
- Mfr. Part No.:
- 1173910000
- Brand:
- Weidmüller
55 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£19.794
(exc. VAT)
£23.753
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 25 | £19.794 | £98.97 |
30 - 55 | £18.802 | £94.01 |
60 + | £18.012 | £90.06 |
*price indicative |
- RS Stock No.:
- 768-4686
- Mfr. Part No.:
- 1173910000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details

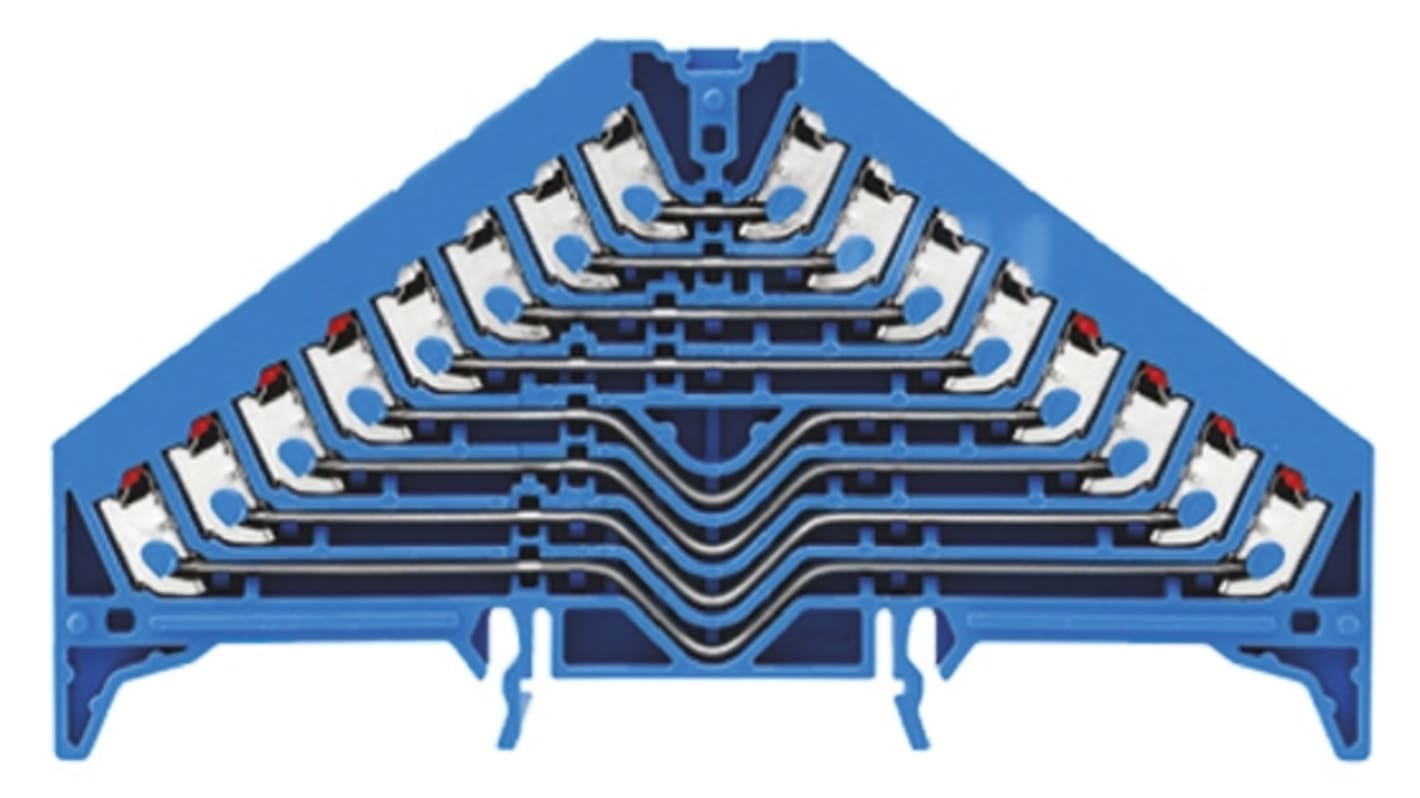

Weidmuller DIN Rail Terminal Block, 250V Voltage Rating, 4kV Rated Impulse Withstand Voltage - P Series - 1173910000
Need more space for multiple connections in your setup? Use this DIN rail terminal block from Weidmuller to give multiple systems a place to call home. The unit lets you link four, eight and 16-channel feeds in a jiffy thanks to the push-in connection technology. This means it can distribute over 1700 signals per metre for use in complex networks. Thanks to its red and white colour-coded actuators, it's a walk in the park to assign wires to their correct position.
Features & Benefits
• Compact dimensions of 65.5 (L) x 9.2 (W) x 120mm (H) to maximise available space in your setup
• Operates in extreme temperatures from -50°C to +130°C for use in demanding applications
• Accepts wires sized between 24 and 16AWG for versatility
• Snaps onto your rail for ease of installation
• Operates in extreme temperatures from -50°C to +130°C for use in demanding applications
• Accepts wires sized between 24 and 16AWG for versatility
• Snaps onto your rail for ease of installation
Applications
• Manufacturing industry
• Telecommunications networks
• Automated systems
• Telecommunications networks
• Automated systems
Can I use an end cover plate with this terminal block?
Yes. You can use a partition plate or cover to minimise the risk of electric shock and keep your connections safe from contaminants.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Blue |
Number of Levels | Octuple |
American Wire Gauge | 24 → 16AWG |
Series | PRV 8 |
Termination Method | Push In |
Cable CSA | 1.5mm² |
Current Rating | 8A |
Voltage Rating | 250 V |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +130°C |
Standards Met | CE, CSA, cURus |
