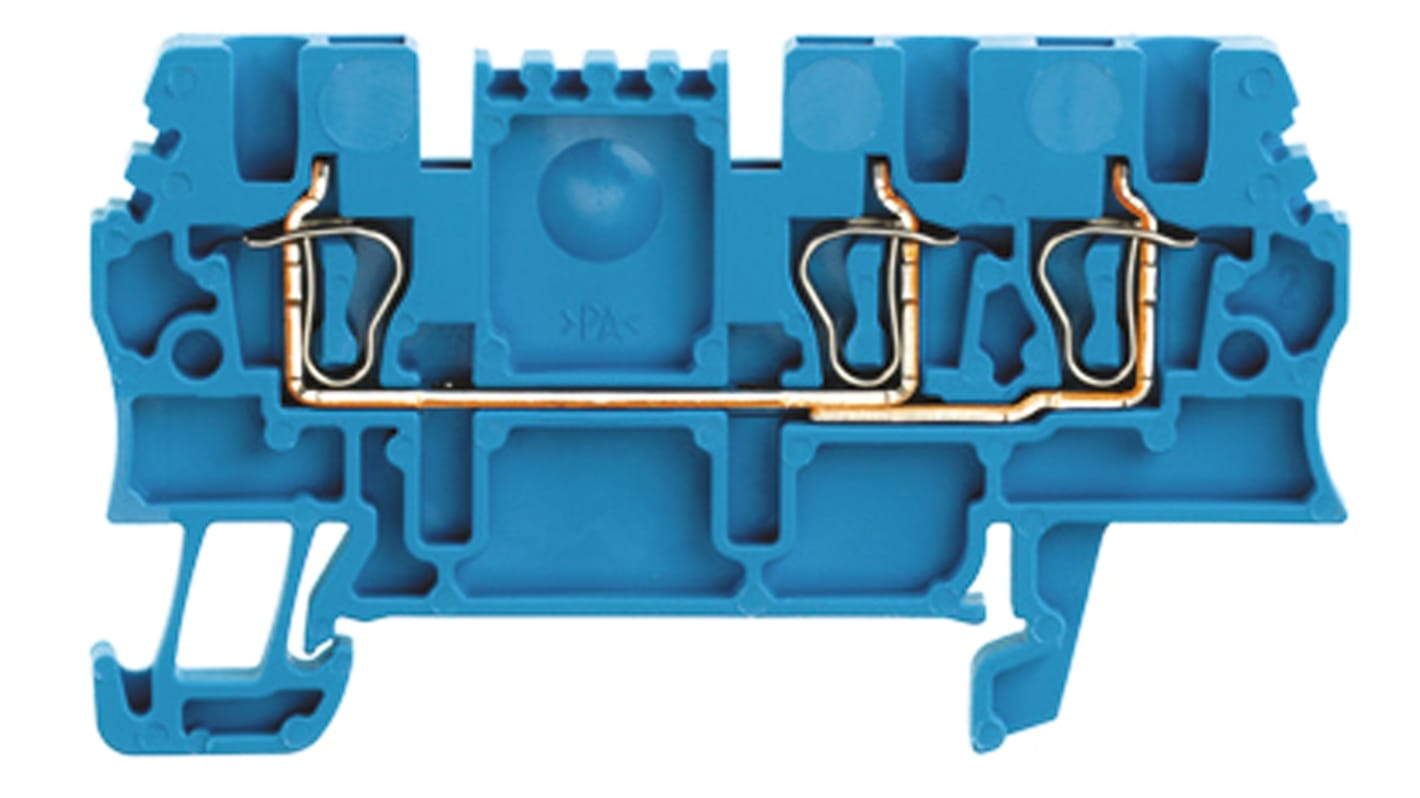

Weidmüller Factory Automation Series Blue Feed Through Terminal Block, 1.5mm², Single-Level, Clamp Termination
- RS Stock No.:
- 826-2922
- Mfr. Part No.:
- 1775540000
- Brand:
- Weidmüller
100 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.747
(exc. VAT)
£0.896
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £0.747 | £7.47 |
60 - 110 | £0.709 | £7.09 |
120 + | £0.682 | £6.82 |
*price indicative |
- RS Stock No.:
- 826-2922
- Mfr. Part No.:
- 1775540000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Weidmuller Feedthrough Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
One, two, three and four tier available
Tension clamp technology
Available in different colours
Specifications
Attribute | Value |
---|---|
Colour | Blue |
Number of Levels | Single |
Series | Factory Automation |
American Wire Gauge | 30 → 16AWG |
Termination Method | Clamp |
Cable CSA | 1.5mm² |
Current Rating | 17.5A |
Voltage Rating | 500 V |
Pitch | 3.5mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
