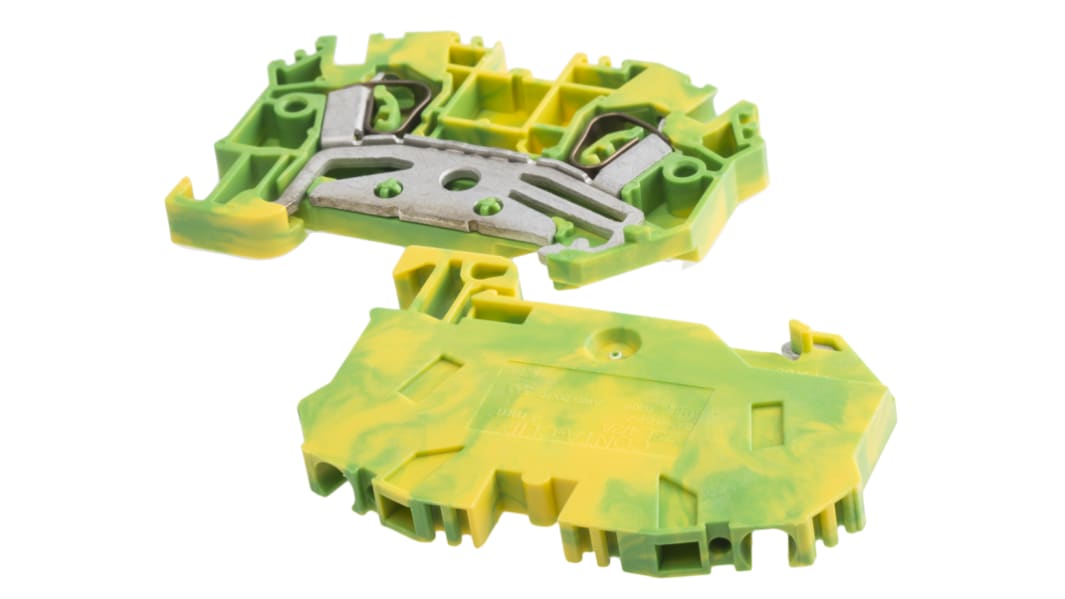

RS PRO Green/Yellow Earth Terminal Block, 4mm², Single-Level, Spring Clamp Termination
- RS Stock No.:
- 763-7472
- Brand:
- RS PRO
110 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£3.57
(exc. VAT)
£4.28
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
10 - 50 | £3.57 | £35.70 |
60 - 110 | £3.392 | £33.92 |
120 + | £3.249 | £32.49 |
*price indicative
- RS Stock No.:
- 763-7472
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Spring Terminals
A range of spring feed through DIN Rail terminals with a proven tension spring connection system for the smallest cross sections ranging from 0.2mm² up to 16mm². This system provides safe and quick connections for solid and stranded wires, with or without wire-end ferrules. The earth terminals feature a PE foot contact that is snapped on, ensuring mechanical and electrical safety on both sides of the terminal without screws.
Specifications
Attribute | Value |
---|---|
Colour | Green/Yellow |
Number of Levels | Single |
American Wire Gauge | 20 → 10AWG |
Series | ZSL |
Termination Method | Spring Clamp |
Cable CSA | 4mm² |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +120°C |
