Subtotal (1 pack of 10 units)*
£27.70
(exc. VAT)
£33.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,060 unit(s) ready to ship
- Plus 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £2.77 | £27.70 |
*price indicative
- RS Stock No.:
- 762-2537
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Colour | Green/Yellow | |
Number of Levels | Single | |
Series | SSL | |
American Wire Gauge | 22 → 11AWG | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Pitch | 6.1mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
Series SSL | ||
American Wire Gauge 22 → 11AWG | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Pitch 6.1mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- DE

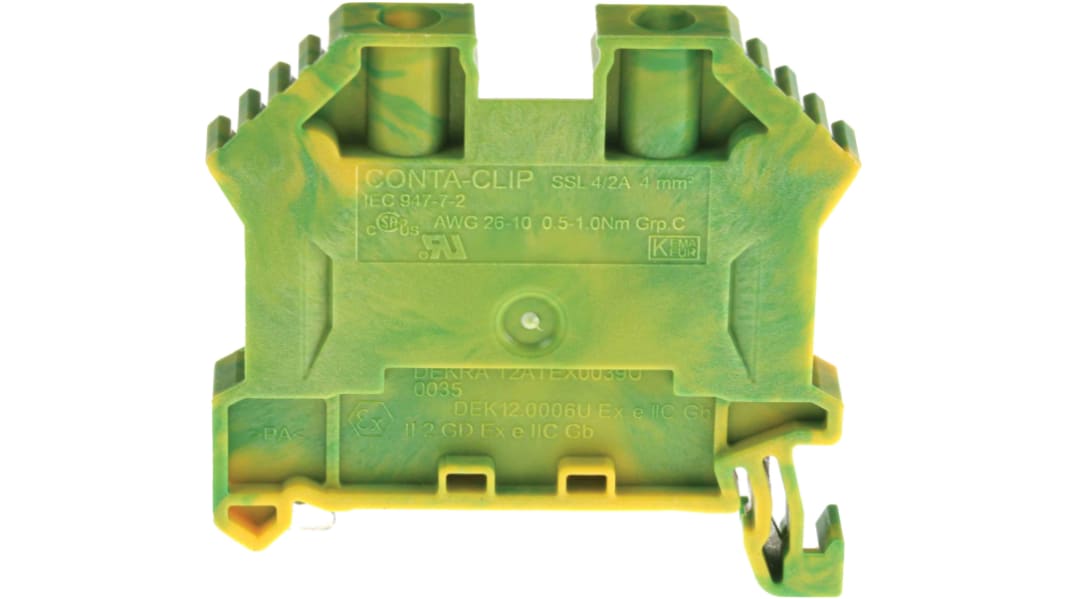

RS PRO Earth Terminal Block, Screw Termination, 4 mm² Cable
Safely ground / earth a current in a circuit with this RS PRO earth terminal block. With this component, there's no need to run a wire to the main ground / earth connection on a breaker or surge protector. With a wire connection to the base of the block in order to ground / earth the circuit, these blocks function similarly to regular terminal blocks.
These blocks boast a number of benefits over a screw system. They're pluggable, which means they can be connected up and removed more quickly and easily. They also allow for adjacent terminals of different sizes to be linked up. The terminals have been designed to easily snap onto the TS 35 DIN rails.
Made from PA6.6 polyamide material, the terminal blocks are certified UL94-V2 for fire safety. Earth terminal blocks like these are commonly found in industrial circuit boards and control panels.
These blocks boast a number of benefits over a screw system. They're pluggable, which means they can be connected up and removed more quickly and easily. They also allow for adjacent terminals of different sizes to be linked up. The terminals have been designed to easily snap onto the TS 35 DIN rails.
Made from PA6.6 polyamide material, the terminal blocks are certified UL94-V2 for fire safety. Earth terminal blocks like these are commonly found in industrial circuit boards and control panels.
Features and Benefits
• Green/Yellow
• SSL series
• Wire Size of 22 → 11 AWG
• 4 mm² cable CSA
• Single level
• Screw-down termination method
• Pitch of 6.1 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of +120°C
• SSL series
• Wire Size of 22 → 11 AWG
• 4 mm² cable CSA
• Single level
• Screw-down termination method
• Pitch of 6.1 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of +120°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
