WAGO 2002-1204 TOPJOB S, 2002 Series Blue, 2.5mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£7.58

(exc. VAT)

£9.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,150 unit(s) ready to ship
  • Plus 160 unit(s) ready to ship from another location
  • Plus 1,200 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.758£7.58

*price indicative

RS Stock No.:
758-1679
Distrelec Article No.:
304-09-231
Mfr. Part No.:
2002-1204
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Blue

Number of Levels

Single

Voltage Rating

550 V

American Wire Gauge

22 → 12AWG

Series

TOPJOB S, 2002

Termination Method

Push-In Cage Clamp

Cable CSA

2.5mm²

Fused

No

Current Rating

22A

Pitch

5.2mm

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+105°C

Hazardous Area Certification

ATEX, IECEx

Standards Met

CE, CSA, cURus

COO (Country of Origin):
DE

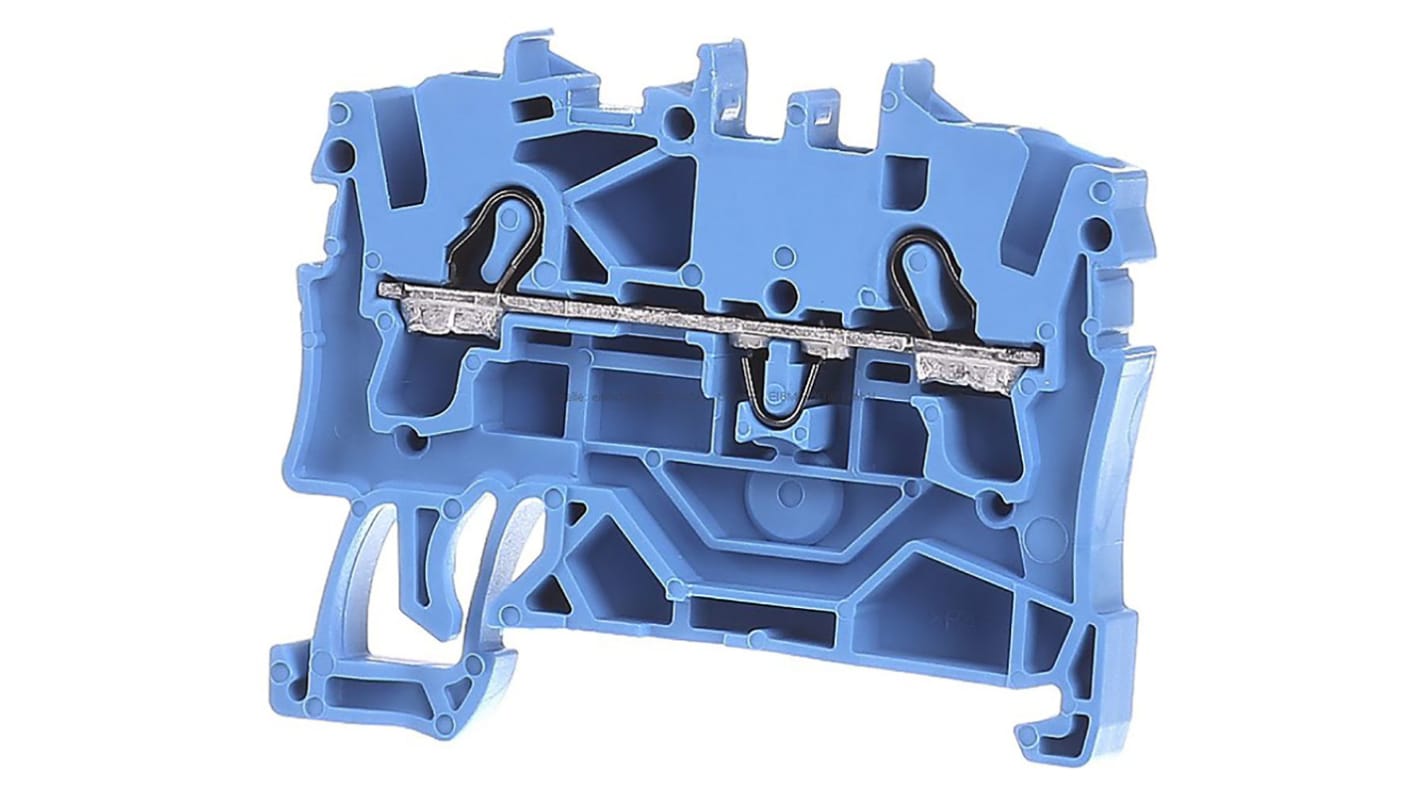

WAGO Feed-Through Terminal Block, 22A Current Rating, 550V Voltage Rating - TOPJOB S 2002 Series - 2002-1204


This feed-through terminal block from WAGO does double duty as it protects and connects your electrical installations. It's an adaptable piece of kit that takes stranded, solid and ferruled wires between 22 and 12AWG, handling two conductors to streamline your setup. A push-in cage clamp design saves time and effort – insert a conductor into the terminal and it's job done. At a width of just 5.2mm, this is a compact item that maximises space on busy DIN rails.

Features & Benefits


• 22A current rating gives the oomph to handle challenging applications
• Blue colour makes for easy coding in installations
• Insulates live wires to improve electrical safety

Applications


• Telecommunications networks
• Industrial control processes
• Consumer electronics
• Medical equipment

Can this feed-through terminal block handle impact-prone operations?


Yes. By firmly clamping a wire in place, this unit keeps circuits running even when things shake or vibrate. It's also approved for use in potentially explosive environments, so it's a reliable choice for your industrial operations.

What's the pitch of this component?


The block has a 5.2mm pitch, so conductors remain separate to curb fire hazards.


TOPJOB S Series


A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
