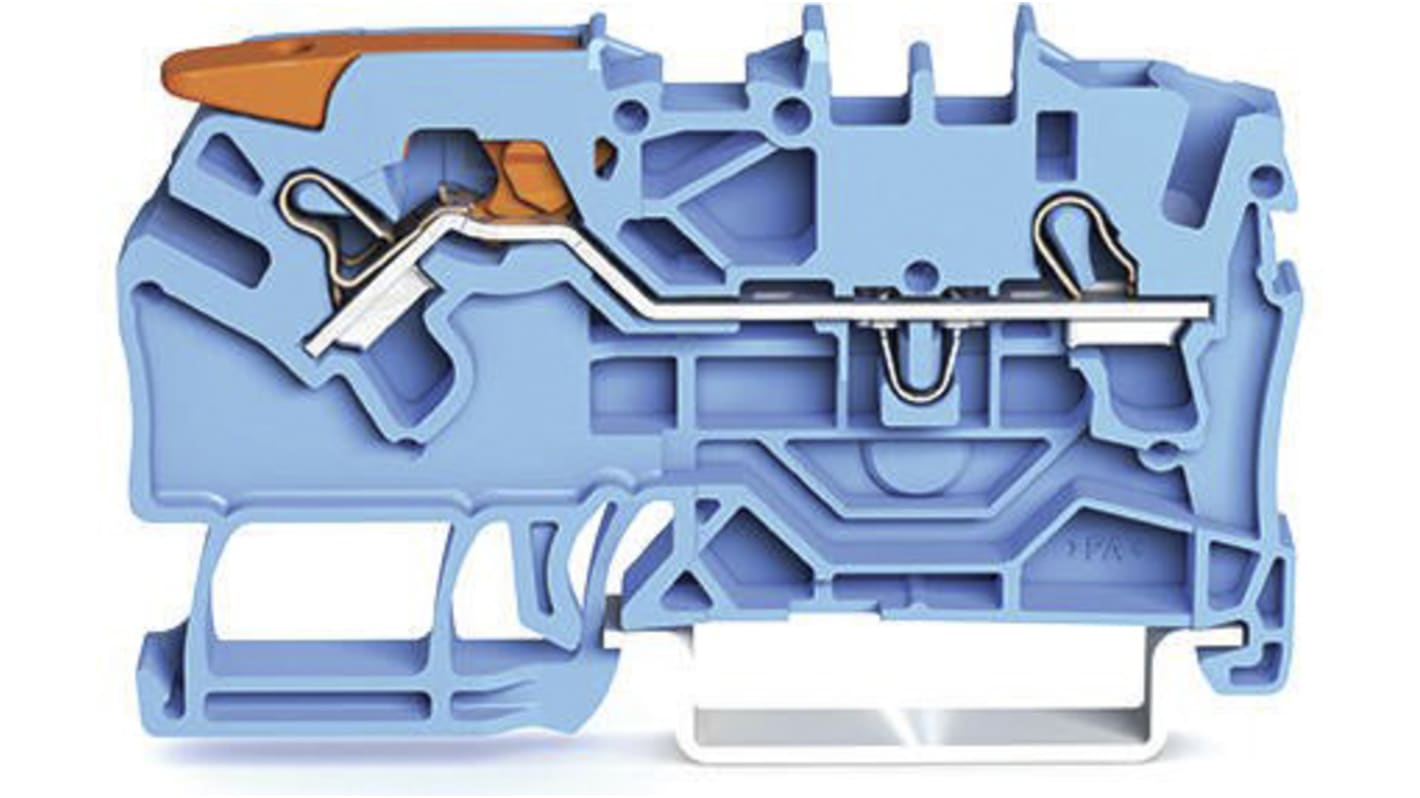

WAGO 2102-1204 Feed Through Terminal Block Blue, 2.5 mm², 1-Level, Cage Clamp, IECEx/ATEX
- RS Stock No.:
- 184-9765
- Distrelec Article No.:
- 304-32-577
- Mfr. Part No.:
- 2102-1204
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£44.95
(exc. VAT)
£53.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 12 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £44.95 | £0.899 |
*price indicative
- RS Stock No.:
- 184-9765
- Distrelec Article No.:
- 304-32-577
- Mfr. Part No.:
- 2102-1204
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Feed Through Terminal Block | |
| Colour | Blue | |
| Number of Levels | 1 | |
| Voltage | 800 V | |
| Minimum Wire Size AWG | 18 AWG | |
| Cable CSA | 2.5 mm² | |
| Fused | No | |
| Maximum Wire Size AWG | 12 AWG | |
| Pitch | 5.2mm | |
| Minimum Operating Temperature | -35°C | |
| Termination Type | Cage Clamp | |
| Terminal Block Current | 32A | |
| Hazardous Area Certification | IECEx/ATEX | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Feed Through Terminal Block | ||
Colour Blue | ||
Number of Levels 1 | ||
Voltage 800 V | ||
Minimum Wire Size AWG 18 AWG | ||
Cable CSA 2.5 mm² | ||
Fused No | ||
Maximum Wire Size AWG 12 AWG | ||
Pitch 5.2mm | ||
Minimum Operating Temperature -35°C | ||
Termination Type Cage Clamp | ||
Terminal Block Current 32A | ||
Hazardous Area Certification IECEx/ATEX | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | ||
- COO (Country of Origin):
- PL
2-Conductor through terminal block, with lever and Push-in CAGE CLAMP®, 2.5 mm², with test port, suitable for Ex i applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2,50 mm², blue
