Name: Phoenix Contact 3212112 PT 4-DIO 1N 5408/L-R Series Grey, Single-Level, Push In Termination
Brand: Phoenix Contact
SKU: 708-1731
Price: 4.80 GBP
Availability: InStock

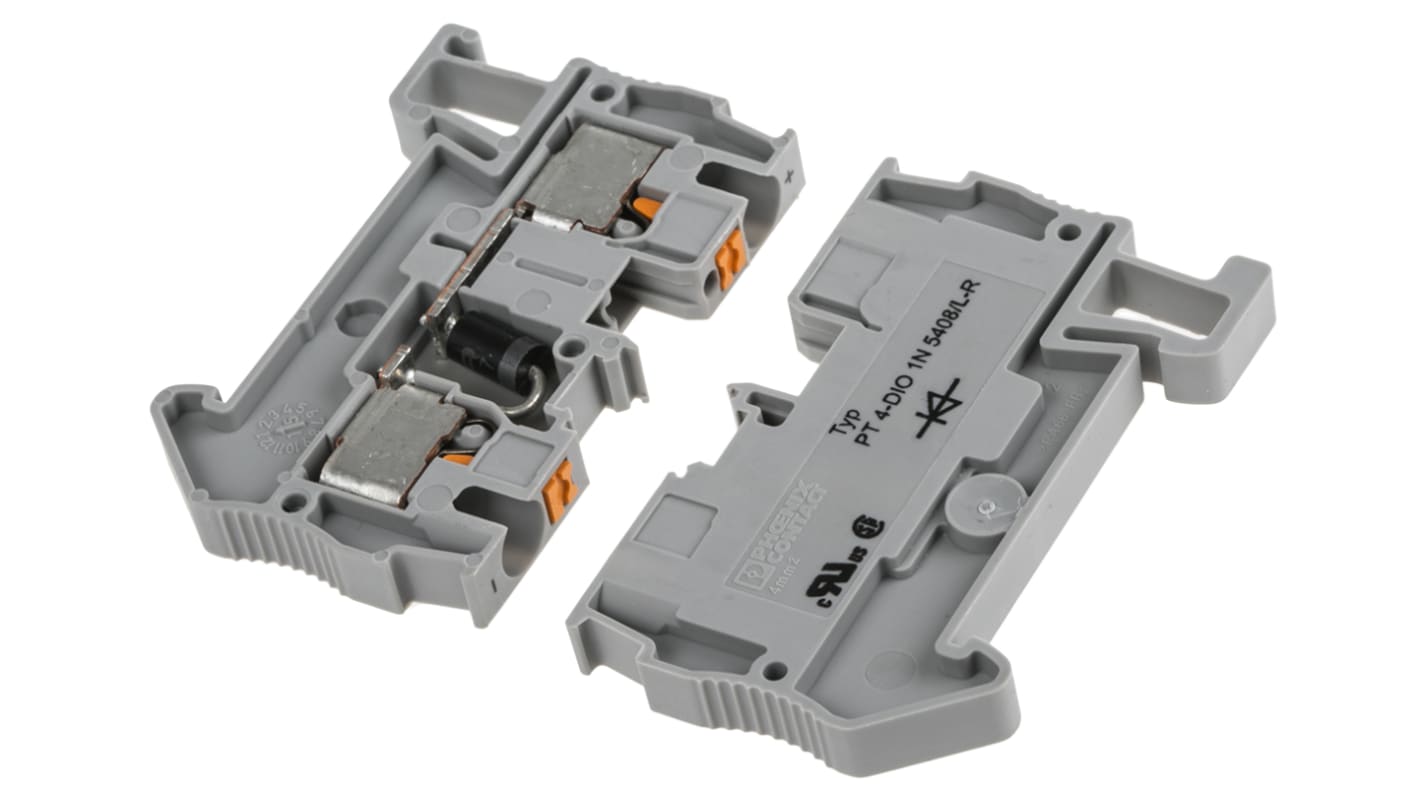

Phoenix Contact PT 4-DIO 1N 5408/L-R Series Component Terminal Block, 24 to 10 AWG, 1.5A Current Rating - 3212112

This component terminal block by Phoenix Contact is designed to meet the needs of various industries such as automation, electronics, electrical, and mechanical. With a current rating of 1.5A and voltage rating of 800V, this terminal block provides a reliable solution for connecting wires in a range of applications.

Features & Benefits

• Push-in connection design for easy and tool-free wiring
• Compact design for wiring in confined spaces
• Front connection for convenience and efficiency
• Single level design for simplicity and ease of use
• Grey colour for easy identification
• Insulating material PA for safety and durability

Applications

• Suitable for use with ferrules or solid conductors
• Ideal for creating terminal connections in industrial settings

Can it handle a current rating of 1.5A?

Yes, this component terminal block is capable of handling a current rating of 1.5A.

Will it provide secure connections in industrial environments?

Yes, the push-in connection design ensures secure connections in industrial settings.

Is it suitable for wiring in tight spaces?

Yes, the compact design allows for wiring in confined spaces without sacrificing efficiency.

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Colour	Grey
	Number of Levels	Single
	Voltage Rating	800 V
	Series	PT 4-DIO 1N 5408/L-R
	American Wire Gauge	24 → 10AWG
	Termination Method	Push In
	Current Rating	1.5A
	Pitch	6.2mm
	Minimum Operating Temperature	-60°C
	Maximum Operating Temperature	+110°C
	Model Number	PT 4-DIO 1N 5408/L-R

	Select all
	Brand Phoenix Contact
	Colour Grey
	Number of Levels Single
	Voltage Rating 800 V
	Series PT 4-DIO 1N 5408/L-R
	American Wire Gauge 24 → 10AWG
	Termination Method Push In
	Current Rating 1.5A
	Pitch 6.2mm
	Minimum Operating Temperature -60°C
	Maximum Operating Temperature +110°C
	Model Number PT 4-DIO 1N 5408/L-R
