Phoenix Contact 3035247 ST 4-DIO 1N 5408/R-L Series Grey, 0.08 → 6mm²
- RS Stock No.:
- 213-0213
- Mfr. Part No.:
- 3035247
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 213-0213
- Mfr. Part No.:
- 3035247
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Series | ST 4-DIO 1N 5408/R-L | |
| Voltage Rating | 800 V | |
| American Wire Gauge | 10 → 28AWG | |
| Cable CSA | 0.08 → 6mm² | |
| Fused | No | |
| Current Rating | 1.5A | |
| Model Number | ST 4-DIO 1N 5408/R-L | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Series ST 4-DIO 1N 5408/R-L | ||
Voltage Rating 800 V | ||
American Wire Gauge 10 → 28AWG | ||
Cable CSA 0.08 → 6mm² | ||
Fused No | ||
Current Rating 1.5A | ||
Model Number ST 4-DIO 1N 5408/R-L | ||
- COO (Country of Origin):
- PL

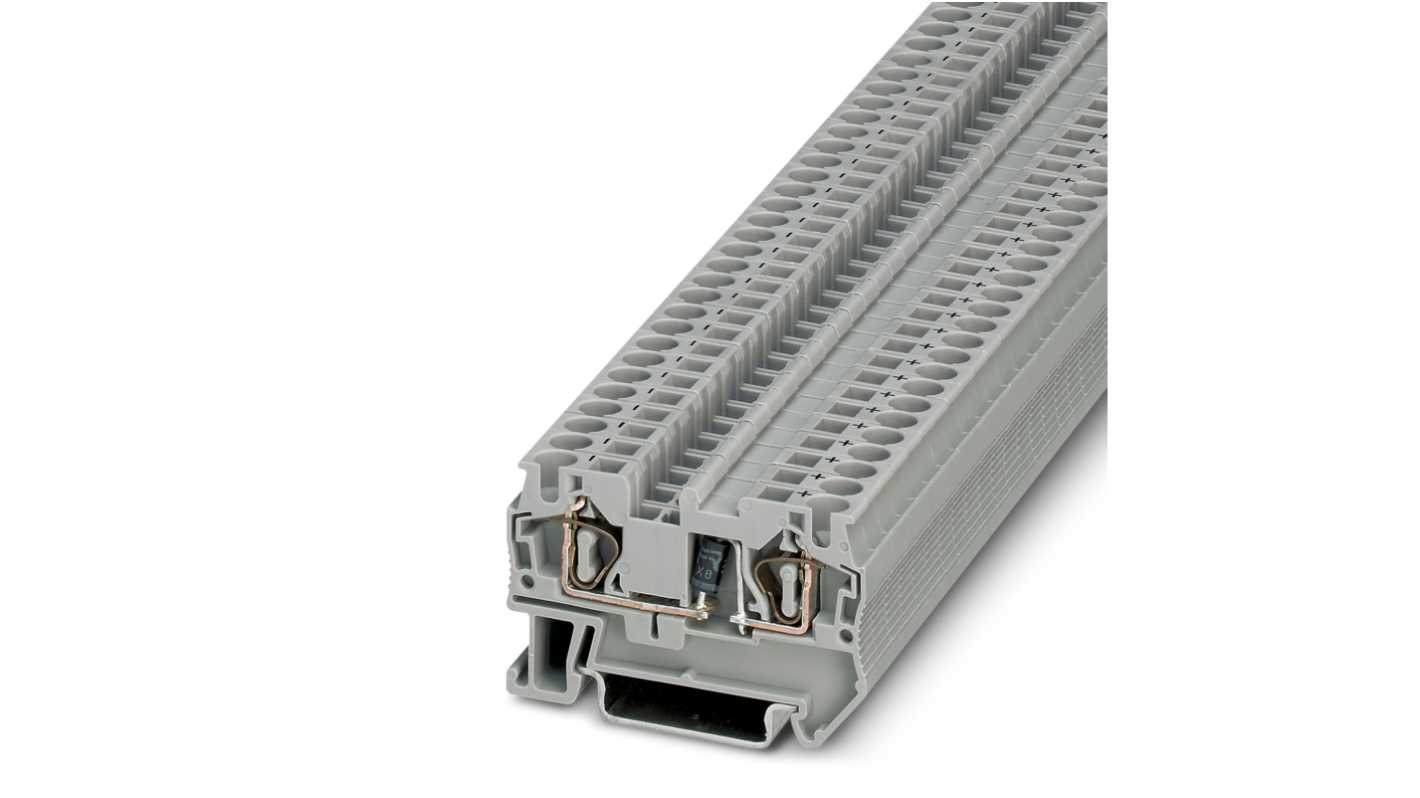

The Phoenix Component terminal block, with integrated diode. It has nominal voltage 800 V and nominal current 1.5 A.
Spring-cage connection
cross section: 0.08 mm² - 6 mm²
AWG: 28 - 10
length: 56 mm
width: 6.2 mm
colour: grey
cross section: 0.08 mm² - 6 mm²
AWG: 28 - 10
length: 56 mm
width: 6.2 mm
colour: grey
