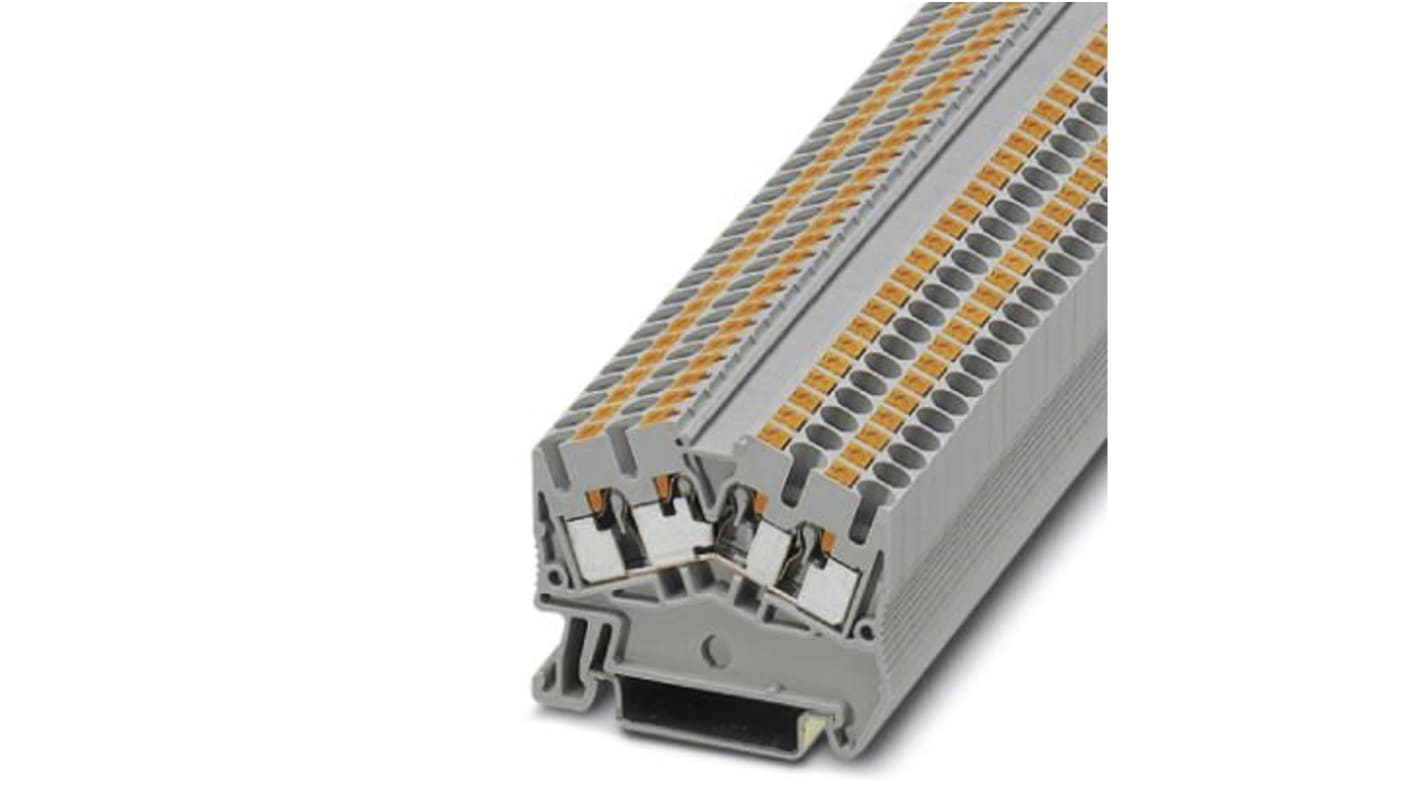

Phoenix Contact 3211993 PTS 2.5-QUATTRO Series Feed Through Terminal Block Grey, 0.14mm², 4 mm², 1-Level, Push-in,
- RS Stock No.:
- 708-1725
- Mfr. Part No.:
- 3211993
- Brand:
- Phoenix Contact
Subtotal (5 units, in packs of 5)*
£9.10
(exc. VAT)
£10.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 65 unit(s) ready to ship
- Plus 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.82 | £9.10 |
*price indicative
- RS Stock No.:
- 708-1725
- Mfr. Part No.:
- 3211993
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Feed Through Terminal Block | |
| Colour | Grey | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Series | PTS 2.5-QUATTRO | |
| Cable CSA | 0.14mm², 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Termination Type | Push-in | |
| Terminal Block Current | 24A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | CCC, CSA, UL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Feed Through Terminal Block | ||
Colour Grey | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Voltage 800V | ||
Series PTS 2.5-QUATTRO | ||
Cable CSA 0.14mm², 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Termination Type Push-in | ||
Terminal Block Current 24A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals CCC, CSA, UL | ||
- COO (Country of Origin):
- PL
Phoenix Contact Feed Through Terminal Block, ATEX-Certified, 26 to 12 AWG - PTS 2,5-QUATTRO - 3211993
Want to join two wires together on your PCB, with a minimum of fuss? Pass them through this feed-through terminal block from Phoenix Contact. It's a single-level unit with four connections, so you can link up a number of cables, creating a multiconductor system that saves space in your panel. Wiring couldn't be simpler – just push the cables into the termination points. With a current rating of 24A, you'll find this is a reliable workmate that can stand the rigours of high-power electrical systems.
The insulated PA housing ensures the block keeps its cool when things heat up. Thanks to integrated mechanical shock resistance, it holds firm in demanding conditions. You can easily fit it into your busy command centre as its compact dimensions of 49 (L) x 50.5 (H) x 5.2mm (W) mean it doesn't ask for a lot of room.
• Flammability class of UL94 V-0 means burning will stop in under 10 seconds for improved fire safety
• Rated surge voltage of 8kV to withstand current surges
• Minimal power dissipation of 0.77W for energy efficiency
• ATEX-certified for use in potentially explosive environments
• Wide operating temperature range between -60°C and +110°C for use in harsh industrial settings
