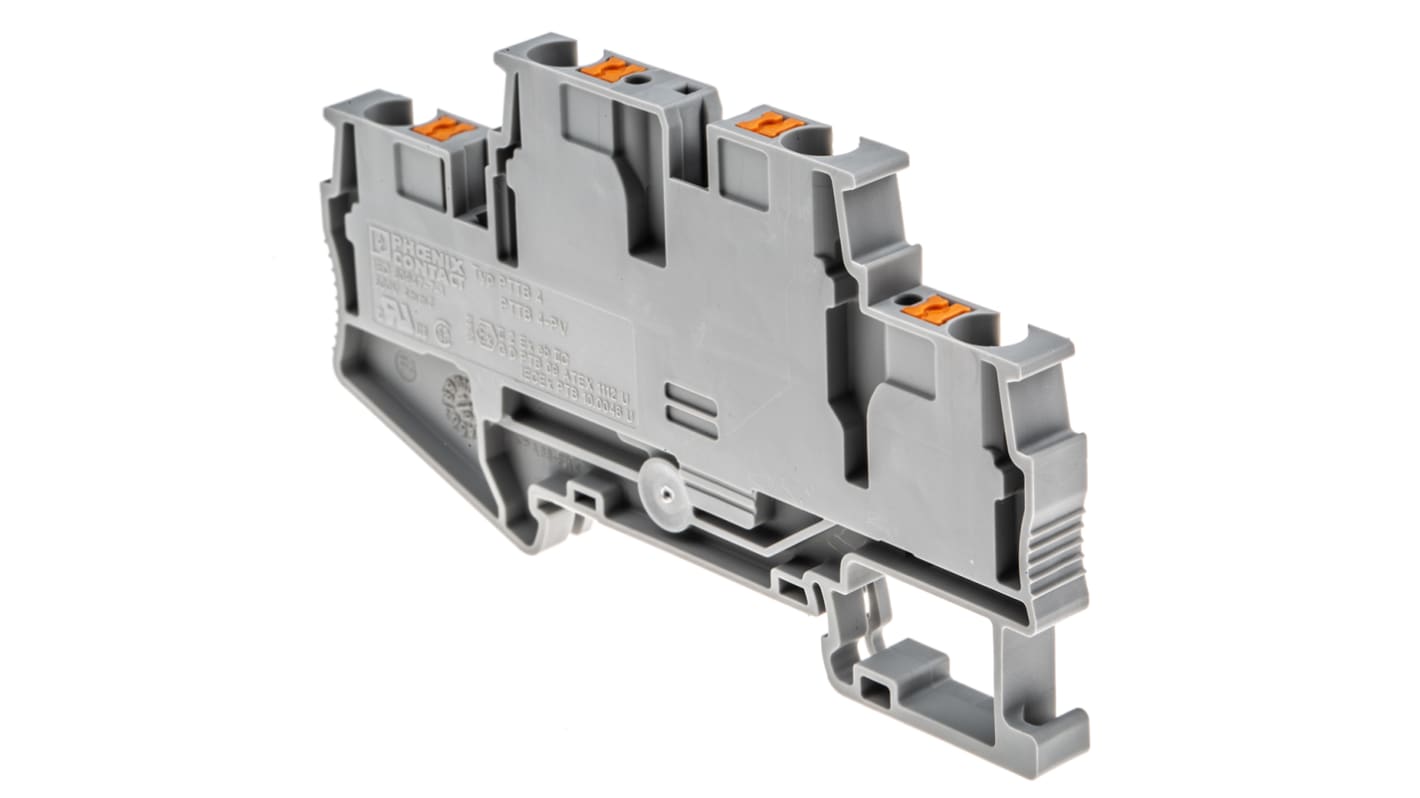

Phoenix Contact 3211786 PTTB 4 Series Grey, 0.2 → 6mm², Double-Level, Push In Termination, ATEX, IECEx

50% less insertion force
Compact design and front connection facilitate wiring in the smallest of spaces
Tool-free wiring of conductors with ferrules or solid conductors
Stranded conductors with ferrules can be inserted directly with PIT 2,5 (from 0.34 mm²) and PIT 4 (from 0.5 mm²)
Actuation lever opens the terminal point, so there is no direct contact with live parts
Double bridge shaft enables individual potential distribution and supply

Looking for a simple way to connect one or more wires and components together? This feed-through terminal block from Phoenix Contact is an effective solution. It's designed to be mounted on a standard DIN rail, so it's compatible with your existing fixtures and installation is quick and efficient.
The block's contacts are designed for simple push-in termination, which means you can wire in other parts of your circuitry without the need for specialist tools. This greatly reduces repair and maintenance time and makes it easier to adapt or expand your electrical setup. The grey polyamide (PA) material is sturdy and has high resistance to abrasion and heat, making this a durable and long-lasting component.

• Grey in colour
• Two levels
• Current rating of 28A
• Voltage rating of 500V
• Cable cross-sectional area of 0.2 to 6 mm²
• Wire size of 24 to 10AWG (American Wire Gauge)
• UL (Underwriter Laboratories) 94-V0 rating means it will burn for no more than 15 seconds when exposed to a naked flame
• Complies with RoHS (Restriction of Hazardous Substances), indicating it contains no more than trace amounts of potentially harmful materials

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
