Phoenix Contact 3074088 UTI 35 Series Grey, 0.75 → 35mm², Single-Level, Screw Termination
- RS Stock No.:
- 684-3077
- Mfr. Part No.:
- 3074088
- Brand:
- Phoenix Contact
Subtotal (1 pack of 2 units)*
£11.55
(exc. VAT)
£13.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £5.775 | £11.55 |
*price indicative
- RS Stock No.:
- 684-3077
- Mfr. Part No.:
- 3074088
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 800 V | |
| American Wire Gauge | 18 → 2AWG | |
| Series | UTI 35 | |
| Termination Method | Screw | |
| Cable CSA | 0.75 → 35mm² | |
| Current Rating | 125A | |
| Pitch | 15.2mm | |
| Model Number | UTI 35 | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 800 V | ||
American Wire Gauge 18 → 2AWG | ||
Series UTI 35 | ||
Termination Method Screw | ||
Cable CSA 0.75 → 35mm² | ||
Current Rating 125A | ||
Pitch 15.2mm | ||
Model Number UTI 35 | ||

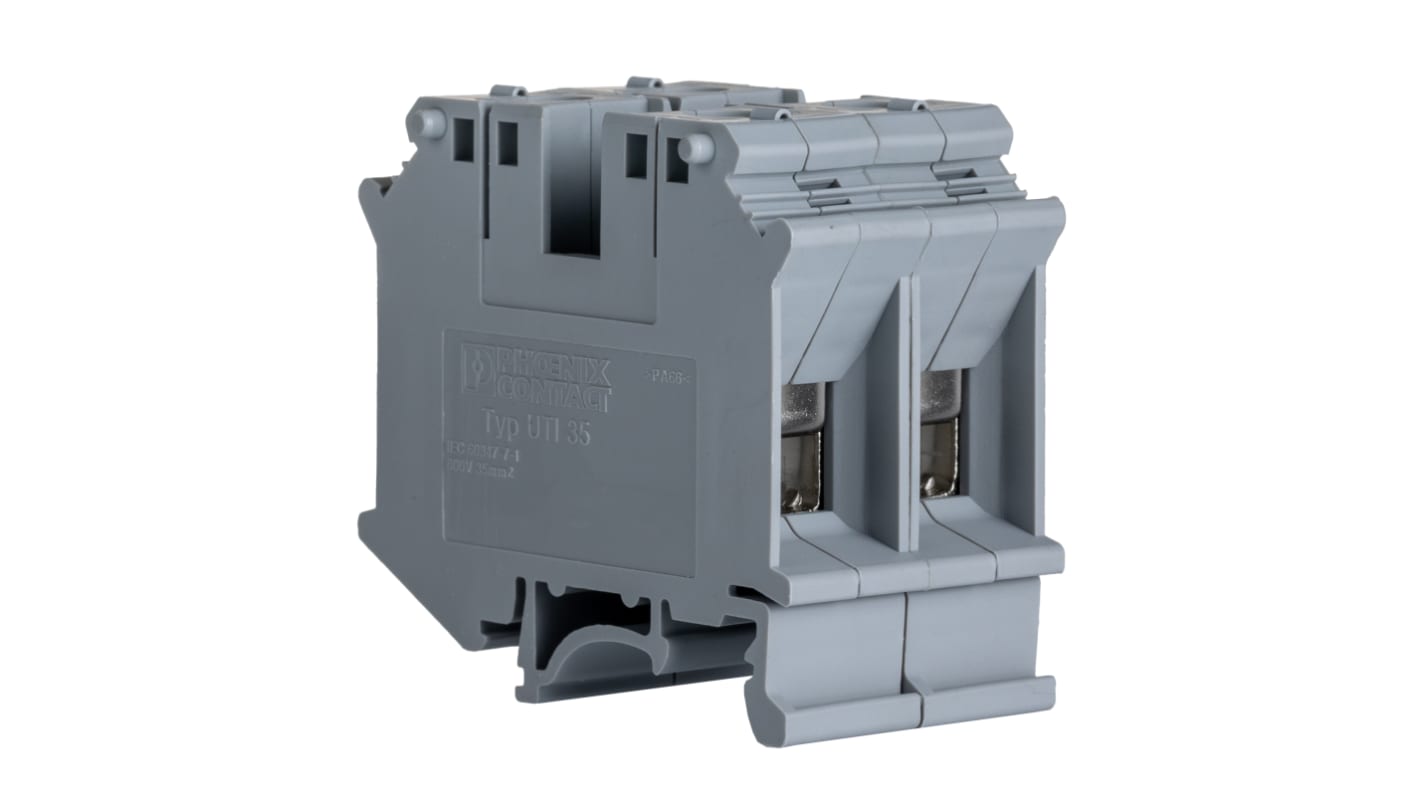

Phoenix Contact UTI 35 Series DIN Rail Terminal Block, 125A - 3074088
This terminal block facilitates efficient electrical connections in automation and industrial applications. Its robust construction complies with CSA regulations, ensuring functionality in challenging environments. Designed for wiring in confined spaces, it is suitable for various electrical installations.
Features & Benefits
• Single-level design optimises space usage
• Secure screw connection method
• Rated for 125A for high current applications
• Asymmetrical arrangement enables neutral busbar routing
• Secure screw connection method
• Rated for 125A for high current applications
• Asymmetrical arrangement enables neutral busbar routing
Applications
• Ideal for flat installation distributors for streamlined wiring
• Compatible with various mounting types, including NS 35/7.5
• Applicable in electrical panels and distribution boards
• Compatible with various mounting types, including NS 35/7.5
• Applicable in electrical panels and distribution boards
What type of cables can be connected?
The block accommodates cables with cross sections from 0.75 mm² to 35 mm².
How is the installation of this terminal block performed?
It mounts easily on standard DIN rails using screw connections.
What kind of environments can it operate in?
It is designed for ambient temperatures from -60 to 110°C.
How it can be ensure the connections are secure?
The terminal block requires a tightening torque of 3.2 to 3.7 Nm for secure connections.
