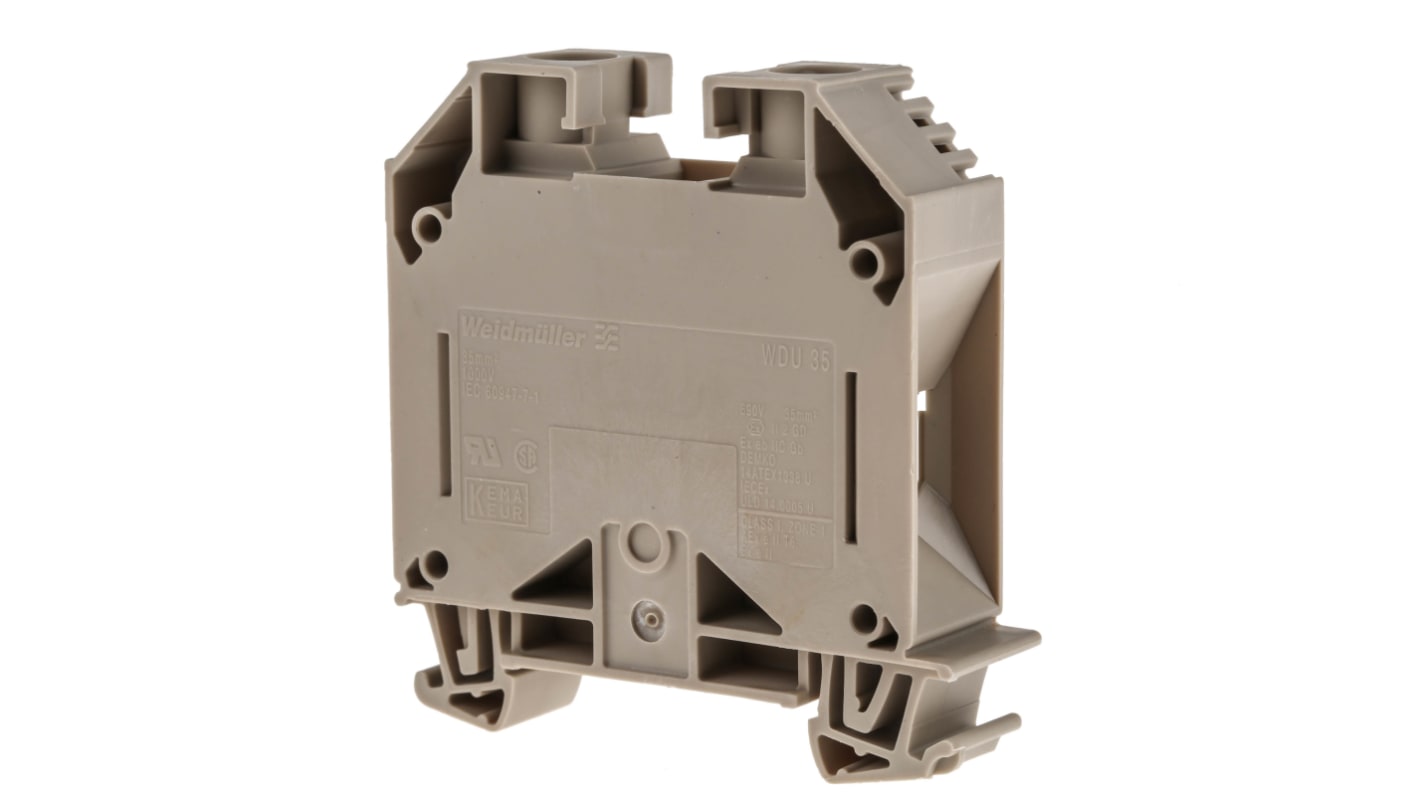

Keen to add extra connections to your industrial system? This Weidmuller terminal block uses a simple feed-through method, so it quickly accepts your conductors to help you speed through wiring tasks. Thanks to its current rating of 125A, this unit packs a punch in high-power applications. Its screw terminals protect conductors against movement to prevent accidental disconnection in shaky situations. As it has an open right-side panel, you get direct access to the block's wiring for easy adjustments, even when it's mounted.

• Wemid body provides effective insulation for enhanced electrical safety
• Accepts wires ranging in size from 12 to 2AWG for broad compatibility
• Compact body measurements of 60 (H) x 16 (W) x 62.5mm (D) for a handy fit in busy systems
• Wide operating temperature range of -50°C to +120°C for use in harsh environments

• Manufacturing industry
• Packing plants
• Renewable energy installations

This unit snaps into place on a standard DIN rail, so you can install it in a jiffy in your existing control cabinets.

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
