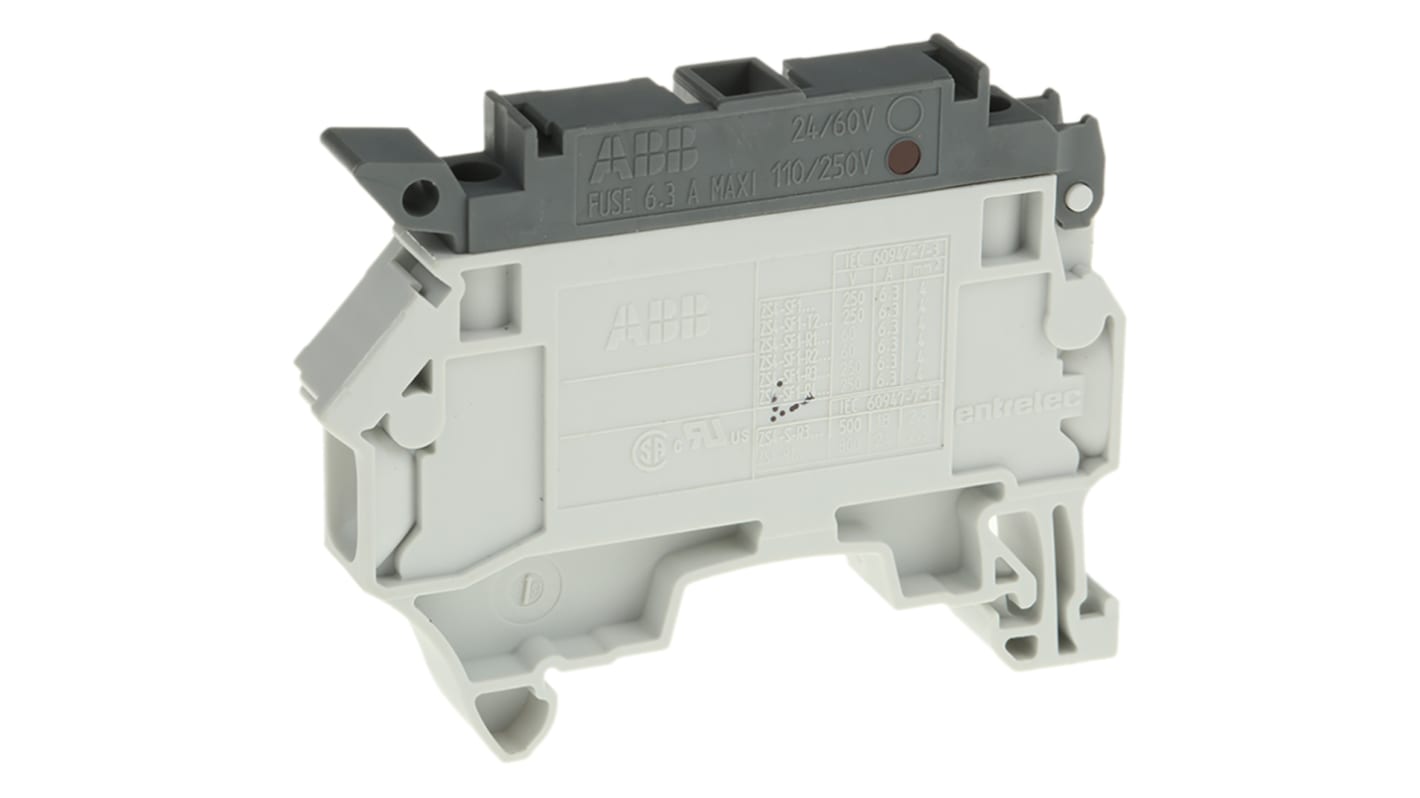

Entrelec 1SNK508415R0000 SNK Series Grey, 1.5mm², Screw Termination, Fused
- RS Stock No.:
- 666-3304
- Mfr. Part No.:
- 1SNK508415R0000
- Brand:
- Entrelec
Subtotal (1 unit)*
£11.90
(exc. VAT)
£14.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 22 October 2025
- Plus 50 unit(s) shipping from 15 January 2026
- Plus 100 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.90 |
*price indicative
- RS Stock No.:
- 666-3304
- Mfr. Part No.:
- 1SNK508415R0000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Entrelec | |
Colour | Grey | |
Series | SNK | |
Voltage Rating | 250 V | |
Termination Method | Screw | |
Cable CSA | 1.5 mm², 4mm² | |
Fused | Yes | |
Current Rating | 6.3A | |
Pitch | 8mm | |
Maximum Operating Temperature | +110°C | |
Select all | ||
---|---|---|
Brand Entrelec | ||
Colour Grey | ||
Series SNK | ||
Voltage Rating 250 V | ||
Termination Method Screw | ||
Cable CSA 1.5 mm², 4mm² | ||
Fused Yes | ||
Current Rating 6.3A | ||
Pitch 8mm | ||
Maximum Operating Temperature +110°C | ||
- COO (Country of Origin):
- FR
Fuse Terminals
Two central jumper channels for convenient common distribution
Available to fit 5x20mm fuses or 5x20 and 5x25mm fuses
Available to fit 5x20mm fuses or 5x20 and 5x25mm fuses
Note
Terminals not supplied with fuses
SNK Series Screw Clamp Din Rail Terminal Blocks
A range of screw clamp terminal blocks and accessories offering a 20% width reduction compared with the Entrelec 5000 series. Designed to mount on top hat format DIN rails using a unique asymmetrical profile which aids visibility from any direction and prevents reverse mounting errors. Easy to fit with positive snap action and constructed from ridged flame retardant material. A comprehensive list of international approvals including, UL, CSA, CE, ATEX and IECex, support worldwide use.
