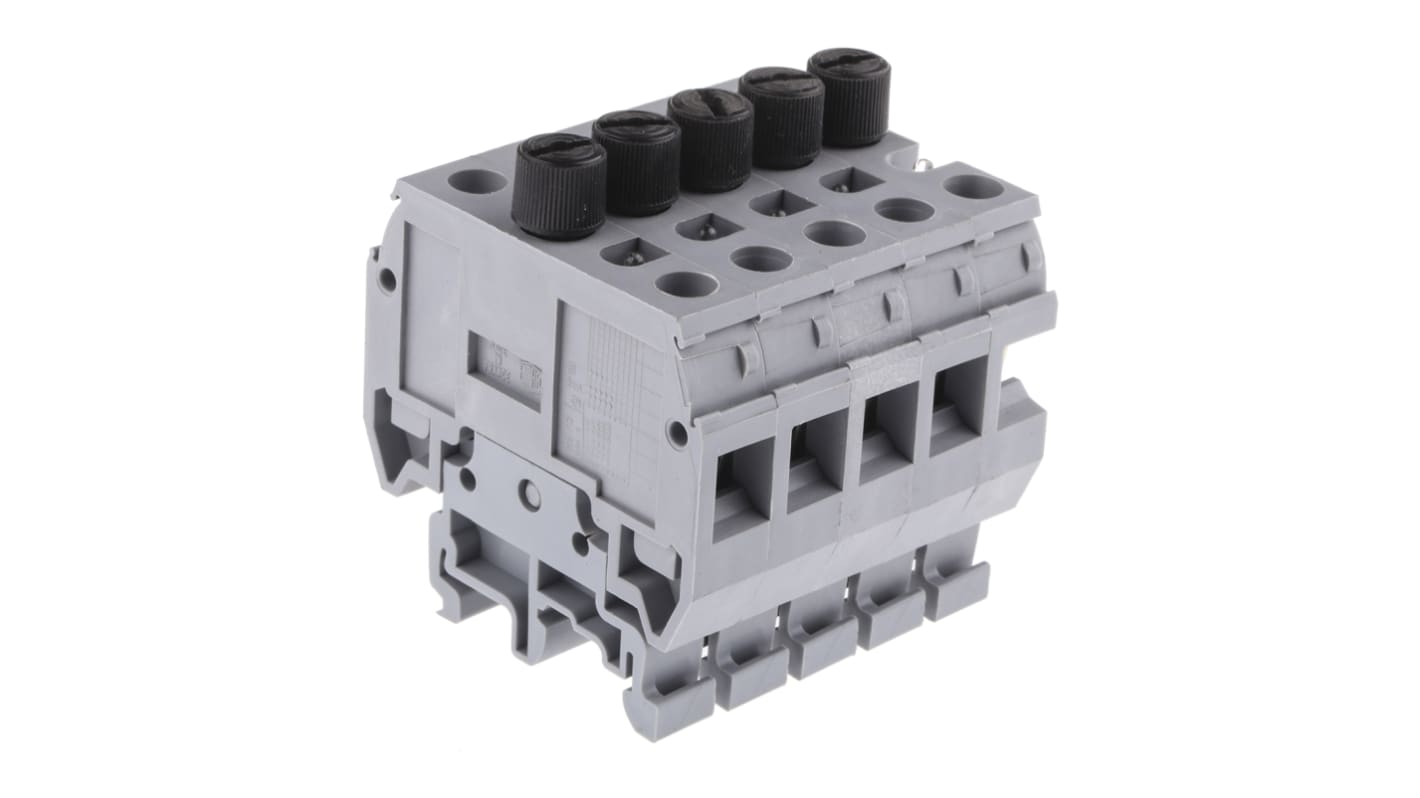

Entrelec 1SNA111034R0400 MB Series Grey, 10mm², Screw Termination, Fused

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 5 units)*

£94.44

(exc. VAT)

£113.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
  • Plus 25 unit(s) shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£18.888£94.44

*price indicative

RS Stock No.:
424-838
Mfr. Part No.:
1SNA111034R0400
Brand:
Entrelec
Find similar products by selecting one or more attributes.
Select all

Brand

Entrelec

Colour

Grey

Series

MB

American Wire Gauge

16AWG

Voltage Rating

600 V

Termination Method

Screw

Cable CSA

10 mm², 16mm²

Fused

Yes

Current Rating

10A

Pitch

12mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+110°C

Fused Terminals


Two versions of fused terminals
The latched, pull up fuse terminals are available for 1 1/4 in. x 1/4 in., BS1362 and 5x20mm/5x25mm fuses
The screw cap fused terminals are suited to 5x20mm fuses and is available with or without a neon (110-220V) indicator

Note

The fuseholder limits the rating to 250V/16A irrespective of markings on the terminals

Approvals

UL listed, CSA certified.
