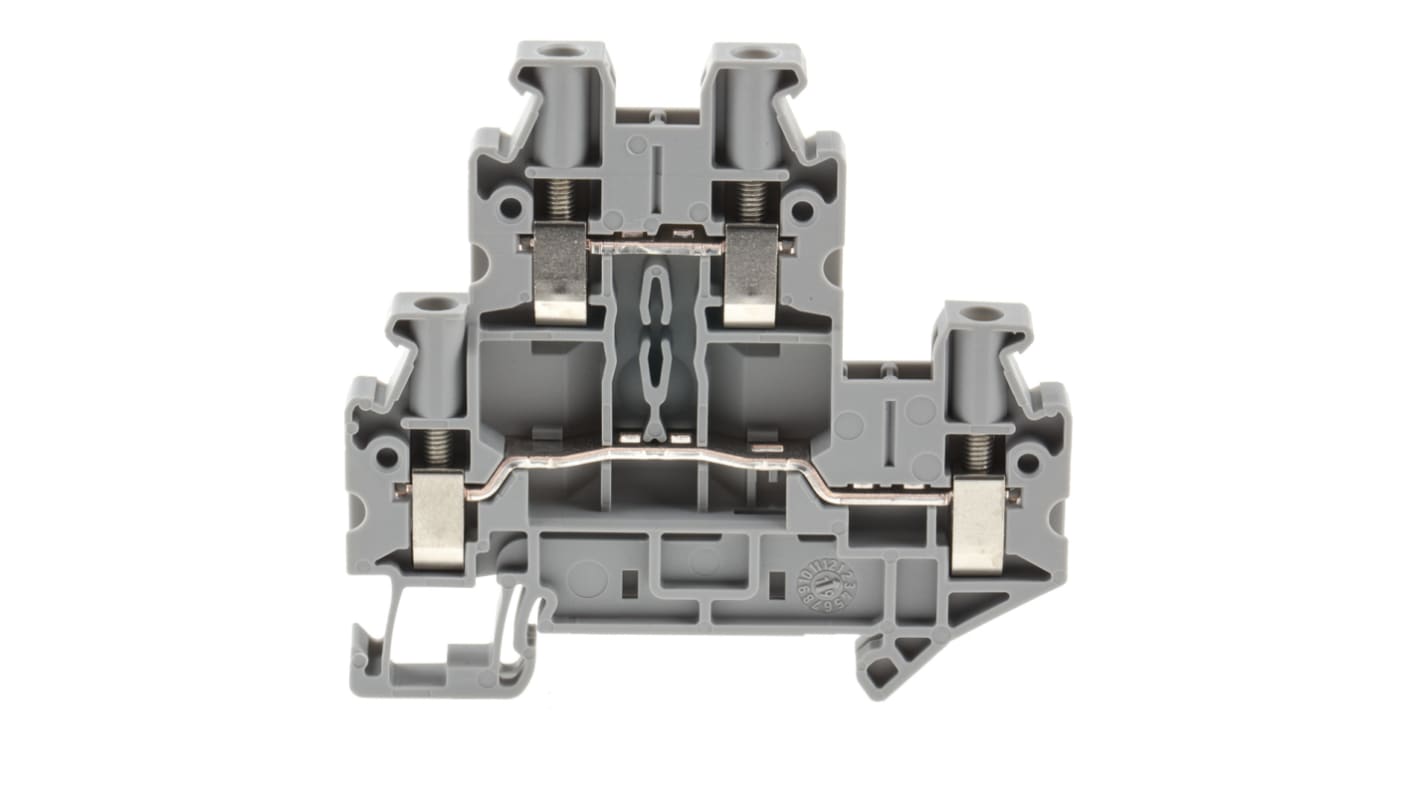

Phoenix Contact 3044814 UTTB Clipline Series Grey, 0.14 → 6mm², Double-Level, Screw Termination, ATEX

All metal parts are of high strength copper alloys
Simple multi-conductor connection
Maintenance-free "Reakdyn principle"
All accessories are compatible with the CLIPLINE range

This double-level terminal block provides robust electrical connectivity solutions. Designed for durability and multi-level configurations, it supports a wide range of conductor sizes from 0.14mm² to 6mm² (26 to 10AWG). Operating under a voltage rating of 800V, it is suitable for various applications. The compact design, with dimensions of 6.2mm in width and 69.9mm in height, makes it ideal for space-constrained environments.

• Dual function shafts per level expedite potential distribution
• Large-surface labelling enhances clarity for terminal points
• Optional FBS-PV UT vertical bridges connect levels efficiently
• Flexibility in routing separate potentials side by side
• Rated for high temperatures, operating between -60°C and +110°C
• ATEX certified for hazardous areas and suitable for railway applications

• Utilised in automation systems for cable management
• Employed in plant engineering for electrical control panels
• Suitable for machine building requiring multi-level connections
• Ideal for installations requiring high current capacity
• Used in process industries for safe connectivity

It can handle up to 36A with a conductor cross-section of 6mm².

Phoenix Contact CLIPLINE UT Range
