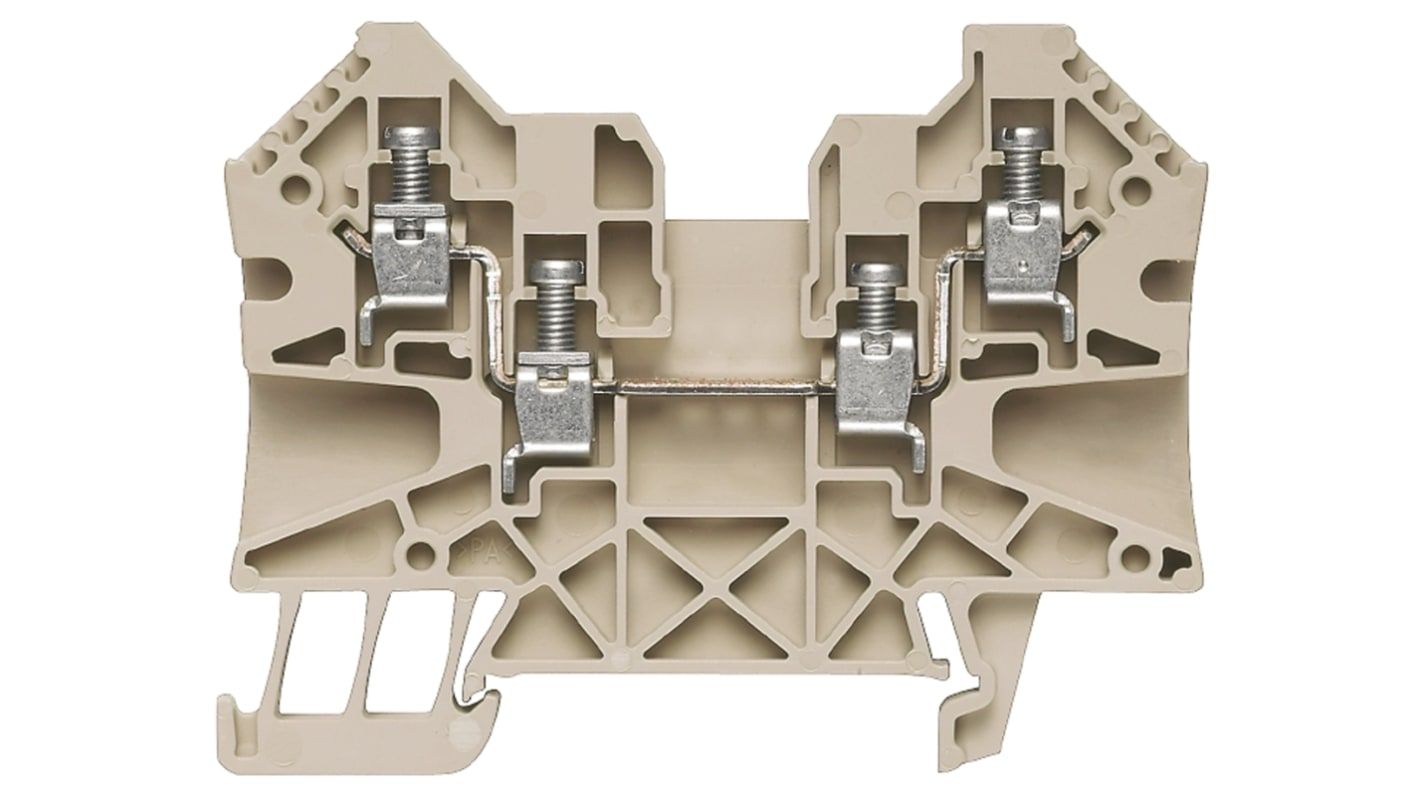

Weidmüller W Series Dark Beige Feed Through Terminal Block, 0.5 → 6mm², Double-Level, Screw Termination
- RS Stock No.:
- 826-3117
- Mfr. Part No.:
- 1905060000
- Brand:
- Weidmüller
320 In stock - FREE next working day delivery available
40 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£1.591
(exc. VAT)
£1.909
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 50 | £1.591 | £15.91 |
| 60 - 110 | £1.513 | £15.13 |
| 120 + | £1.448 | £14.48 |
| *price indicative | ||
- RS Stock No.:
- 826-3117
- Mfr. Part No.:
- 1905060000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
WDU Series Feed-Through Terminal Blocks
WDU Series feed-through terminal blocks with yoke connection technology. The terminals are highly reliable and make planning easier and optimise operational safety.
Features and Benefits
• Screw connection
• Snap-on mounting
• Klippon® connect provides established response to a range of requirements
• Snap-on mounting
• Klippon® connect provides established response to a range of requirements
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
|---|---|
| Colour | Dark Beige |
| Number of Levels | Double |
| Series | W |
| Termination Method | Screw |
| Cable CSA | 0.5 → 6mm² |
| Voltage Rating | 800 V |
| Current Rating | 32A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
